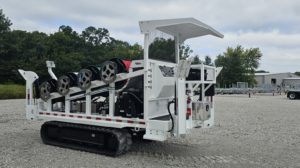

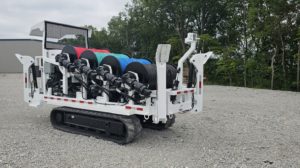

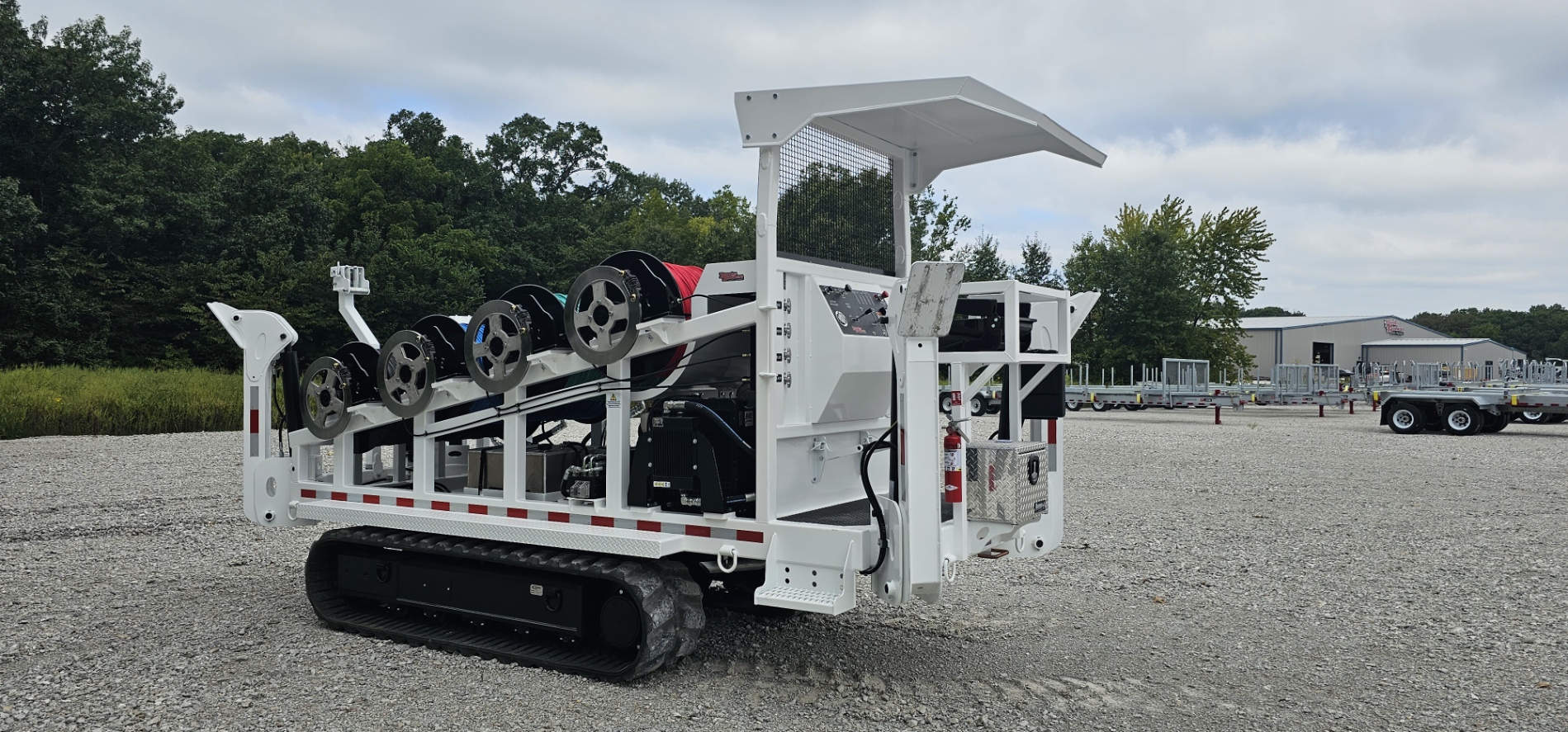

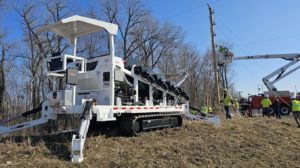

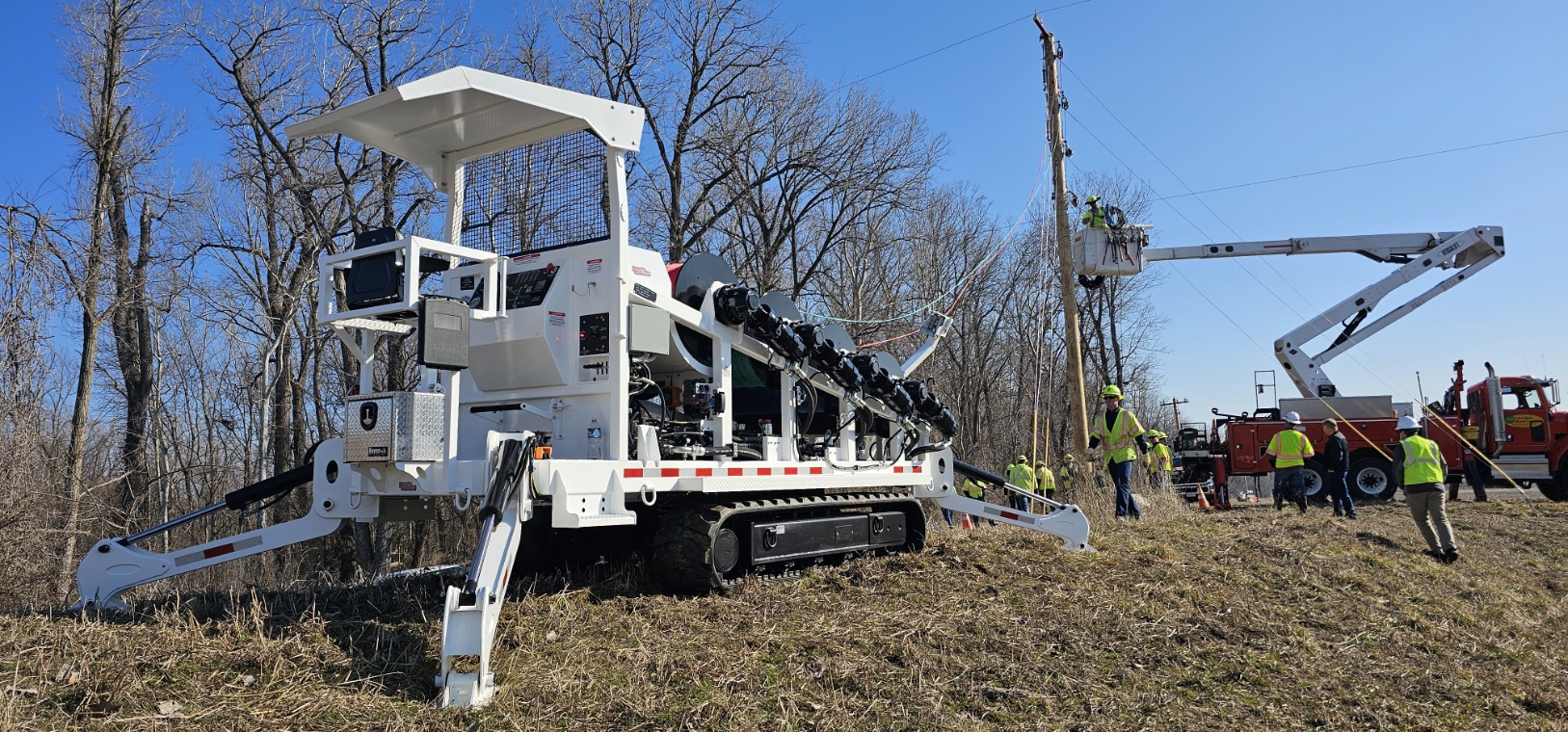

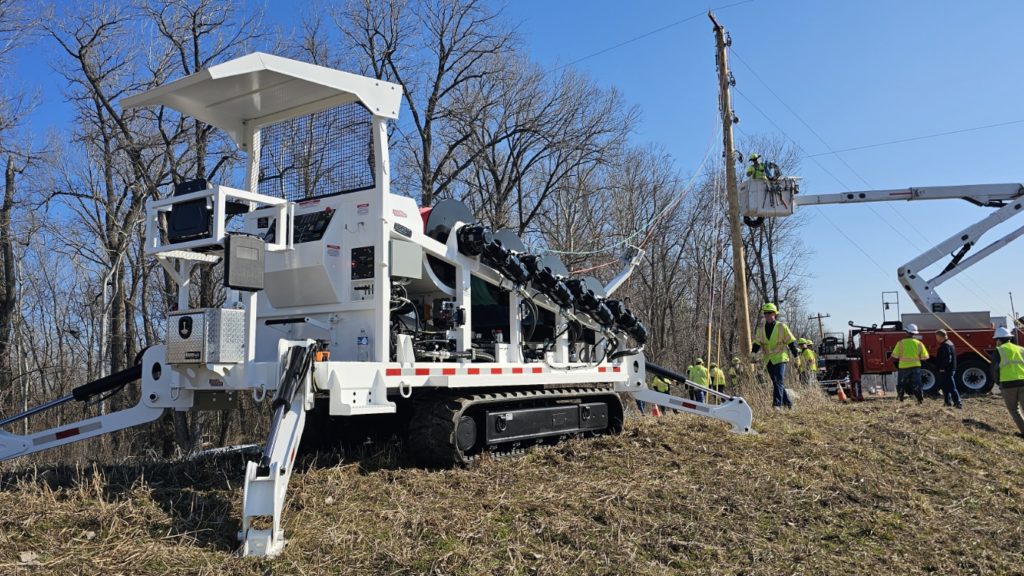

4DP 3500 Track
UNIT PERFORMANCE
Rated Line Pull: 3,500 lbs. full drum (quality tested at 500 lbs. above rated capacity)
Line Speed: 3-4 MPH avg.

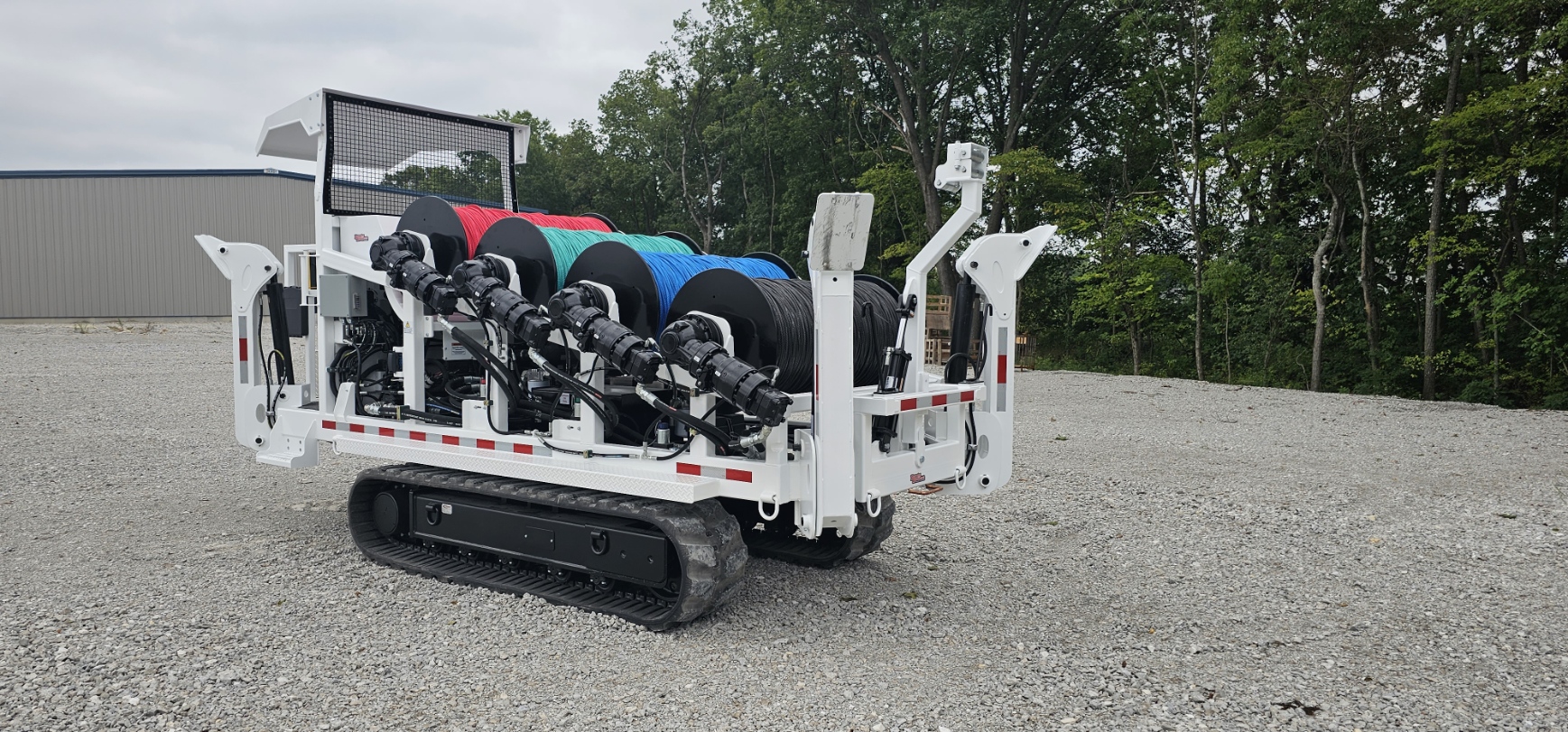

DRUM
Quantity: 4
Containing 10,500′ each of 3/8″ diameter Sampson Amsteel Blue pulling rope
Minimum Breaking Strength: 17,600 lbs.
20” stainless steel pay out brakes controlled from operator’s station
Rope Hangers mounted on each end of the level wind
Roll-up tarp for protecting rope from weather
LEVELWIND
Hydraulically actuated, semi-automatic with variable speed control
POWER TRAIN/HYDRAULICS
YANMAR 4TNV88C – 47.6HP @ 3000 RPM – EPA TIER 4 FINAL diesel engine
Fuel capacity: 18 gal
Fully hydrostatic drive pump – capable of 34 gpm
37 Gallon hydraulic reservoir
Each drum is directly driven by a planetary gearbox
A spring applied hydraulic released safety brake is incorporated into each drive assembly
A mechanical disconnect is located at each drive for the deployment of the pulling rope
All pulling and tensioning forces are fully hydraulic, No chain/Sprocket.

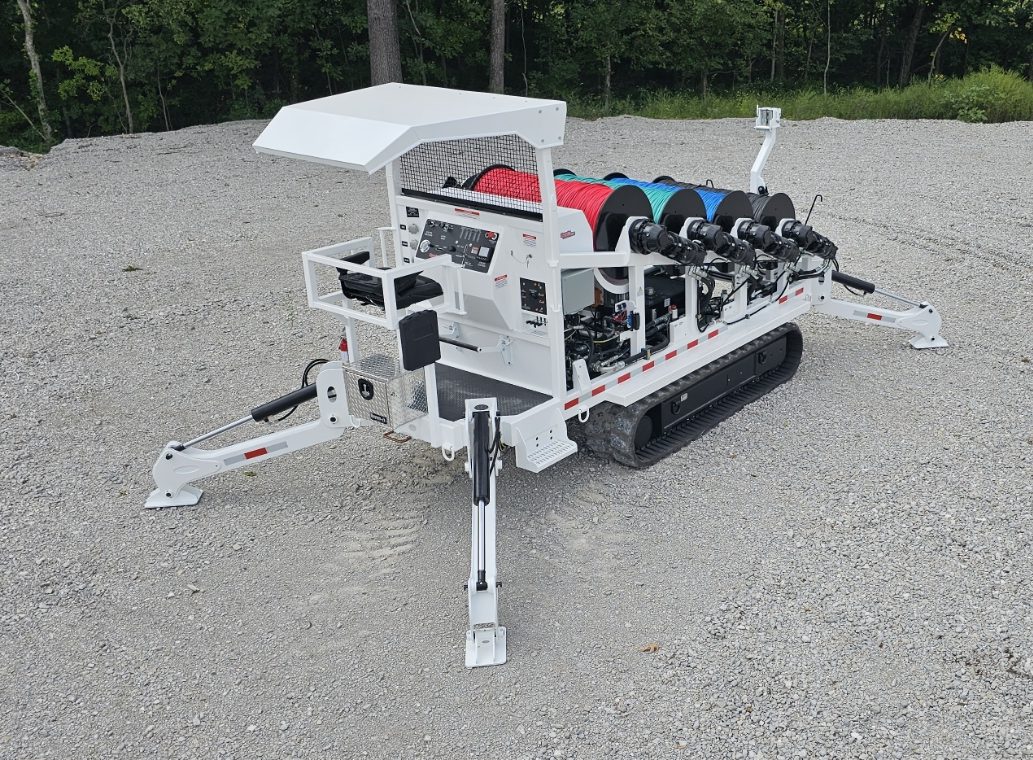

OPERATOR/SAFETY FEATURES
Spring applied hydraulic pressure released safety brake at each drum
All unit operator controls are located at the operator’s station, off of ground
Operator Platform includes: operator’s seat, safety enclosure rails, and safety screen
Full overhead canopy
3-Points of contact access steps to operator’s station
Non-Slip Coating applied to operator’s deck
(2) Grounding Lugs mounted each side of unit
Onboard fire extinguisher located near operator’s station
PRODUCT DIMENSIONS
Overall Length: 16’
Overall Width: 77”
Overall Height (to top of Canopy) = 9’ 6”
Unit Curb Weight: 15,000 lbs.
TRACK CARRIER
Nachi 5B HT Compact Hydraulic planetary drive motors with two speeds and internal parking brake
450 x 82 x 71 LS Bridgestone Black Tracks
23” Track height from Ground
Hardened idlers, spring loaded forged tensioning idlers and through hardened 4140 drive sprockets
WIRELESS REMOTE CONTROL
Joystick track controls w/sensitivity and high/low modes
Emergency stop button
Lockable aluminum tread plate toolbox for remote storage with integrated battery charger
Digital display for pairing notifications
MAIN FRAME AND CONSTRUCTION
7” X 3” rectangular steel tube main frame
4” x 3” rectangular steel track mounting tubes
(8) 5/8” ‘D’ rings for optimal machine tie-down

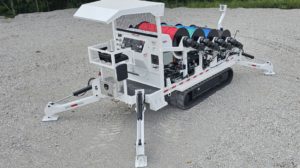

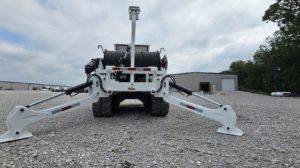

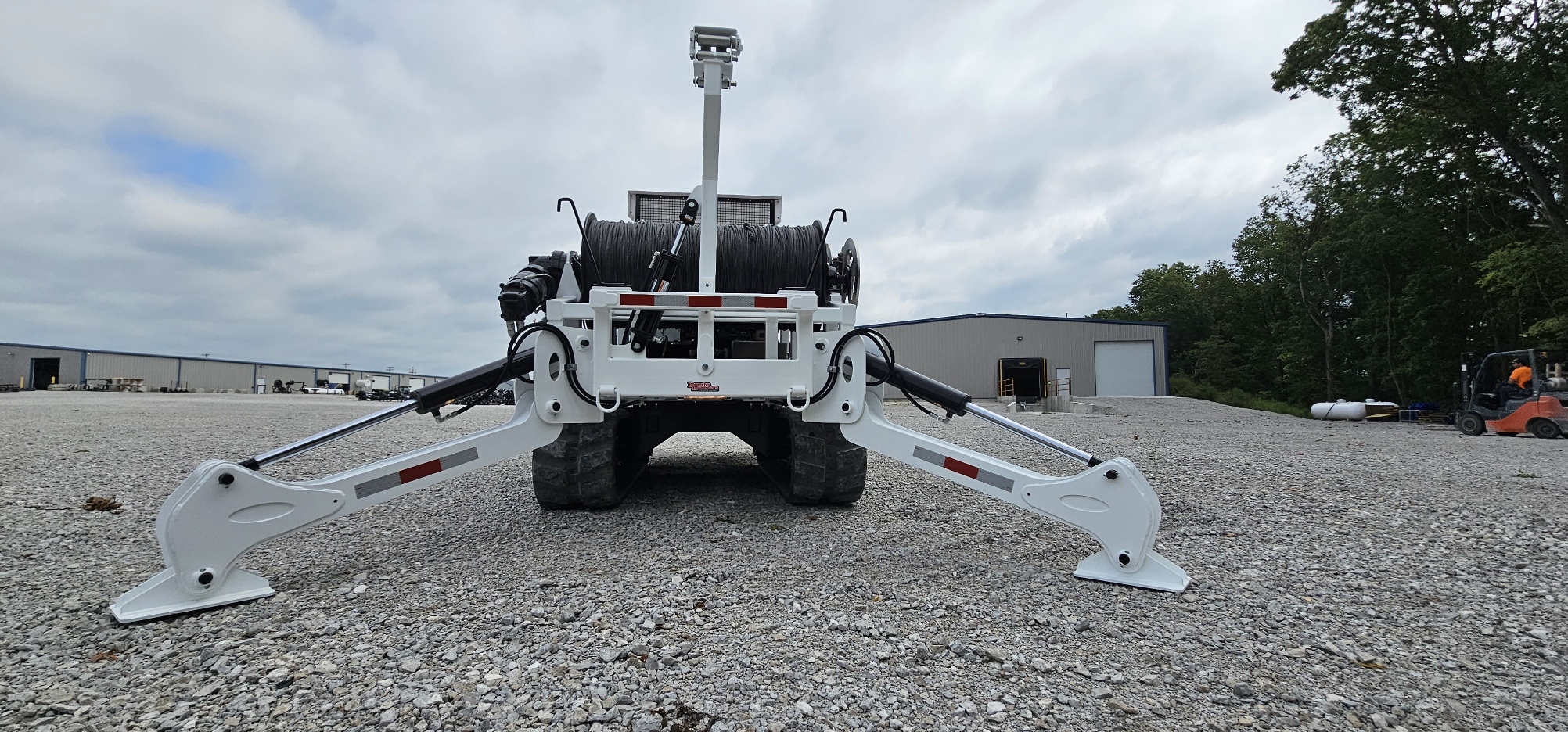

OUTRIGGERS
(4) Fabricated outriggers – one at each corner of the machine
Fully hydraulic with dual locking valves
9” X 14” resting pads
Constructed from .25” steel plate with 3.5” bore cylinders
Independently controlled at operator’s station
PAINT
Unit is completely steel grit blasted
Seams are sealed with a paintable caulk
Rust prohibitive two-part epoxy polyamide primer
Two-part acrylic polyurethane topcoats
All attachments painted before assembly and installed with serviceable fasteners

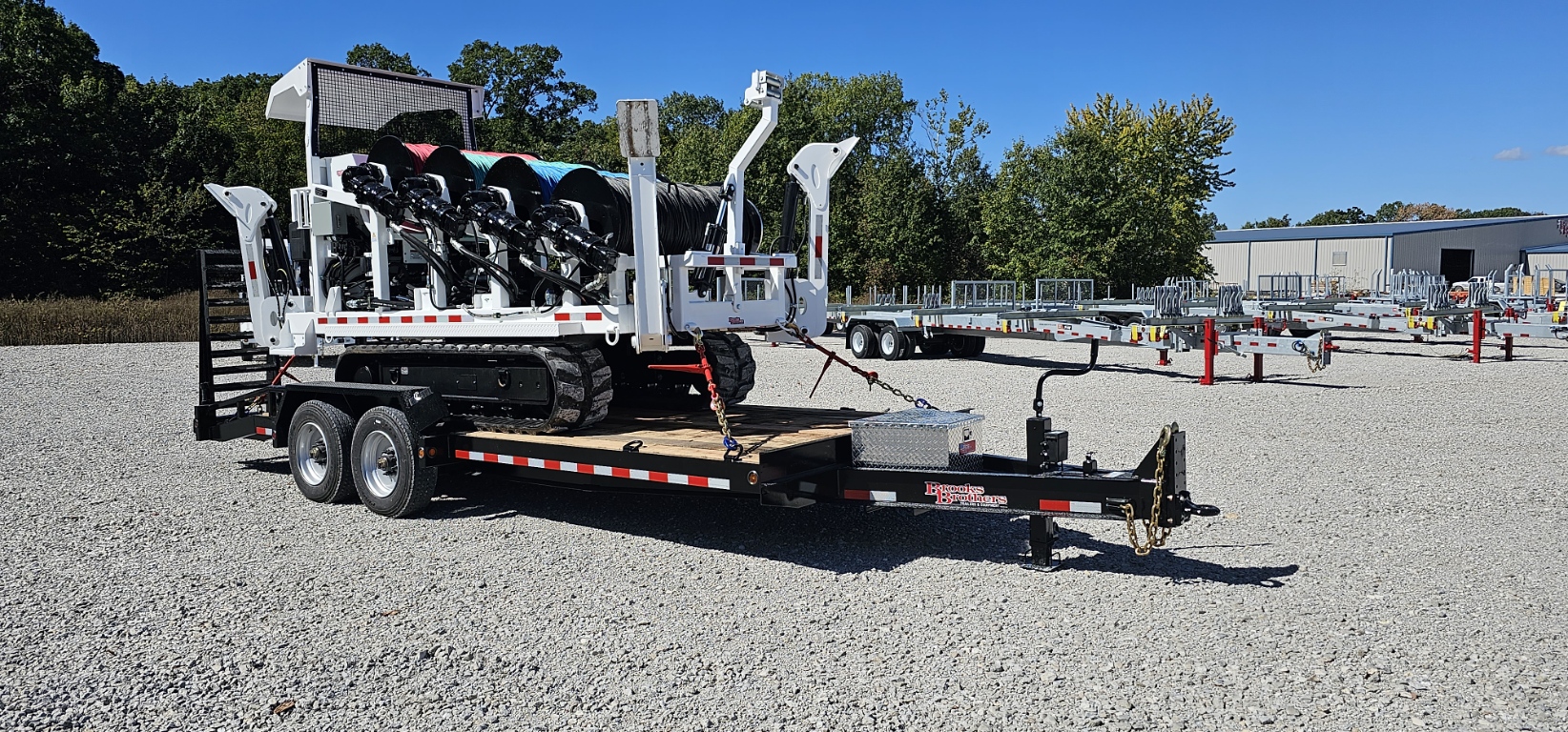

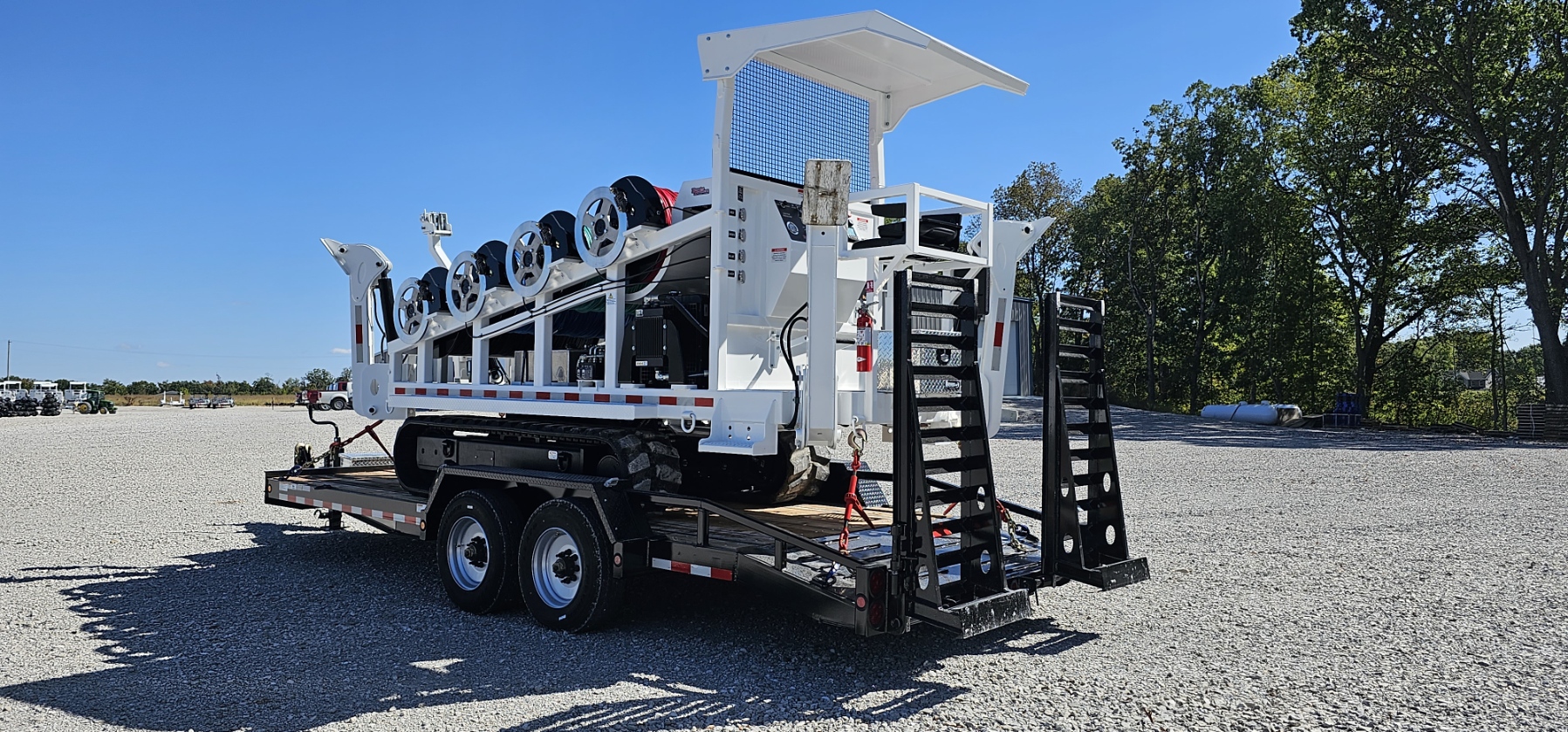

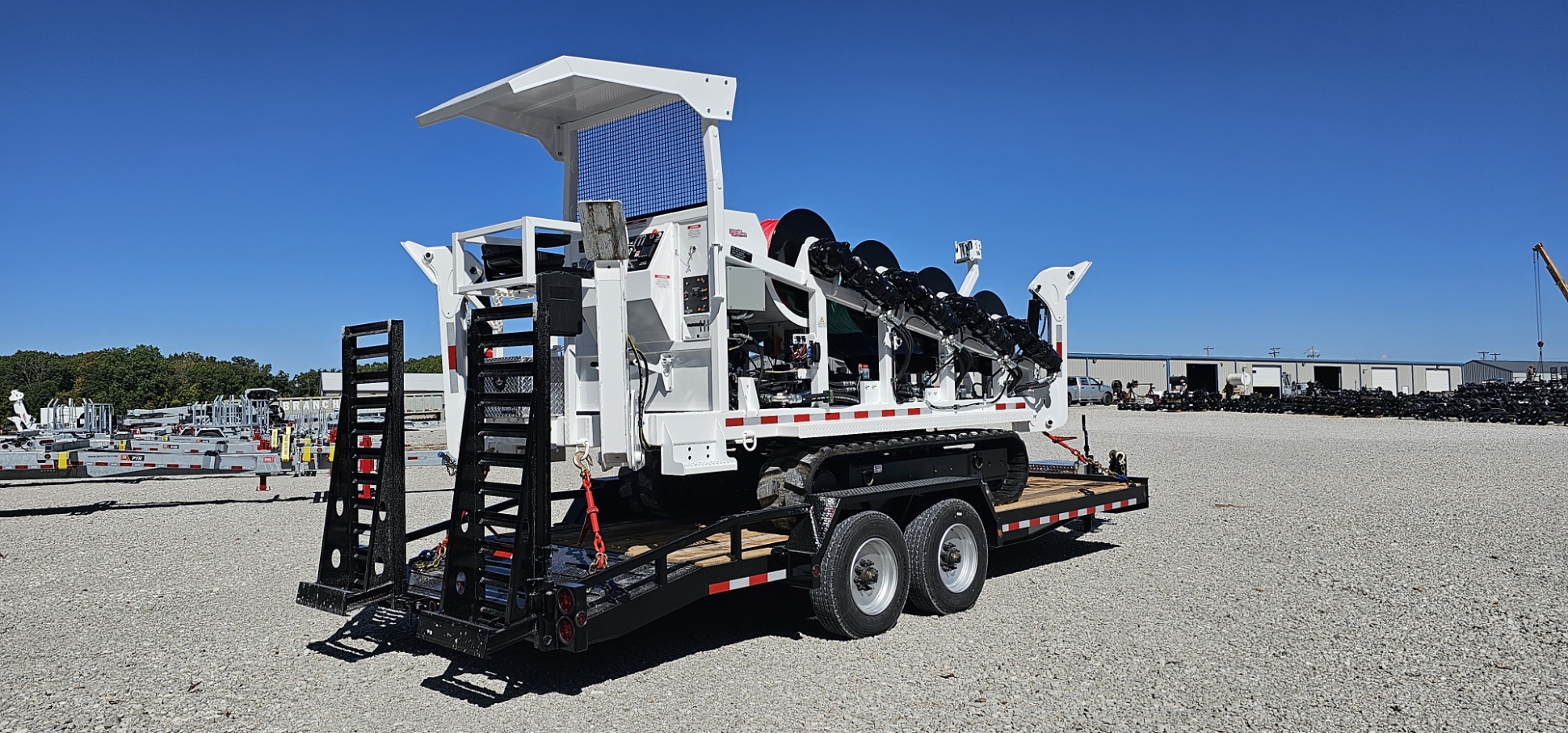

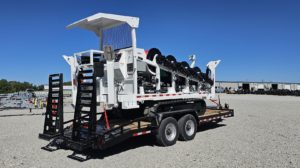

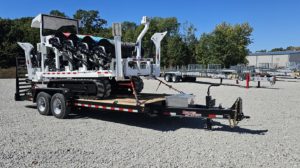

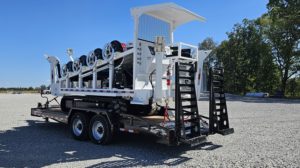

TRANSPORT TRAILER
Track machine comes complete with a heavy-duty, low profile equipment trailer:
18’ deck length
23” deck height
67” A-Frame
80” between fenders
35” beavertail and 66” long ramps for extremely low load incline
23,000# GVWR
Accessories included: (4) 360 degree ratcheting tie-down swivel binders, machine entry guides, tool box mounted in A-frame
