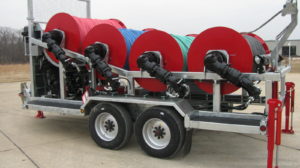

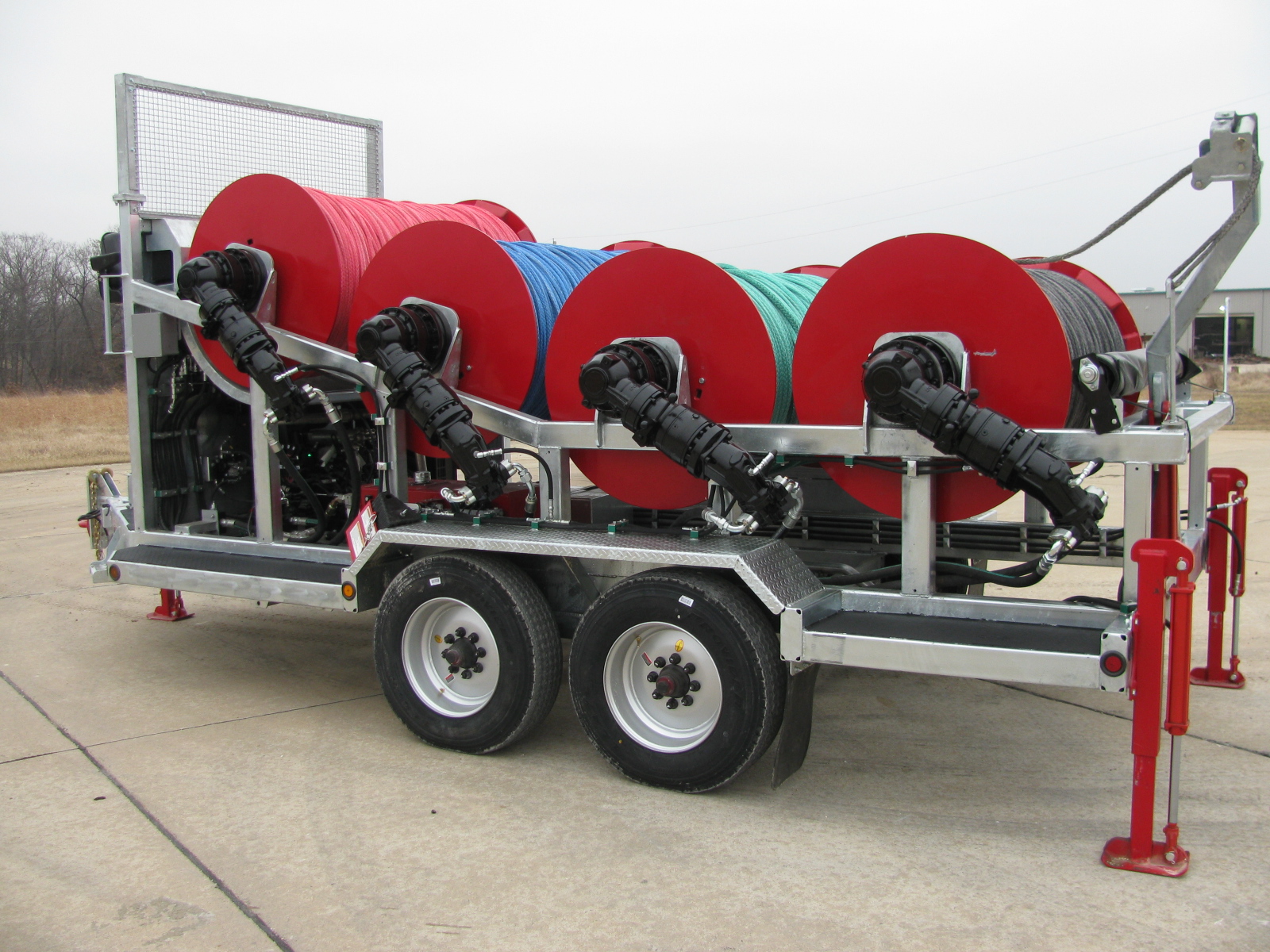

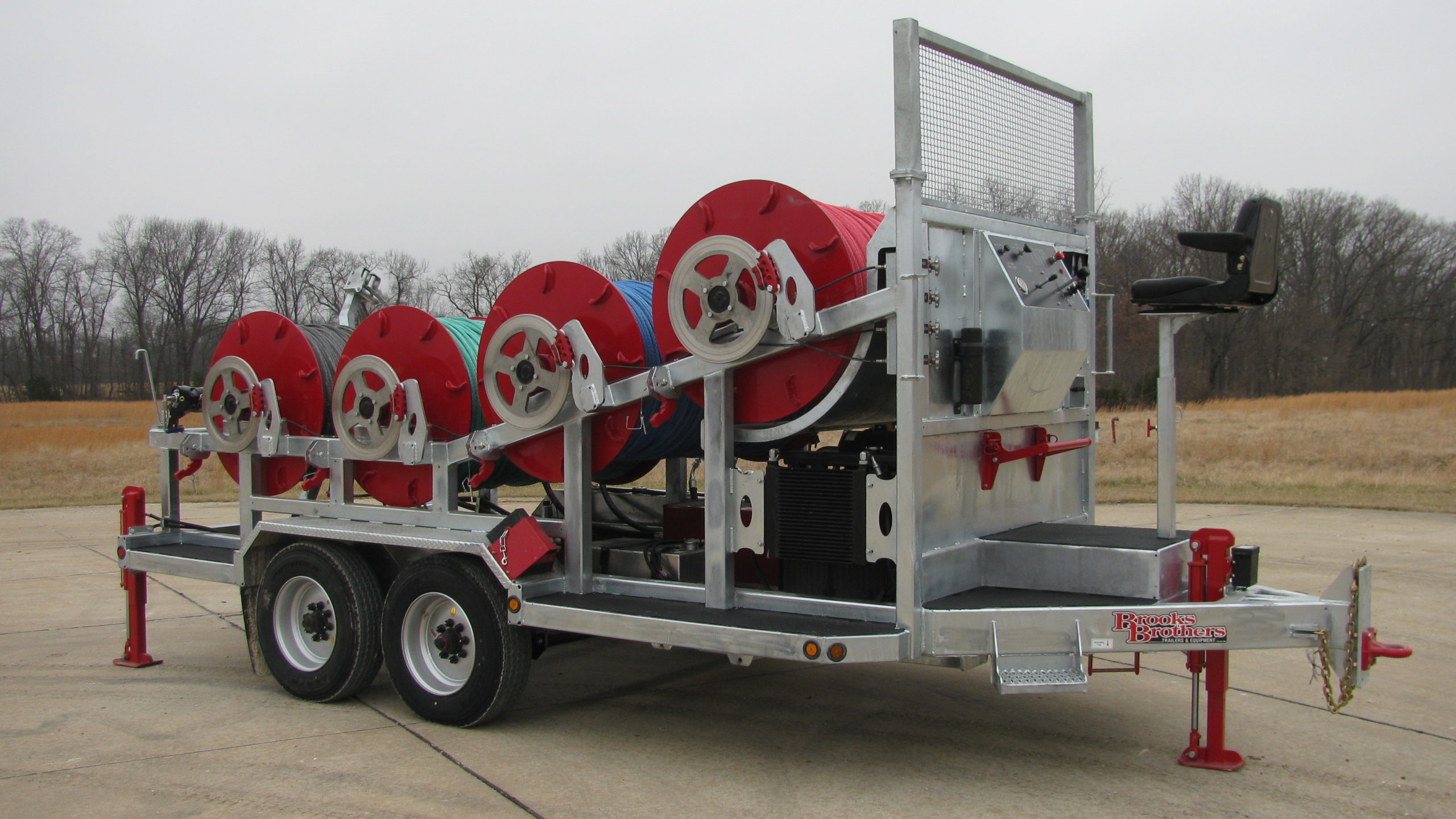

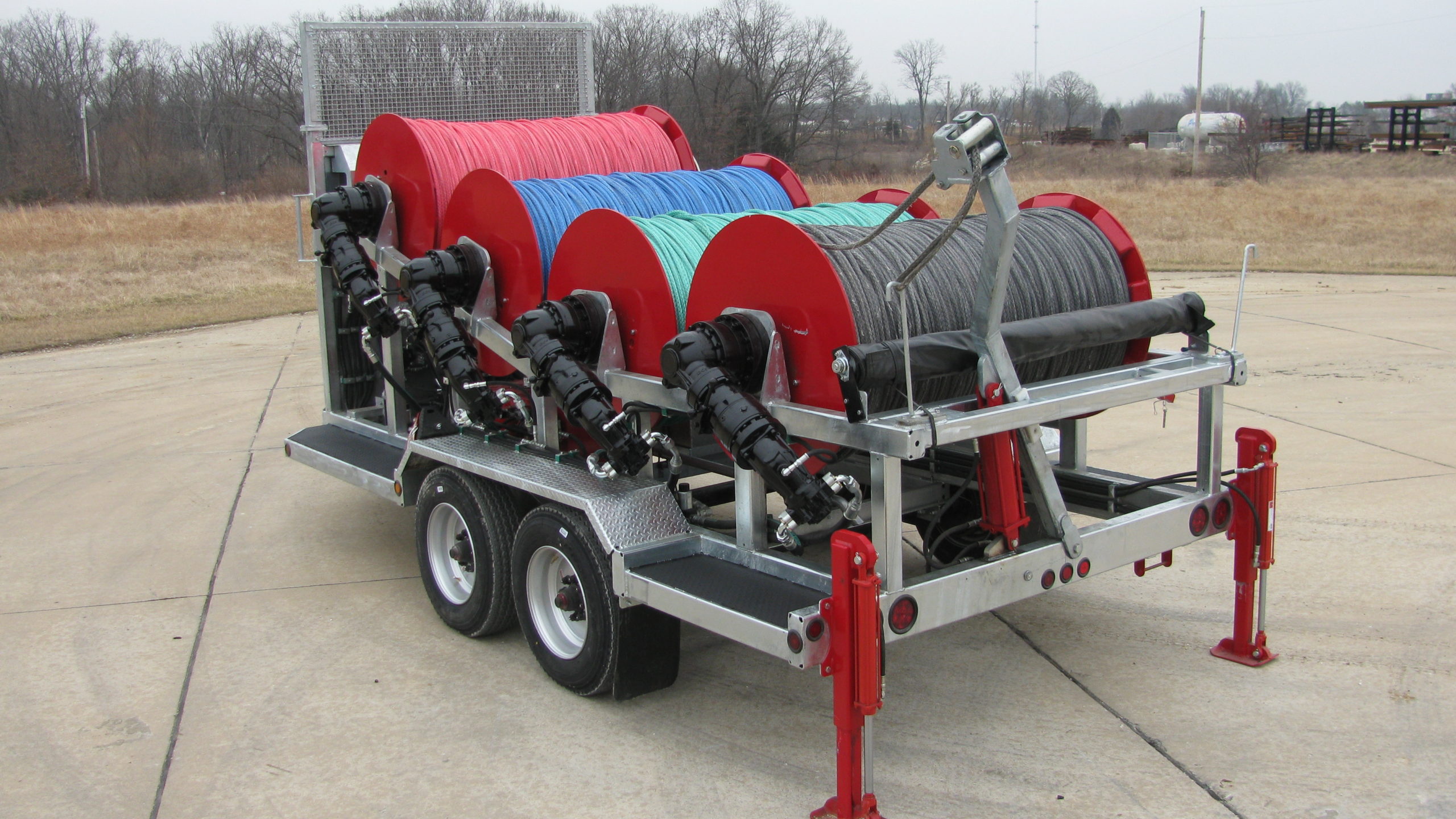

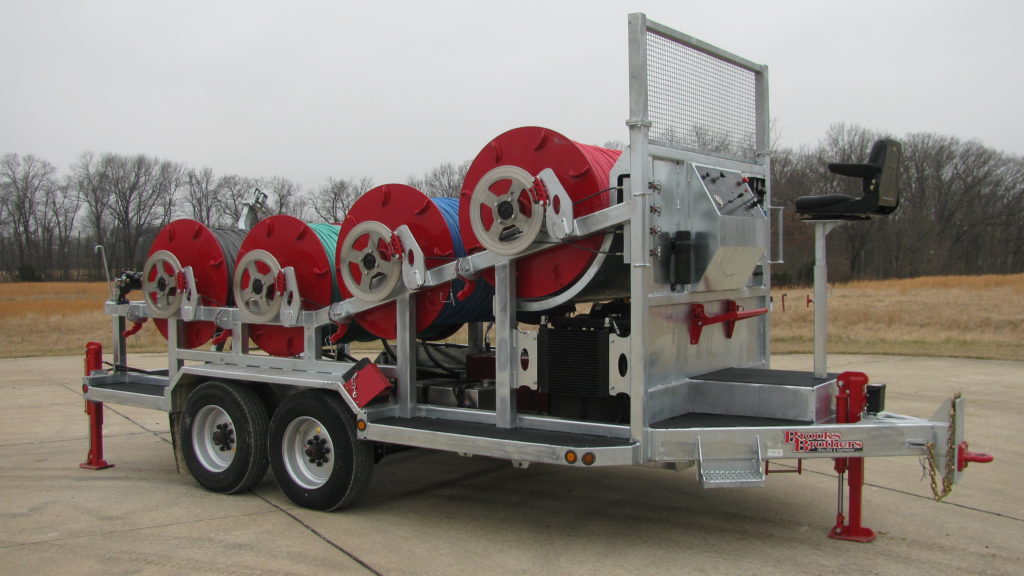

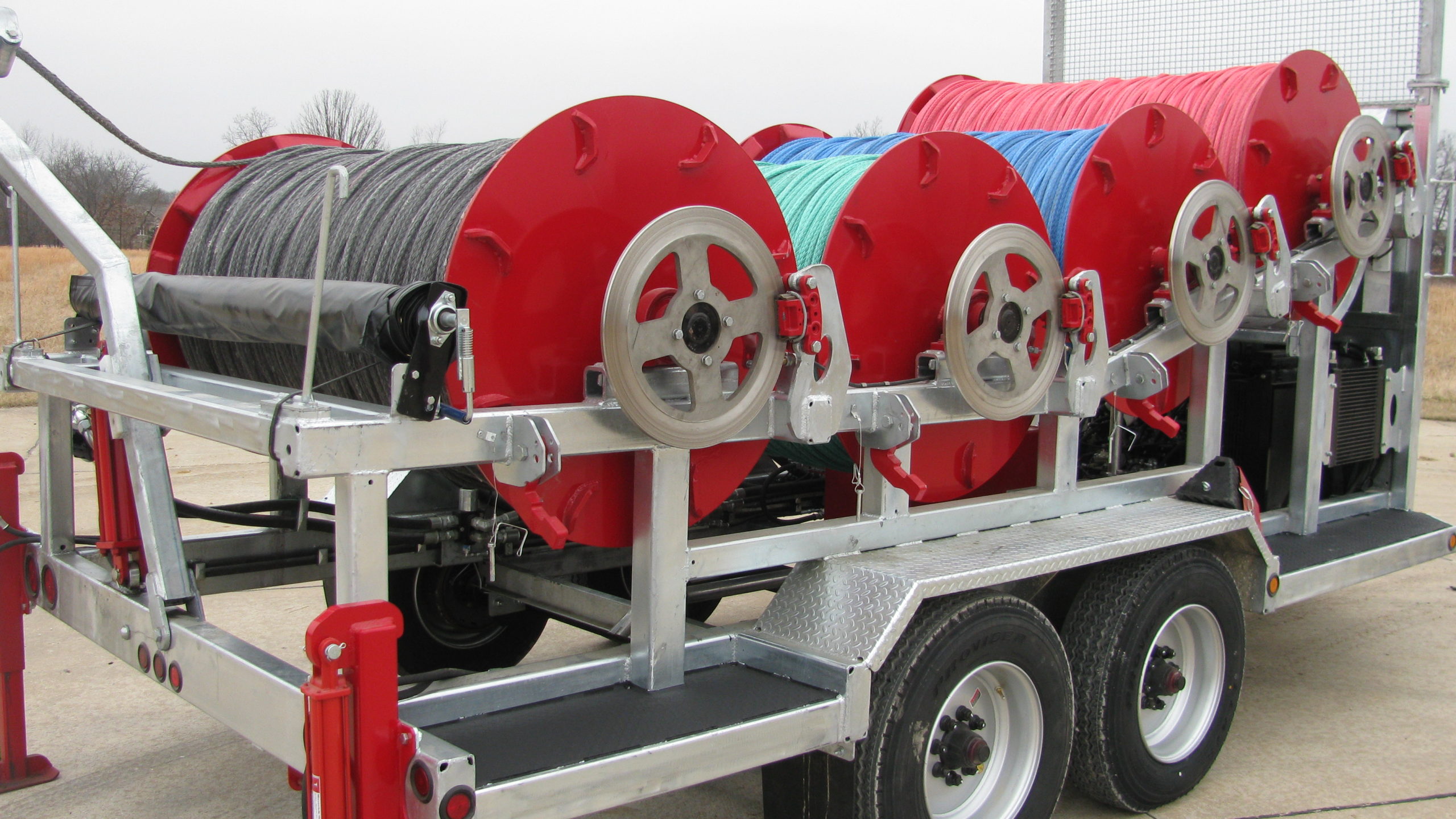

4DP-4000 Planetary Drive
4DP4K-8KE Diesel
GVWR: 18,800 lbs.
Curb Weight: 18,140 lbs.
Tongue Weight: 2,100 lbs.
UNIT PERFORMANCE
RATED LINE PULL: 4,000 LBS. FULL DRUM
LINE SPEED: 2-3 MPH
REAL CAPACITY
12,000 FT. OF 5/8″ DIAMETER 12 STRAND SINGLE BRAID PULLING ROPE
LEVELWIND
HYDRAULICALLY ACTUATED WITH A SINGLE LEVER/DETENTED CONTROL VALVE, AND ADJUSTABLE NEEDLE VALVE FOR SPEED CONTROL
POWER TRAIN / HYDRAULICS
CLOSED LOOP HYDRAULIC SYSTEM
PRESSURE COMPENSATING PUMP
OPERATOR / SAFETY FEATURES
SPRING APPLIED HYDRAULIC PRESSURE RELEASED SAFETY BRAKE
ALL UNIT OPERATOR CONTROLS ARE LOCATED AT THE OPERATOR’S STATION, OFF GROUND
OPERATORS SEAT
SAFETY SCREEN
16” OVERSPIN BRAKES FOR ROPE PAYOUT – HYDRAULIC OR MANUAL OPERATION
(2) GROUNDING LUGS MOUNTED FRONT, EACH SIDE
EACH DRUM CAN BE INDEPENDENTLY LOCKED DOWN EITHER BY HYDRAULIC PRESSURE AT THE CONTROL PANEL OR MECHANICALLY AT GROUND LEVEL

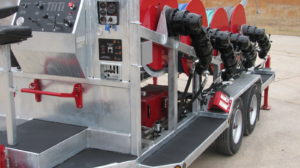

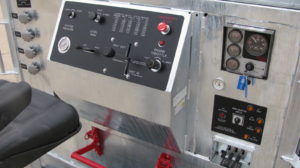

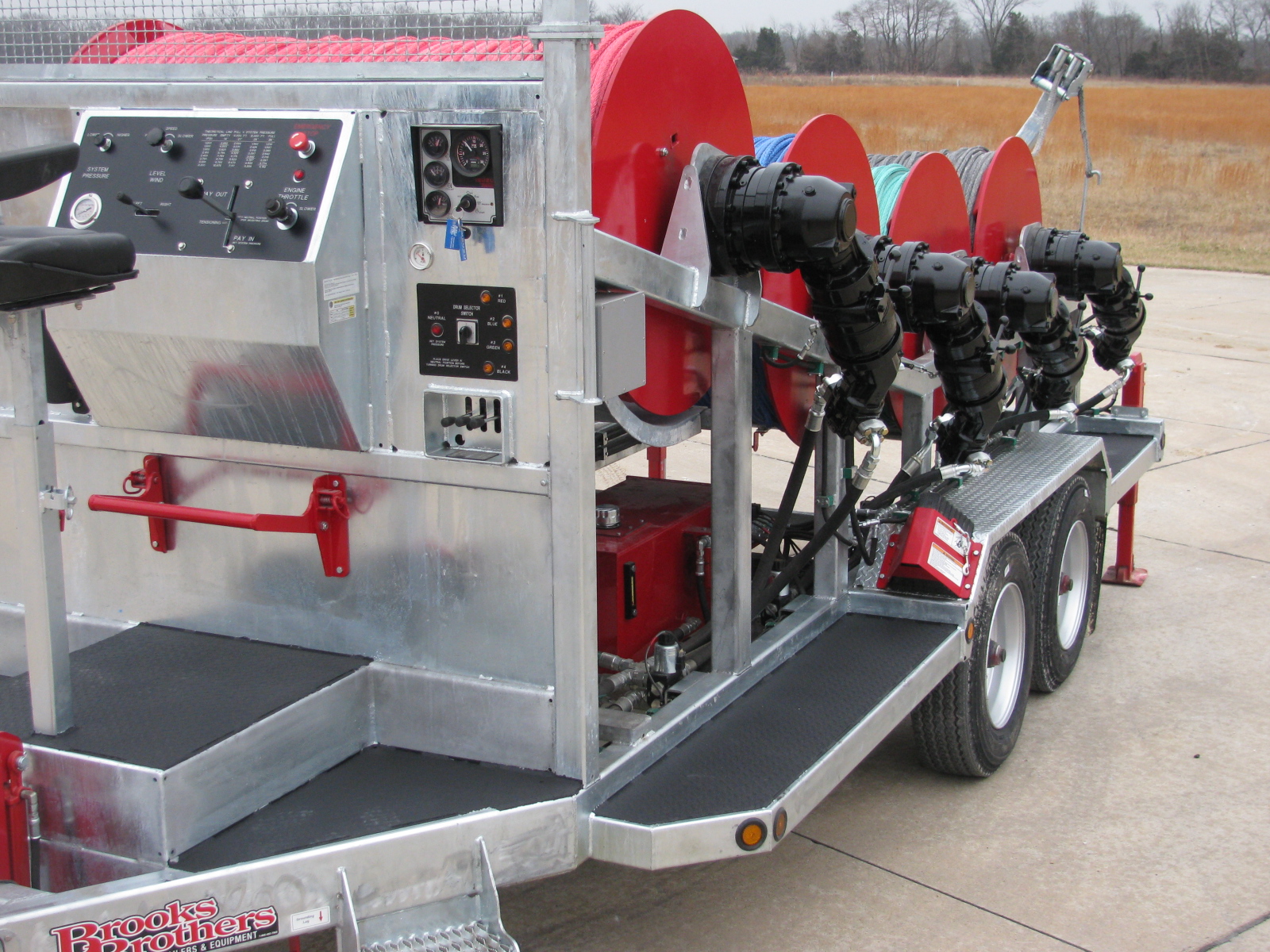

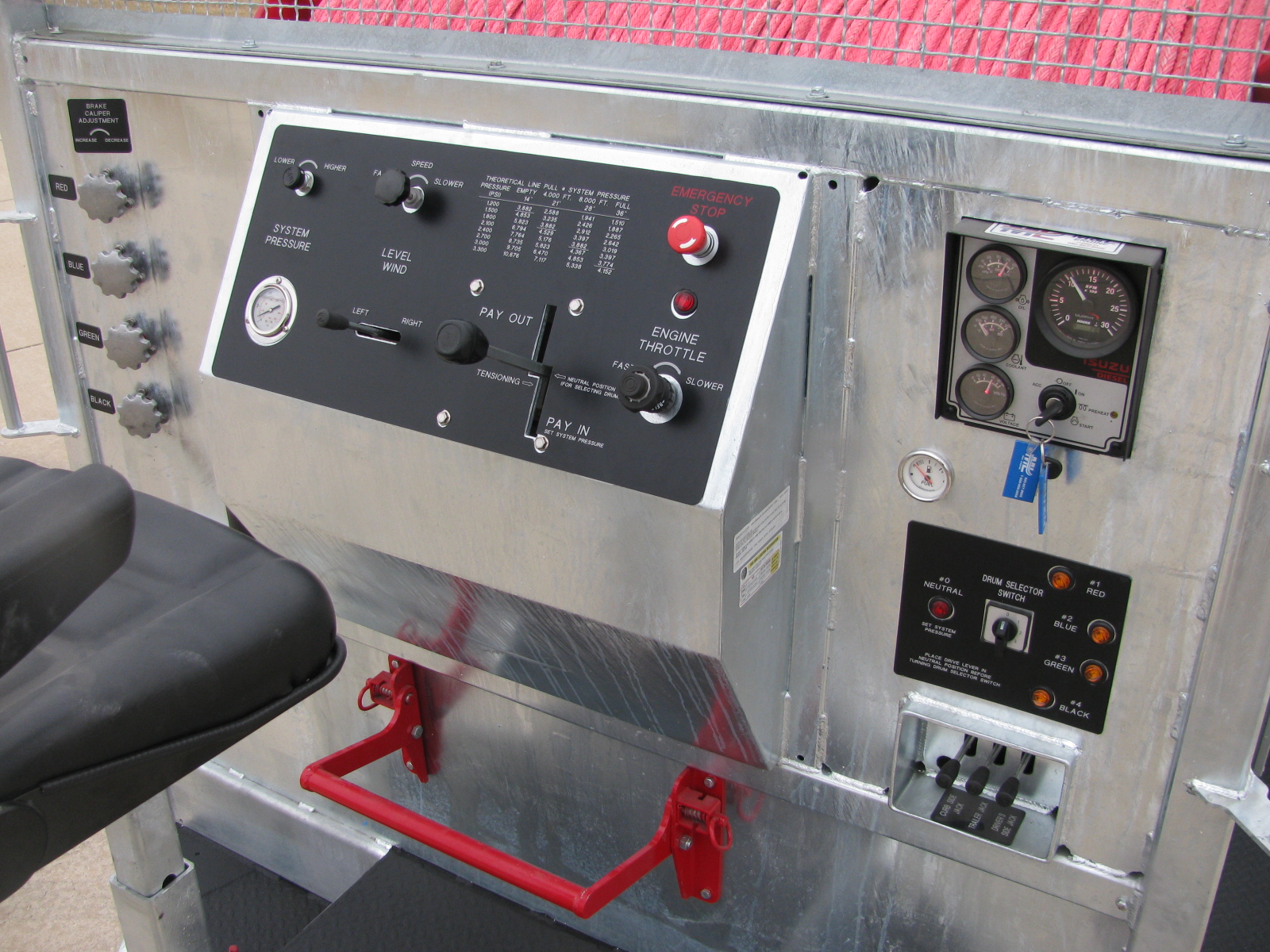

CONTROL PANEL
ELECTRIC START IGNITION SWITCH
ENGINE THROTTLE ADJUSTMENT
TACHOMETER
HOUR METER
LOW OIL AND PRESSURE LIGHTS
LEVER ACTUATED DIRECTION AND SPEED CONTROL
EMERGENCY STOP BUTTON FOR ENGAGEMENT OF HYDRAULIC SAFETY BRAKE
CAPACITY & DIMENSIONS
14,000 LBS. GVWR – CALCULATED AT 15% WEIGHT TRANSFER TO TOW VEHICLE
OVERALL LENGTH 15’ 8”
A-FRAME 5’
OVERALL WIDTH 101”
WEIGHT APPROX. 6,000 LBS.
AXLES
8,000 LBS.LEAF SPRING AXLES
12” X 2” ELECTRIC BRAKES ON ALL WHEELS
(4) ST235/80R16 LR-E TIRES
(4) 16” X 6” SINGLE WHEELS (8 HOLE ON 6 ½” BOLT CIRCLE)
(1) PAIR MUD FLAPS
TONGUE, HITCH & JACK
5” X 3” TUBULAR STEEL A-FRAME
6 – POSITION ADJUSTABLE HITCH PLATE ( 14” THROUGH 27” )
2 1/2” LUNETTE EYE. 35,000 LBS. CAPACITY
3/8” X 36” L GALVANIZED SAFETY CHAINS WITH SAFETY HOOKS AND ANCHOR SHACKLES
A-FRAME MOUNTED HYDRAULIC JACK
MAINFRAME
5” X 3” TUBULAR STEEL MAIN FRAME
5” X 3” TUBULAR STEEL CROSSMEMBERS AT FRONT, REAR OF BED
3” C-CHANNEL CROSSMEMBERS ON 24” CENTERS
(2) REAR HYDRAULIC STABILIZING JACKS
(1) PAIR WHEEL CHOCK HOLDERS WITH RUBBER WHEEL CHOCKS
TOOL BOX
14” H X 13” D 78” L
FABRICATED 1/8” SMOOTH STEEL INTEGRATED CONSTRUCTION
LIFT-UP LID WITH SECURITY HASP FOR PADLOCK
12 VOLT WIRING SYSTEM
ICC & DOT APPROVED LED LIGHTS
SEALED BEAM RUBBER MOUNTED STOP, TURN, TAIL AND MARKER LIGHTS
S.O. CABLE WIRING LOOM, CLAMPED ON 16” CENTERS WITH RUBBER LINED CLAMPS
WIRING LOOM TERMINATED IN JUNCTION BOXES
CONNECTIONS SOLDERED AND SEALED WITH HEAT SHRINK TUBING
32” PIGTAIL WITH 6-WAY OR 7-WAY STYLE ELECTRICAL PLUG
PAINT
TRAILER IS COMPLETELY STEEL GRIT BLASTED
SEAMS ARE SEALED WITH PAINTABLE CAULK
RUST PROHIBITIVE TWO-PART EPOXY POLYAMIDE PRIMER
TWO-PART ACRYLIC POLYURETHANE TOPCOATS
ALL ATTACHMENTS PAINTED BEFORE ASSEMBLY AND INSTALLED
WITH SERVICEABLE FASTENERS
