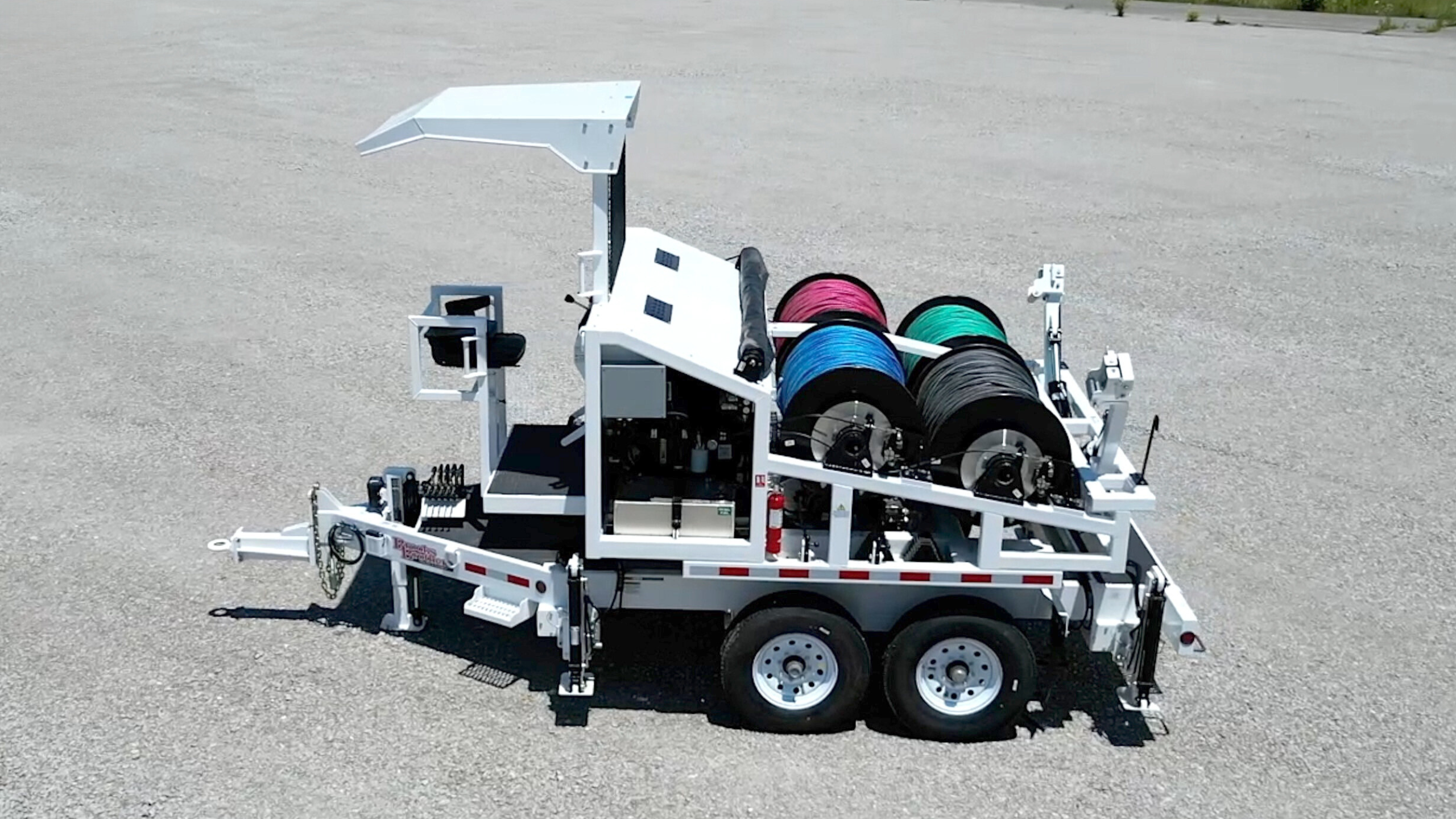

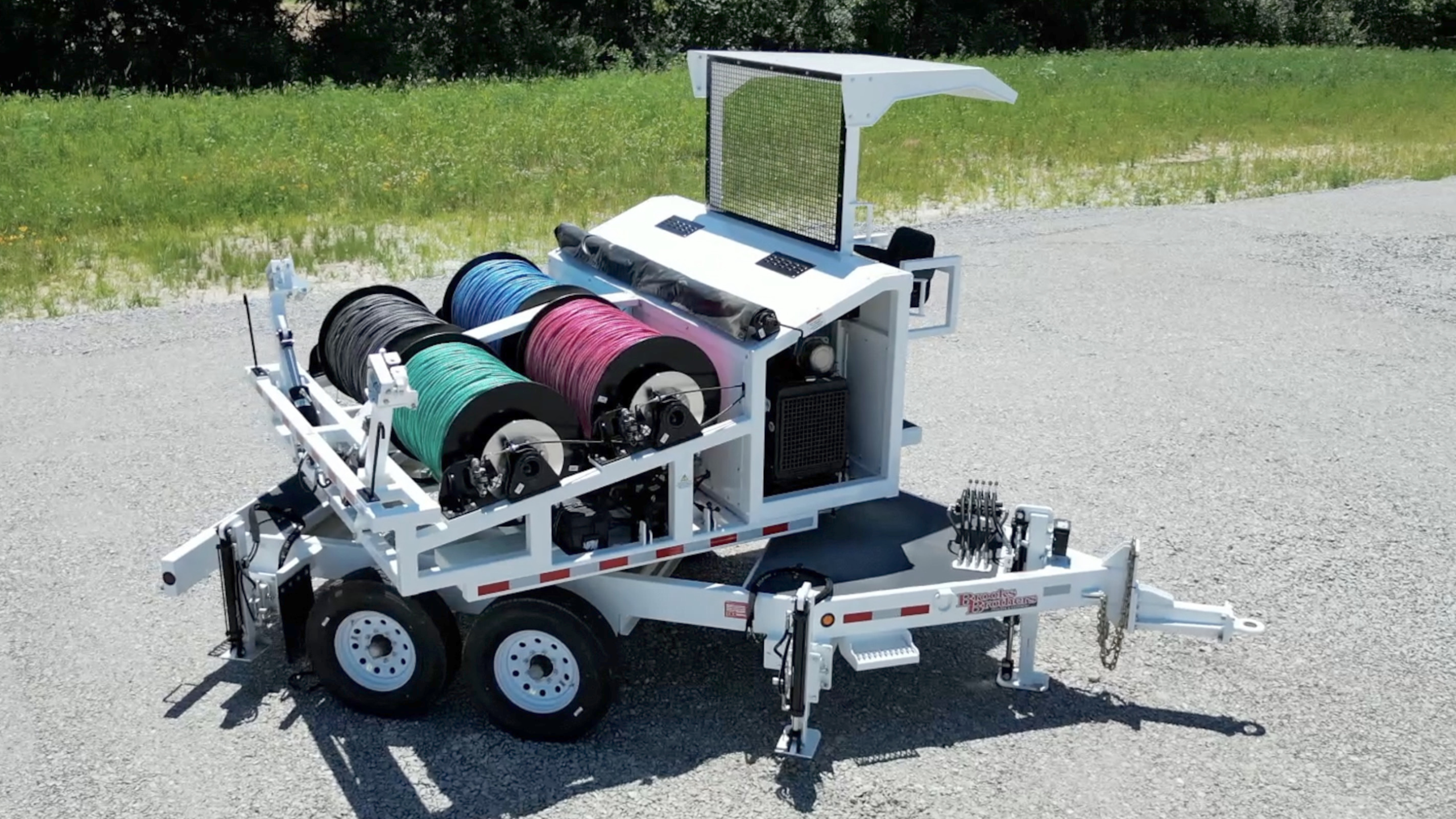

4DP-TRT-2500 Turret Puller
UNIT PERFORMANCE
RATED LINE PULL: 2,500 LBS. FULL DRUM (WITH A 500# TESTED SAFETY FACTOR)
LINE SPEED: 3-4 MPH AVG.
DRUM

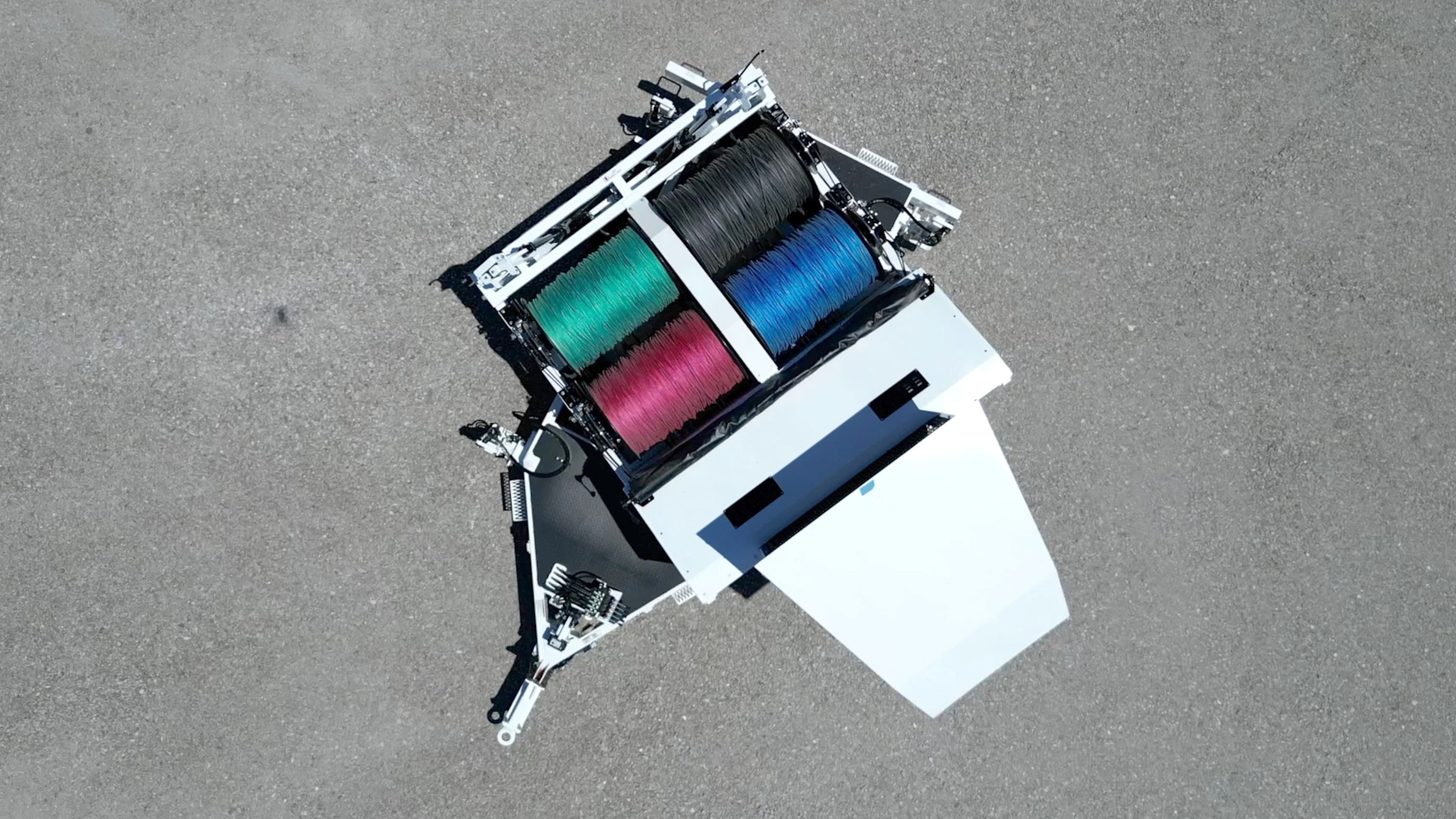

QUANTITY: (4) in S x S Configuration
Containing 6,000′ each of 12 Strand Single Braid Pulling Rope
TANDEM LEVELWINDS
HYDRAULICALLY ACTUATED WITH VARIABLE SPEED CONTROL OPERATED FROM CONTROL PANEL
*UPPER DRUM PLATFORM AND OPERATOR’S STATION ROTATES ON A 360 DEGREE HYDRAULIC POWERED SLEWING RING. ALL HYDRAULIC LINES ARE PLUMED INTERNALLY THROUGH A ROTARY UNION MOUNTED UNDERNEATH THE TURRET BASE. NO LINE DISCONNECTS REQUIRED. HYDRAULIC TURRET IS ACTUATED AT THE OPERATOR’S CONTROL PANEL.
POWER TRAIN / HYDRAULICS
YANMAR – 35.1HP @ 3000 RPM – TIER 4 Final DIESEL ENGINE
FUEL CAPACITY : 18 GAL.
FULLY HYDROSTATIC DRIVE PUMP
EACH DRUM IS EQUIPPED WITH ITS OWN DIRECT DRIVE HYDRAULIC MOTOR THAT IS INLINE WITH A HYDRAULIC RELEASED SAFETY BRAKE
EACH DRUM IS SELECTED AND RELEASED VIA ROTARY STYLE SELECTOR SWITCH LOCATED AT THE OPERATOR’S PANEL
FREE-WHEELING DISCONNECTS ARE LOCATED ON EACH SIDE OF THE MACHINE FOR THE ENGAGEMENT AND DISENGAGEMENT OF THE DRIVE ASSEMBLIES
OPERATOR / SAFETY FEATURES
SPRING APPLIED HYDRAULIC PRESSURE RELEASED SAFETY BRAKE AT EACH DRUM

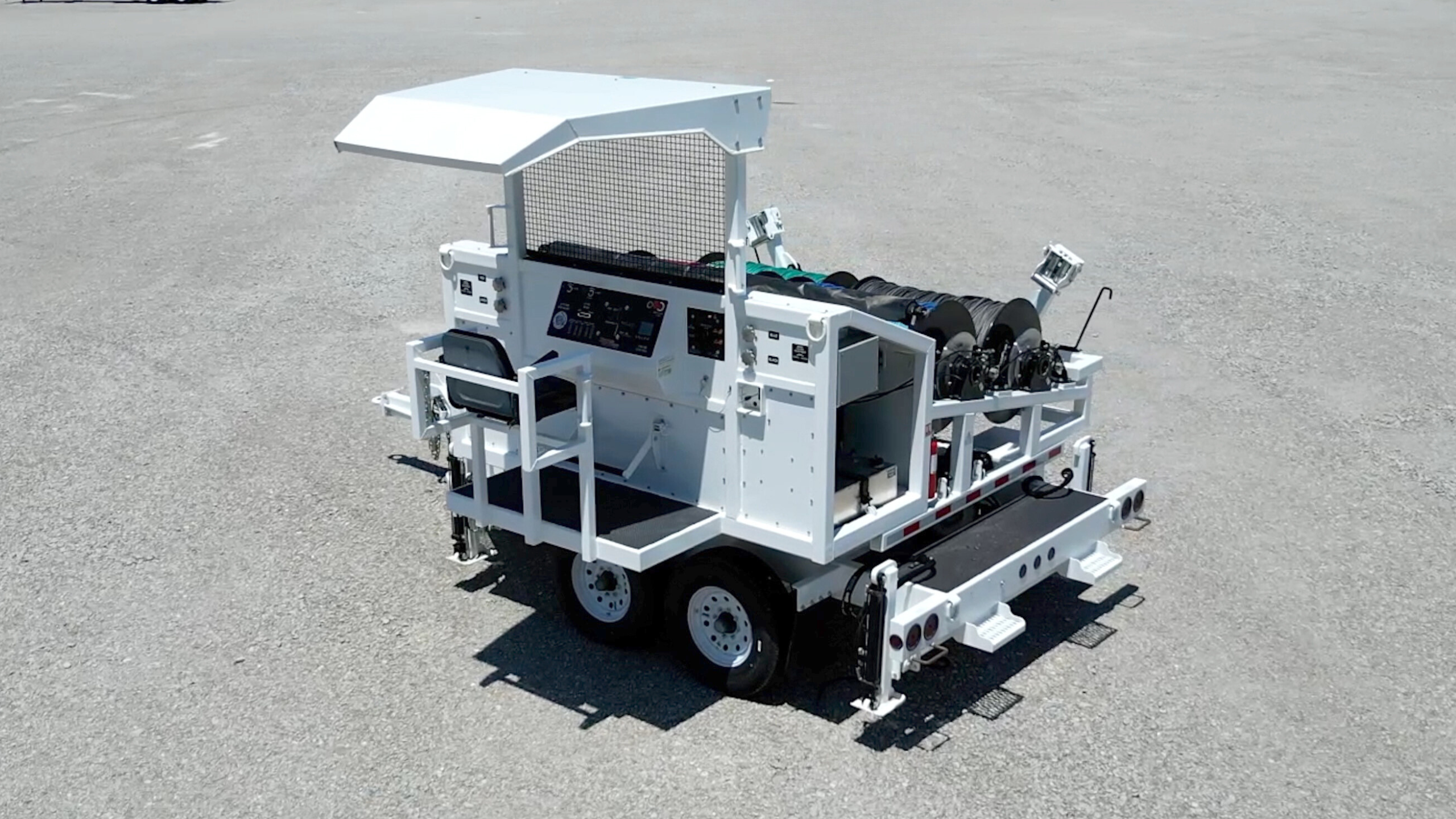

ALL UNIT OPERATOR CONTROLS ARE LOCATED AT THE OPERATOR’S STATION, OFF GROUND
OPERATORS SEAT
SAFETY SCREEN
OVERHEAD CANOPY
16” OVERSPIN PAYOUT BRAKES, OPERATED FROM PANEL
(4) GROUNDING LUGS
TIE DOWN RING AT 4 CORNERS OF MACHINE
ONBOARD FIRE EXTINGUISHER
CAPACITY & DIMENSIONS
17,600 LBS. GVWR – CALCULATED AT 15% WEIGHT TRANSFER TO TOW VEHICLE
OVERALL LENGTH APPROX. 15’
A-FRAME 5’
OVERALL WIDTH 101.5”
WEIGHT APPROX. 14,000 LBS.
JACKS
HEAVY DUTY HYDRAULIC JACK MOUNTED IN A-FRAME
(4) TELESCOPING STABILIZER JACKS – MANUAL SLIDE OUT EXTENSIONS, HYDRAULIC LOWER AND RAISE
DUAL LOCKING VALVES EQUIPPED ON EACH HYDRULIC JACK
AXLES
7,500 LBS. TANDEM DEXTER TORFLEX AXLES
12-1/4” X 2-1/2” ELECTRIC BRAKES ON ALL WHEELS
(4) 235/85R16 LR-G TIRES
(4) 16” X 6” SINGLE WHEELS (8 HOLE ON 6 ½” BOLT CIRCLE)
(1) PAIR MUD FLAPS
