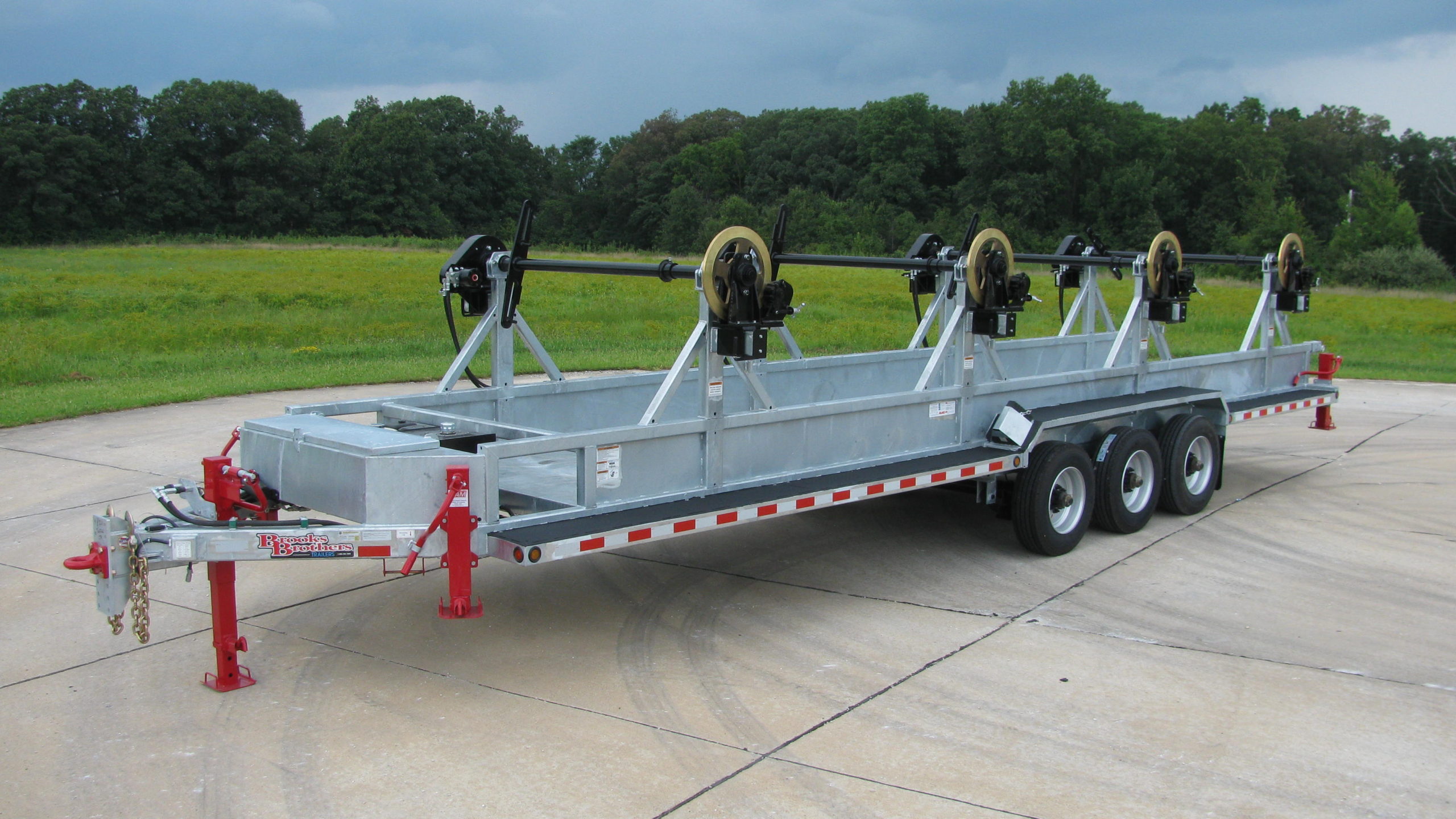

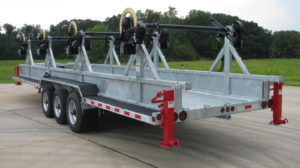

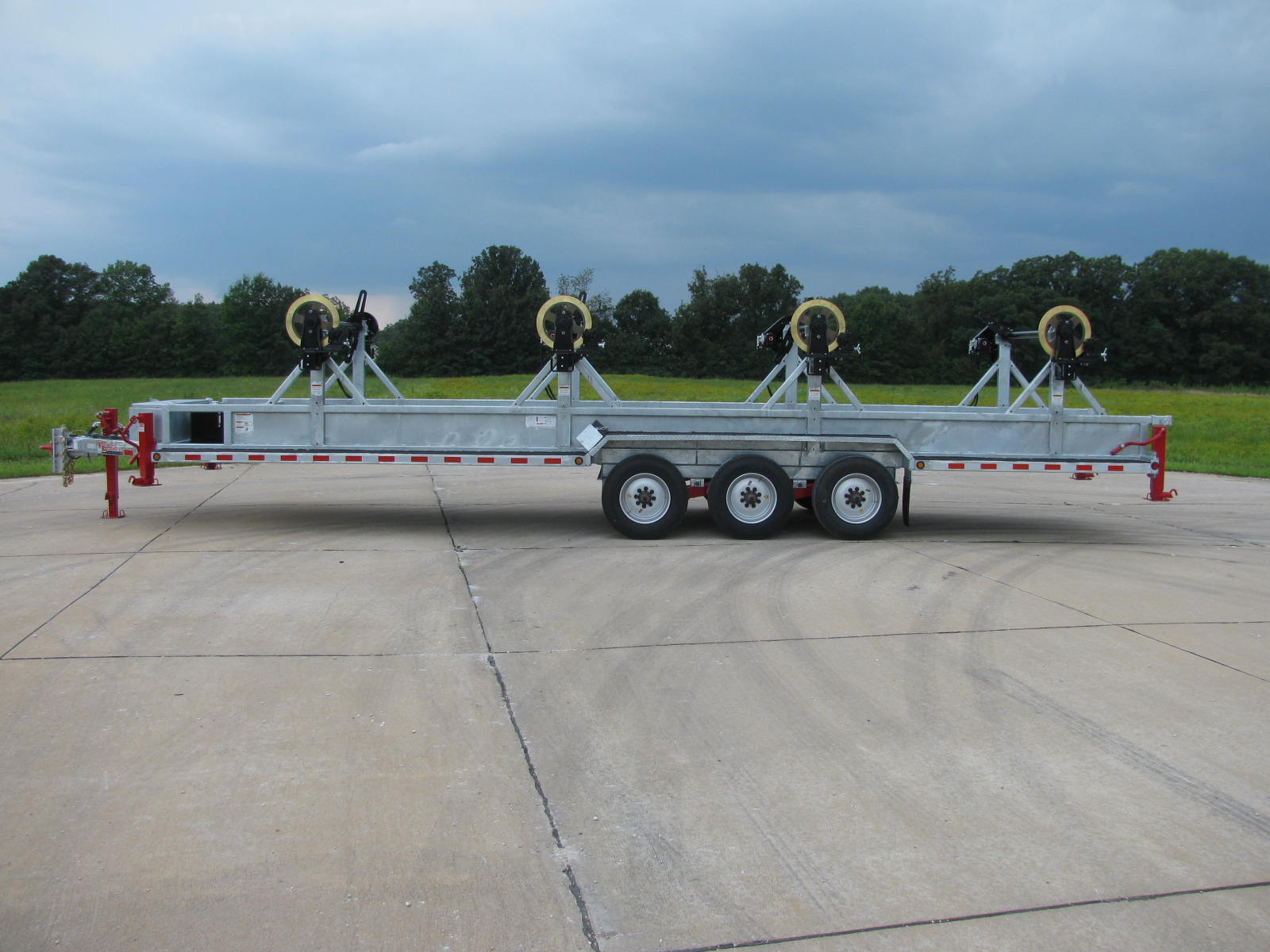

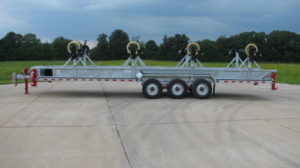

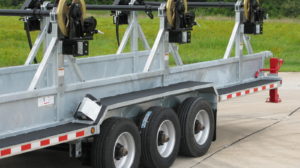

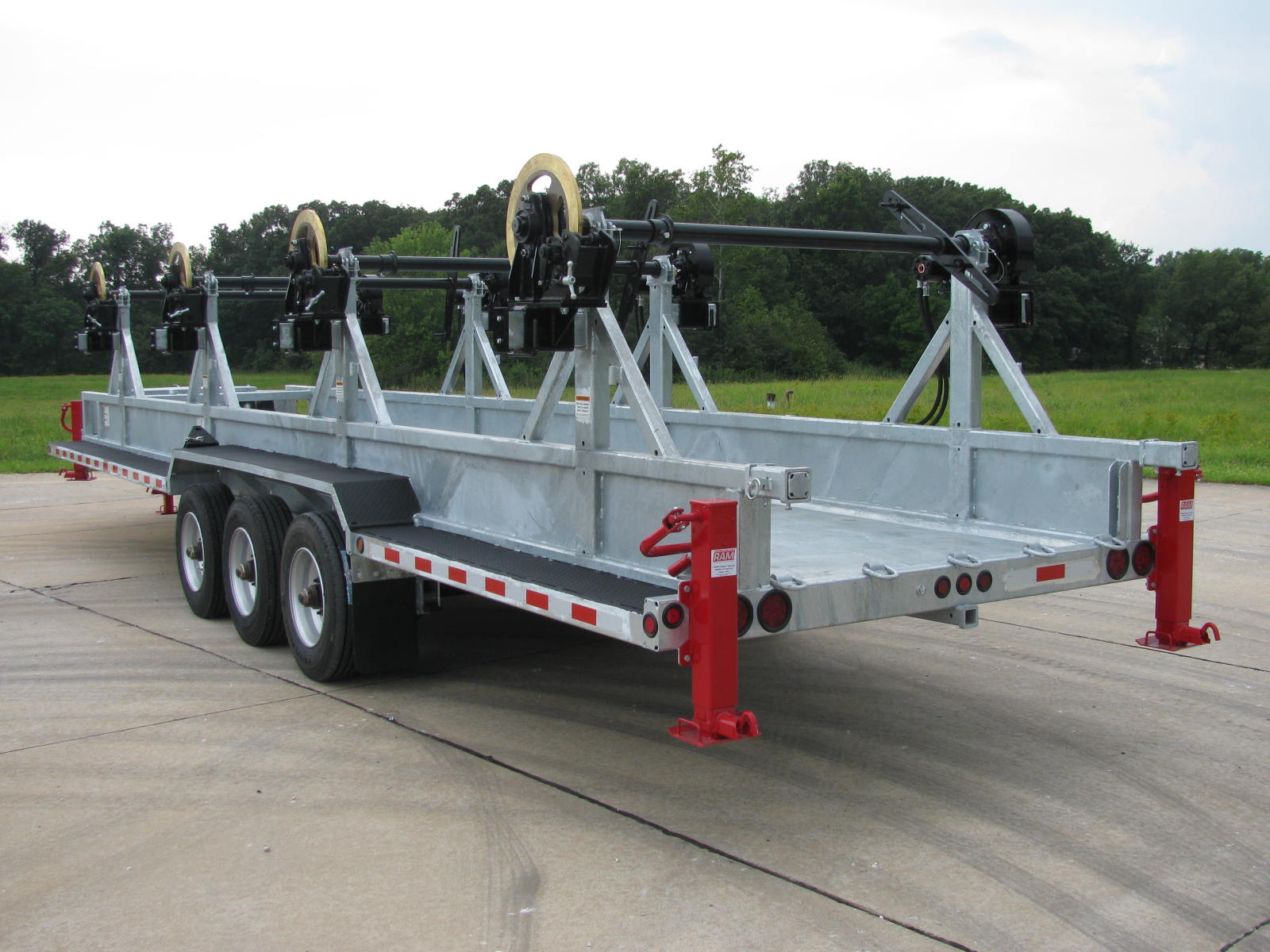

4RT 313-12K

Reel Trailers

CAPACITY

42,000# GVWR-Calculated at 15% Weight Transfer to Tow Vehicles

10,000 # Approx Curb Weight

32,000 # Approx Load Capacity

DIMENSIONS

Overall Length:  36”

A-Frame:  5′

Cargo Bed:  31’L x 72″W x 15″H

Overall Width:  101″

Reel Size:  (4) Four  86″D x 60″W x 3″ Center Hole

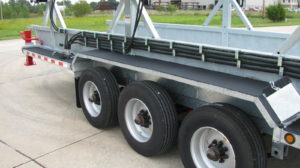

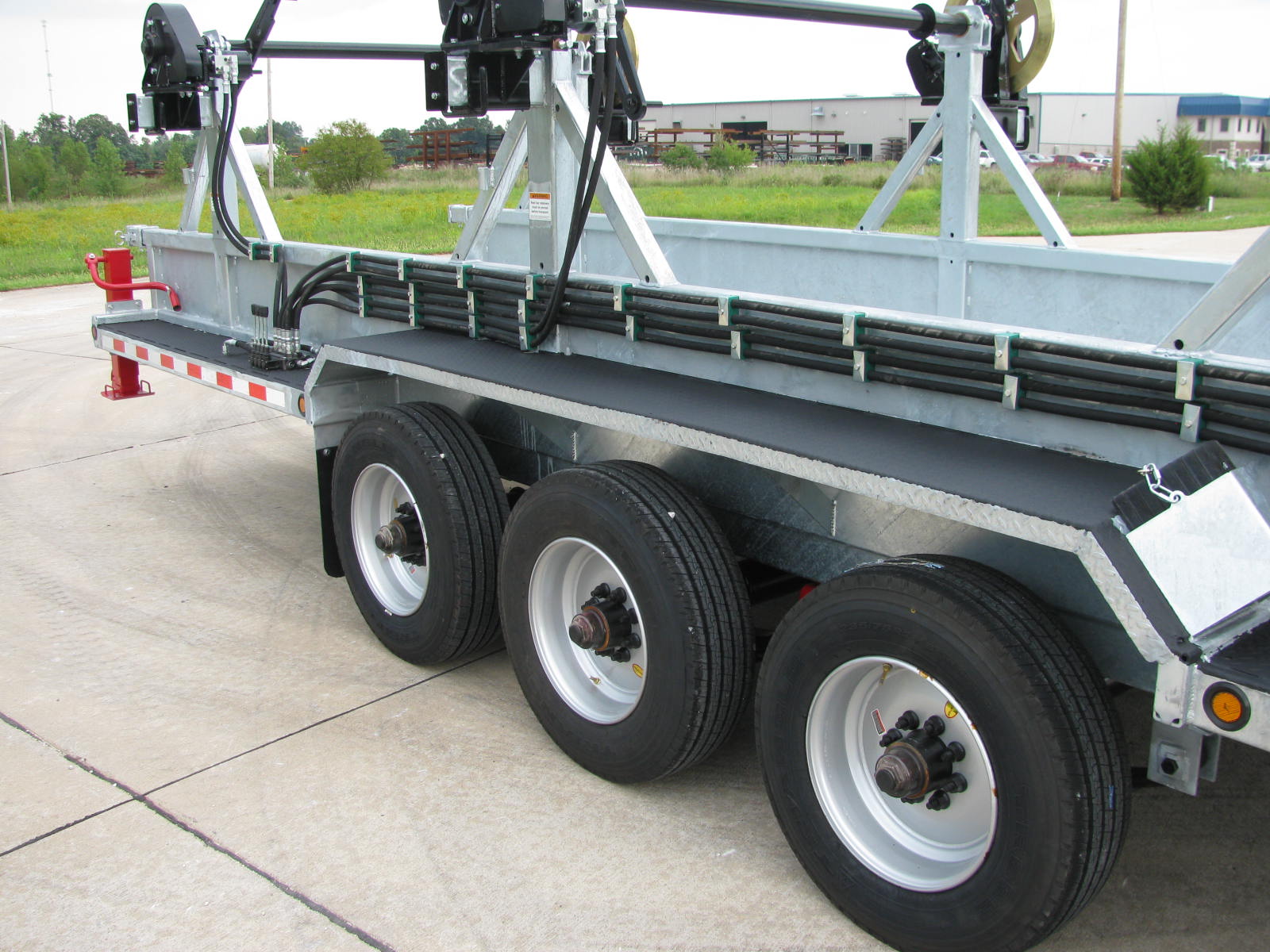

AXLES

Triple 12,000 #  Axles

Electric Brakes

(6) Six 235/75R17.5 LR-H Tires

(1) Pair Mud Flaps

REEL RACKS

(4) Four – Fixed with Heavy Duty Bronze Bearings, Retainer Cap, Pull Pin & Spring Cap

(4) Four – 2 7/8″ Reel Bars with Crossarm and (1) One Locking Collar

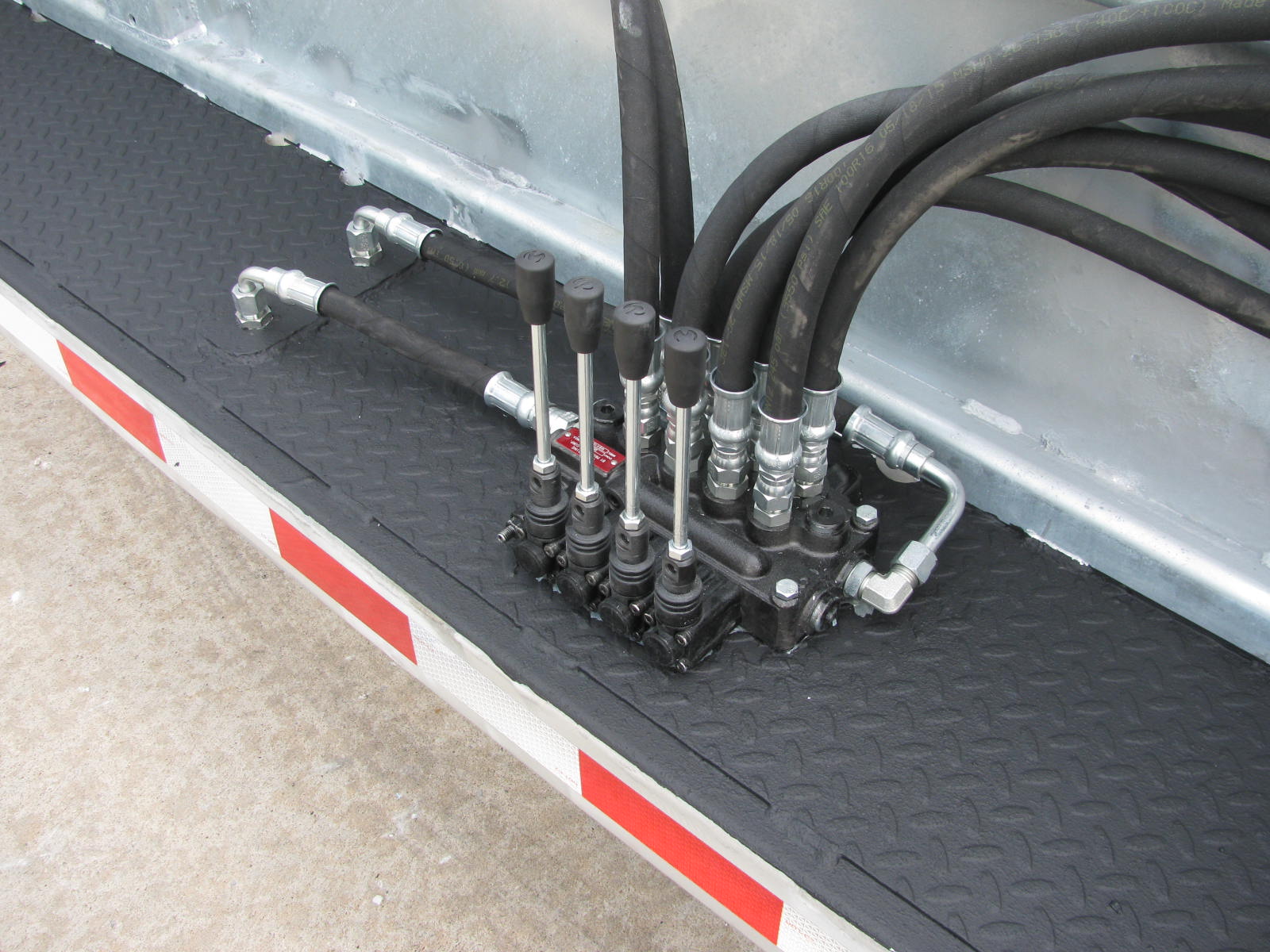

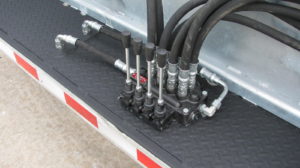

(4) Four – Hydraulic Take Up Assembly,

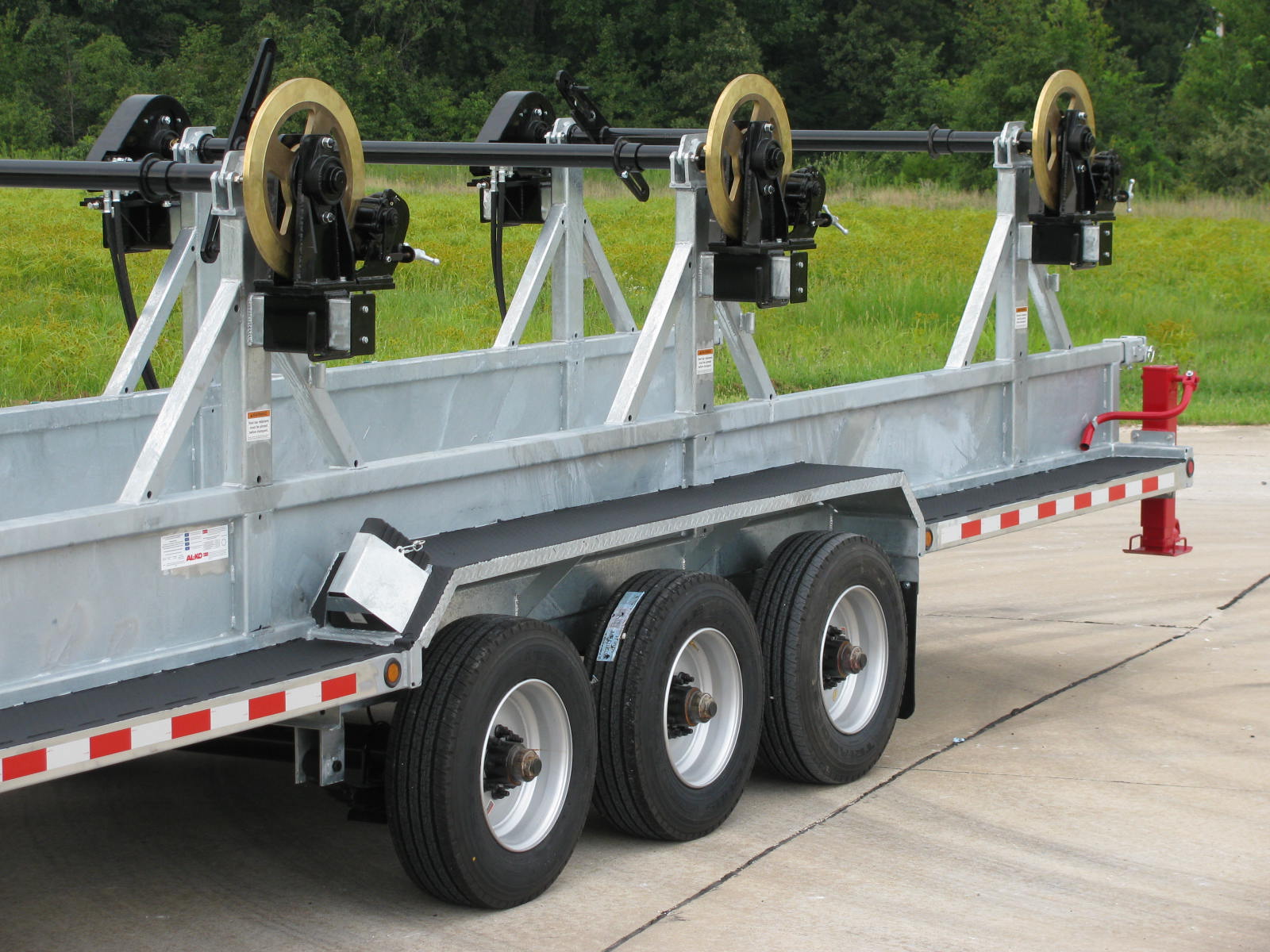

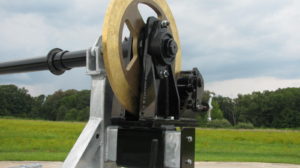

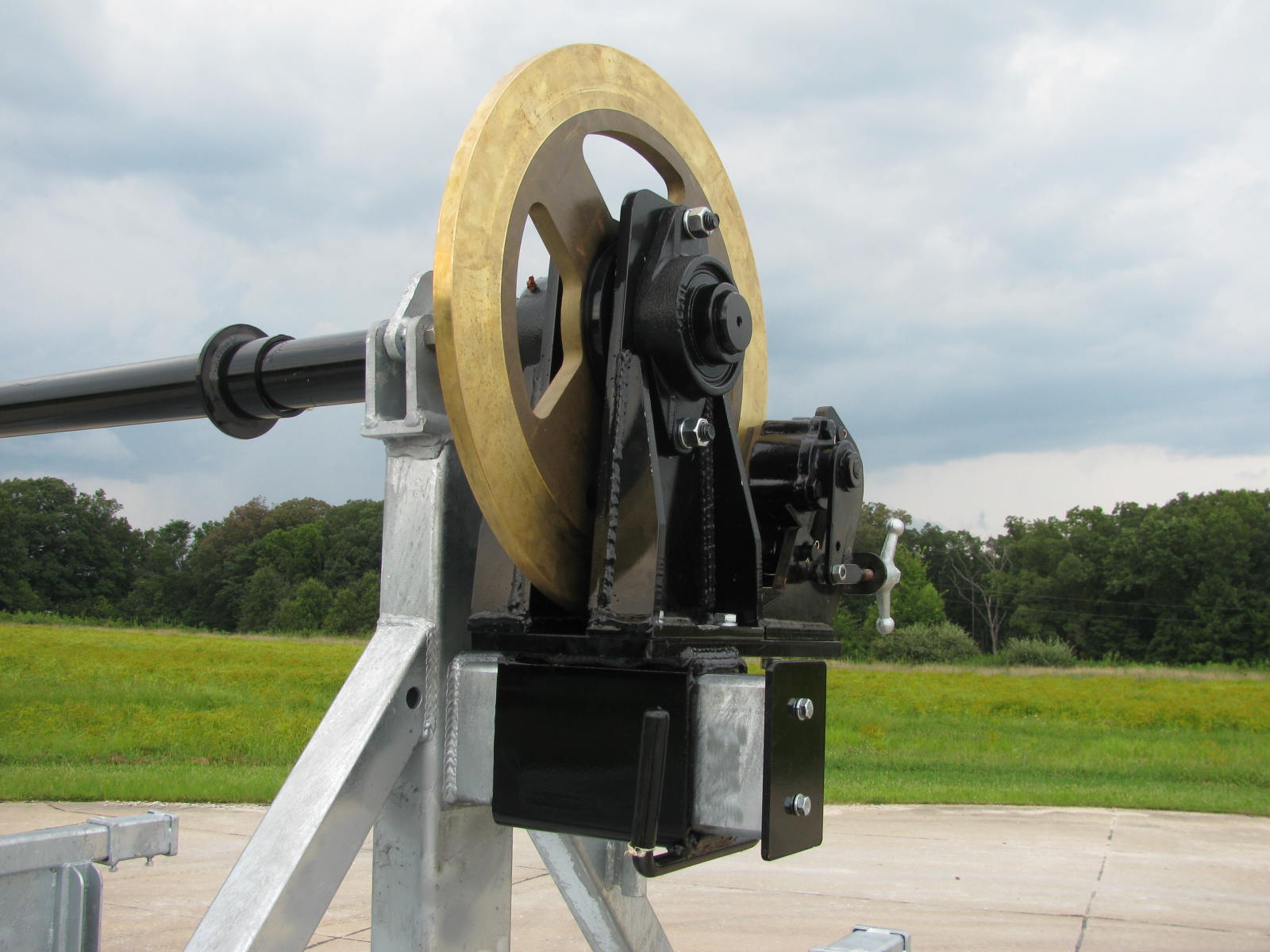

(4) Four – 20″ Tensioning Brake Assemblies, 16′ x 3/4″ Annealed Naval Brass Rotor, Hayes Brake Caliper Develops 10,000 lbs of Clamping Force Resulting in 4,200 ft lbs of Torque at the Shaft

(1) One – 14 HP Kohler Gas Engine With Electric Start and Recoil Back Up, 20 Gallon Hydraulic  Reservoir, 10 Micron Fluid Filter

8 gpm

2,250 psi Continuous

2,900 psi Max

2,200 lbs of Line Pull @ 2,250 psi on 24″ Drum

Hydraulic Quick Disconnects Mounted at Front of Trailer to Run Off Truck Hydraulic Tool Circuit

TONGUE, HITCH & JACK

7″ x 3″ Tubular Steel A-Frame

6-Position Adjustable Hitch Plate (14″ through 27″)

3″ Lunette Eye, 35K Capacity

1/2″ x 36″L Galvanized Safety Chains with Safety Hooks and Anchor Shackles

12,000 Static Load, Series Dropleg Jack

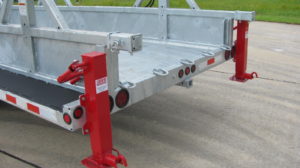

(1) One – Pair 12,000 lb Stabilizer Jacks Located at Rear of Trailer

MAIN FRAME:

7″ x 3″ Tubular Steel Main Frame

7″ x 3″ Tubular Steel Crossmembers at Front of Cargo Bed

7″ x 3″ Tubular Steel Crossmembers at Rear of Cargo Bed

CARGO BED

12 Gauge Smooth Steel Floor

3″ C-Channel & 3″ Angle Crossmembers on 24″ Centers

Sides – 12 Gauge Steel with 3″ x 3″ Tubular Steel Top Rail & 5″ x 3″ Lower Rail

CATWALK

1/8″ Steel Diamond Tread, Mounted on 4″ x 2″ Tubular Perimeter Frame

Full Length of Cargo Bed, Fore and Aft of Fenders

FENDERS

Fabricated 1/8″ Steel Diamond Tread Plate Fenders

Integrated Construction with Catwalks

TOOLBOX

Toolbox Dimensions:  14″H x 13″D x 78″ Contoured to A Frame

Fabricated 1/8″ Smooth Steel Interlarded Construction

Lift-Up Lid with Security Hasp for Padlock

MISC

(4) Four-10,000 lb Dropleg Jacks all Four Corners

Wheel Chock Holders and Wheel Chocks

Grounding Lug

Receiver Tube for Slide In Hitch Mount and Rear of Trailer

(5) Five – D-Rings Along Rear Butt Tube

12 VOLT WIRING SYSTEM

ICC & DOT Approved Lights

Sealed Beam Rubber Mounted Stop, Turn, Tail & Marker Lights

S.O. Cable Wiring Loom, Clamped on 16″ Centers with Rubber Lined Clamps

Wiring Loom Terminated in Junction Boxes

Connections Soldered & Sealed with Heat Shrink Tubing

32″ Pigtail w/6-Way Aluminum Die Cast Plug, Terminated at Junction Box

Breakaway Kit with Sealed Lead Acid Battery & Trickle Charger
