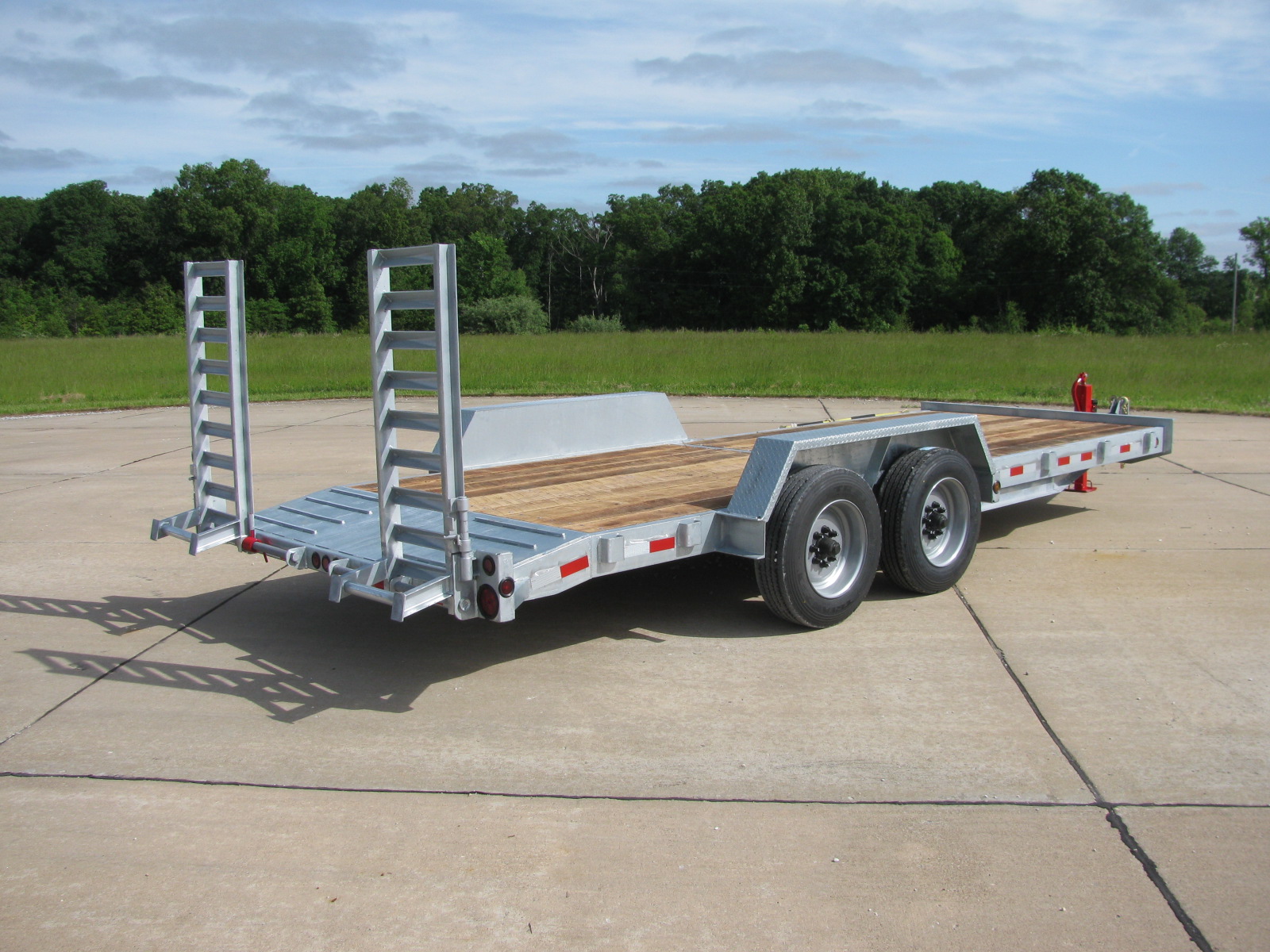

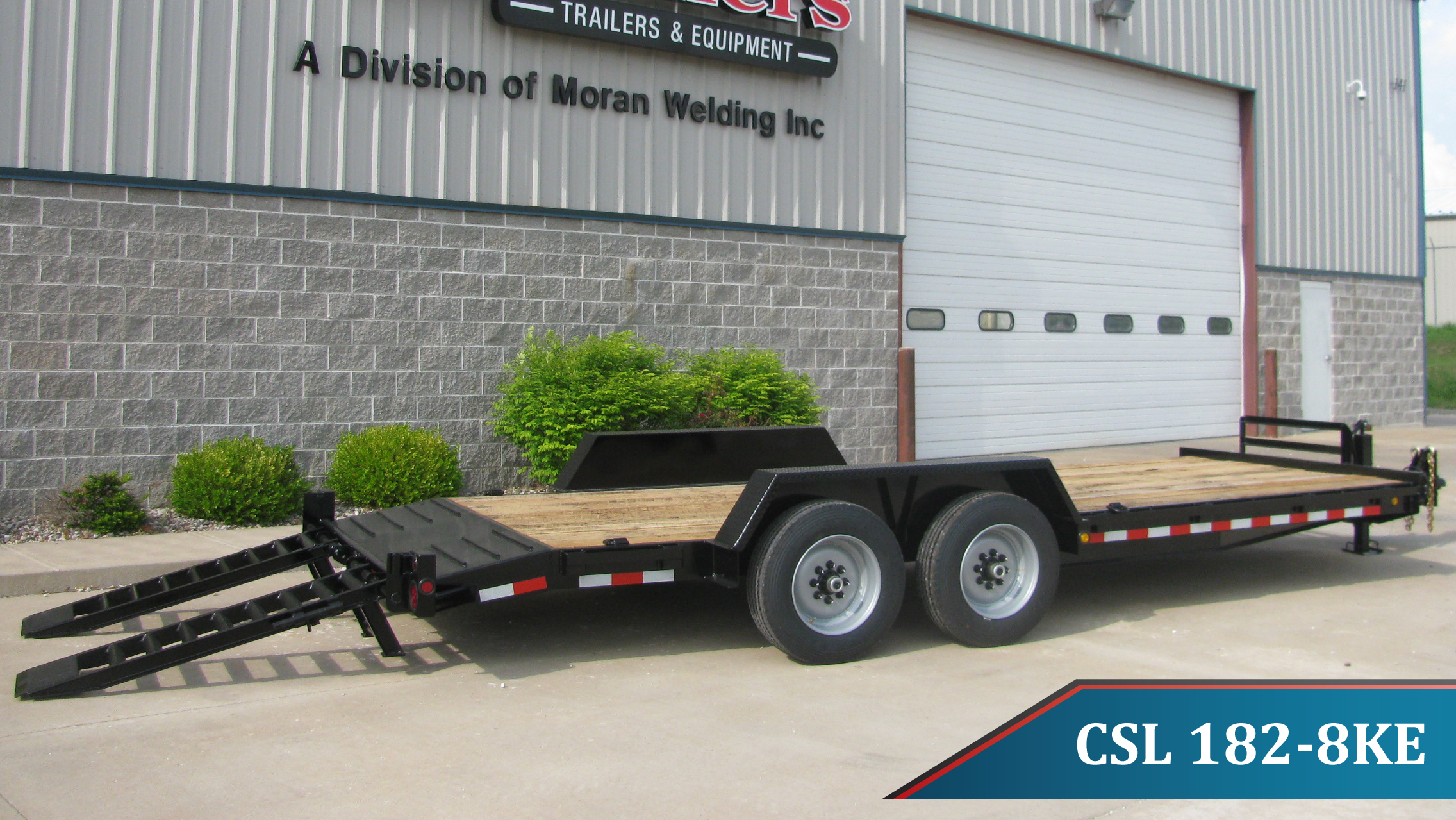

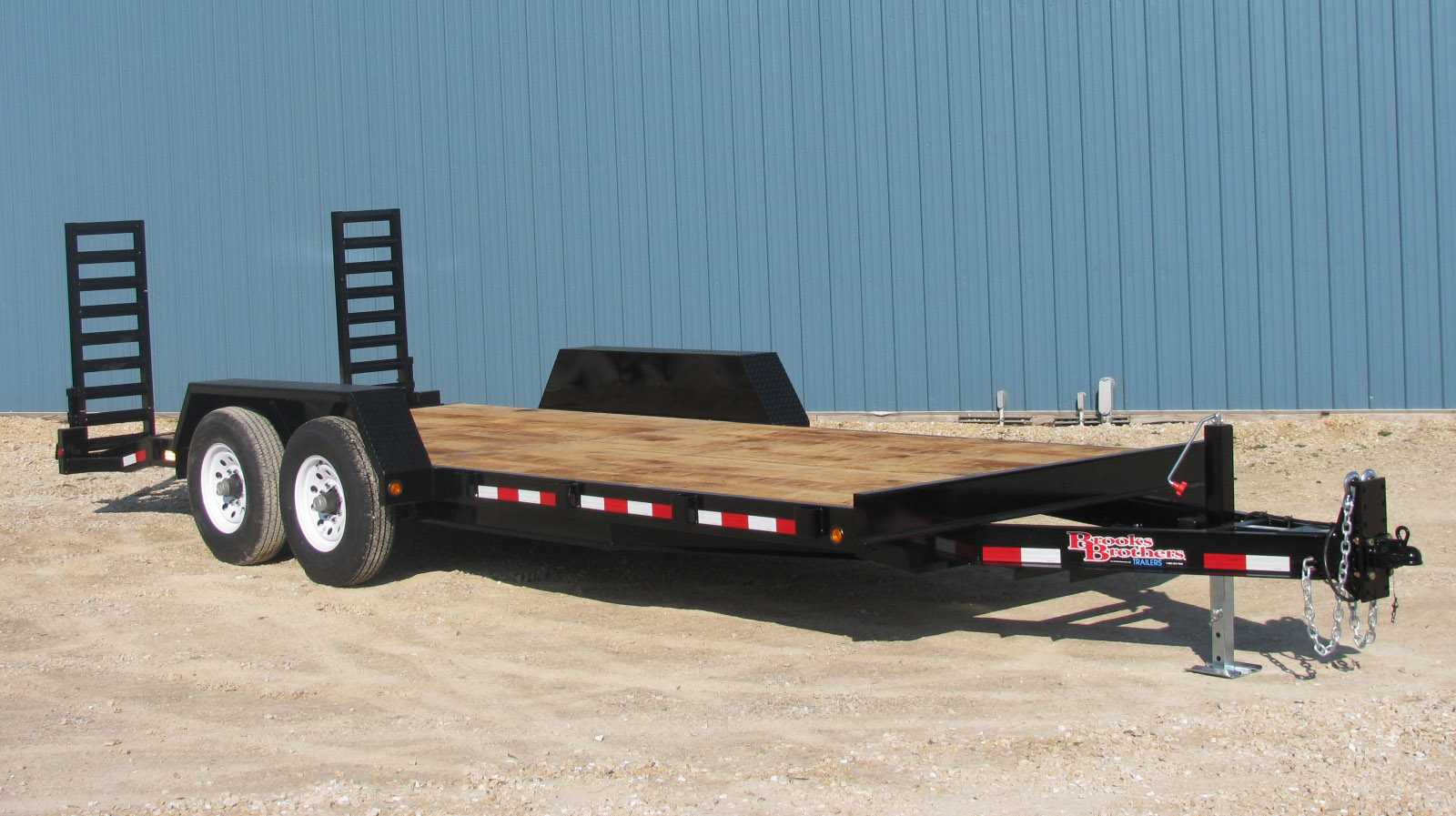

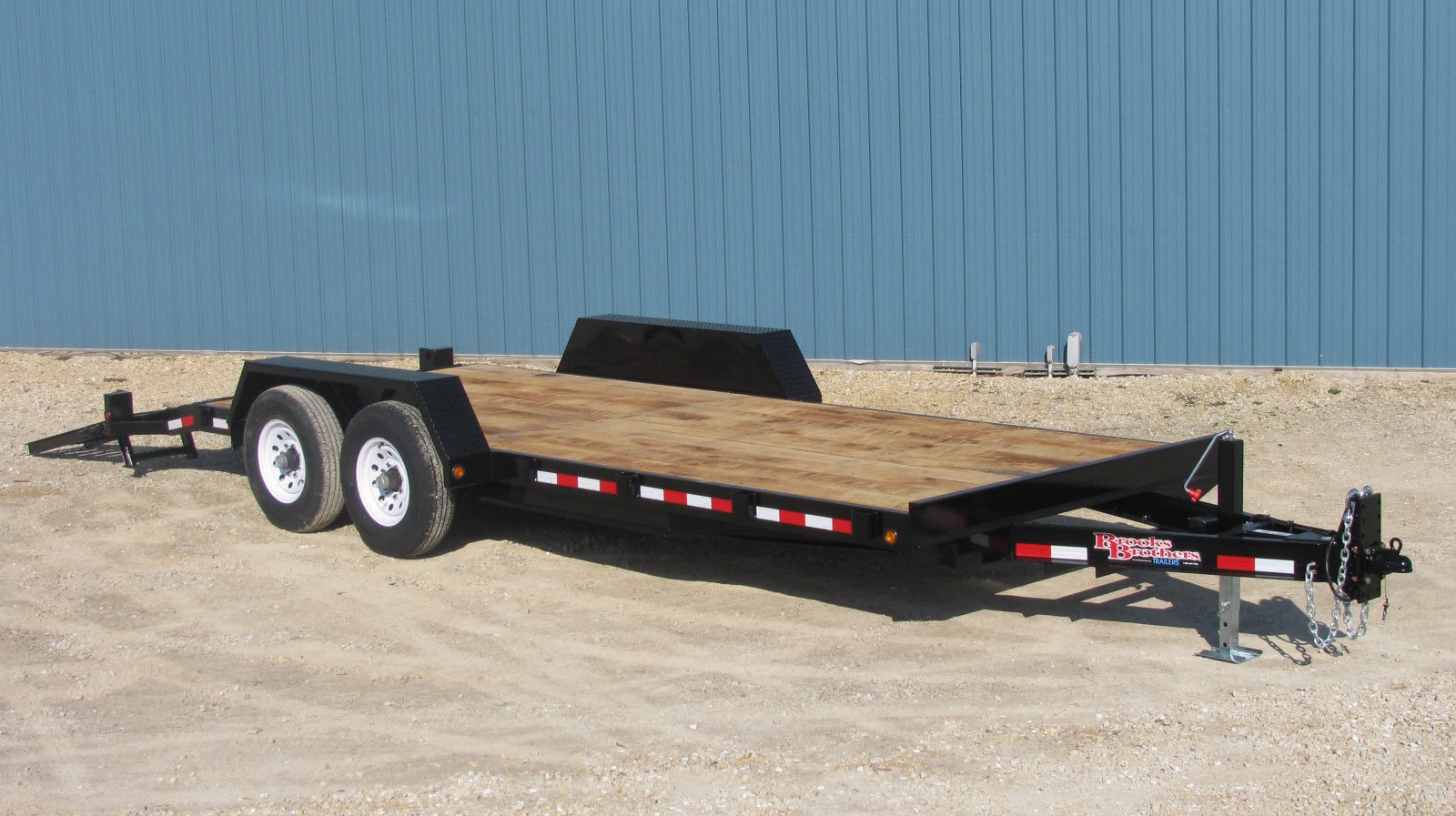

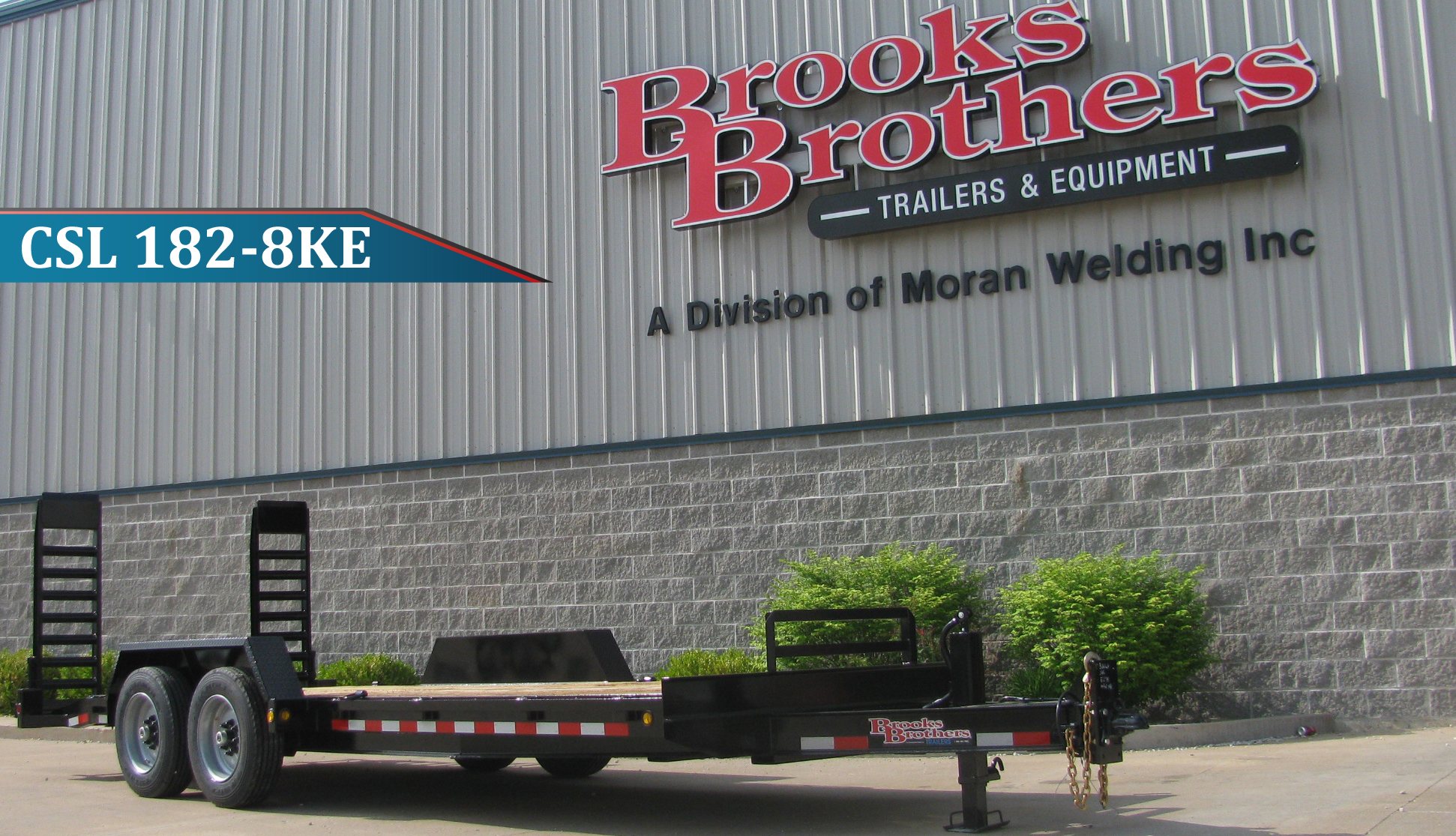

CSL

CAPACITY

11,000 lbs. Load Capacity

Approx 2,700 lbs. Curb Weight

14,000 lbs. GVWR (Calculated at 15% Tongue Weight)

DIMENSIONS

16’ Deck Length Plus 24” Dovetail

60” Tongue Length

102” Overall Width

81” Deck Width Between Fenders

23” Deck Height

AXLES

6000# Tandem rubber torsion Axles

Electric Brakes on All Wheels

8 Bolt Hubs

(4) four – LT235/85R16 LR-E Tires

(4) four – 16” x 6” White Mod Wheel (8 Hole on 6 1/2“ Bolt Circle)

Fenders, Fabricated from 1/8” Steel Tread Plate

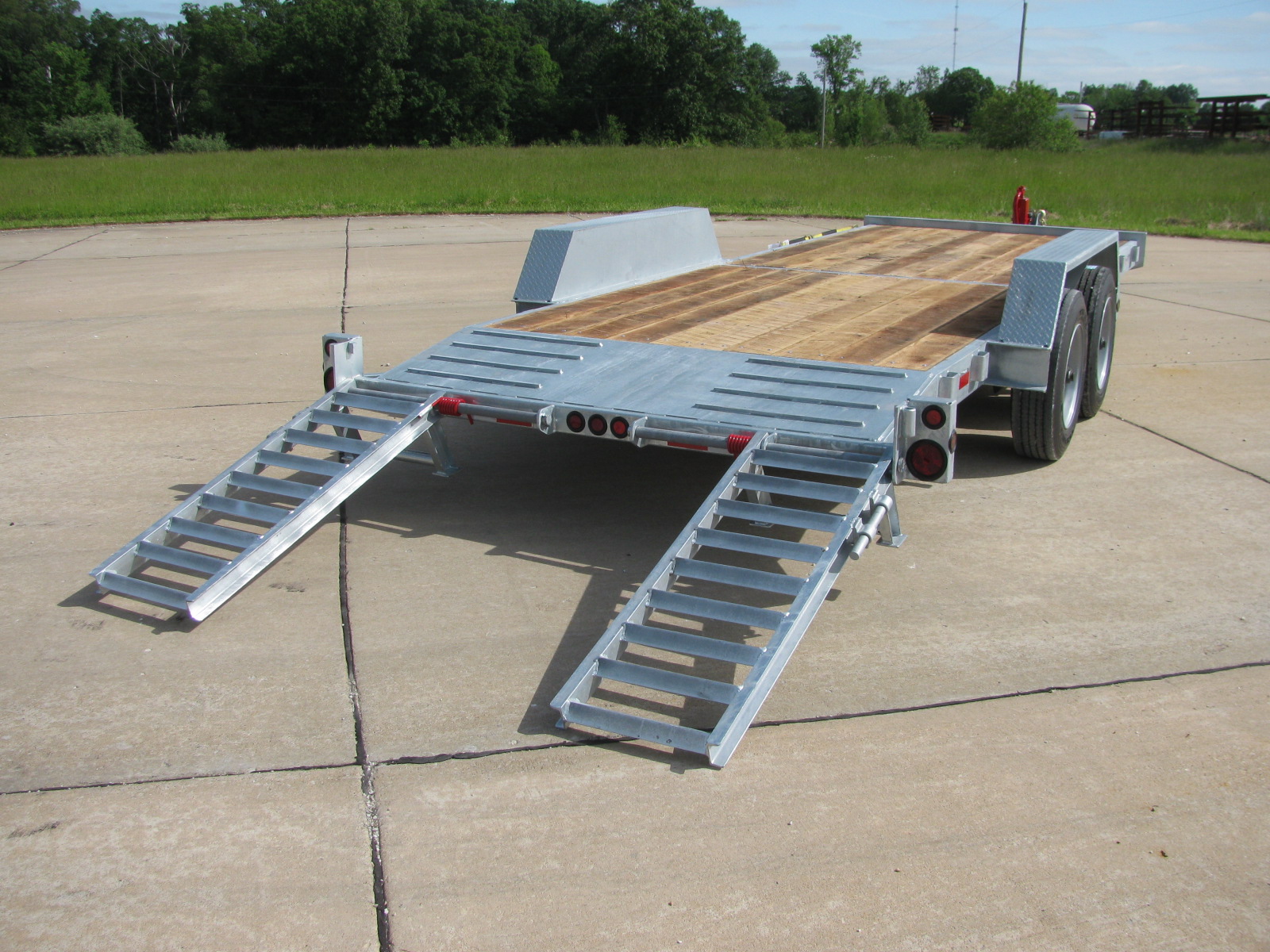

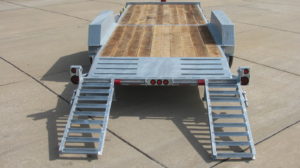

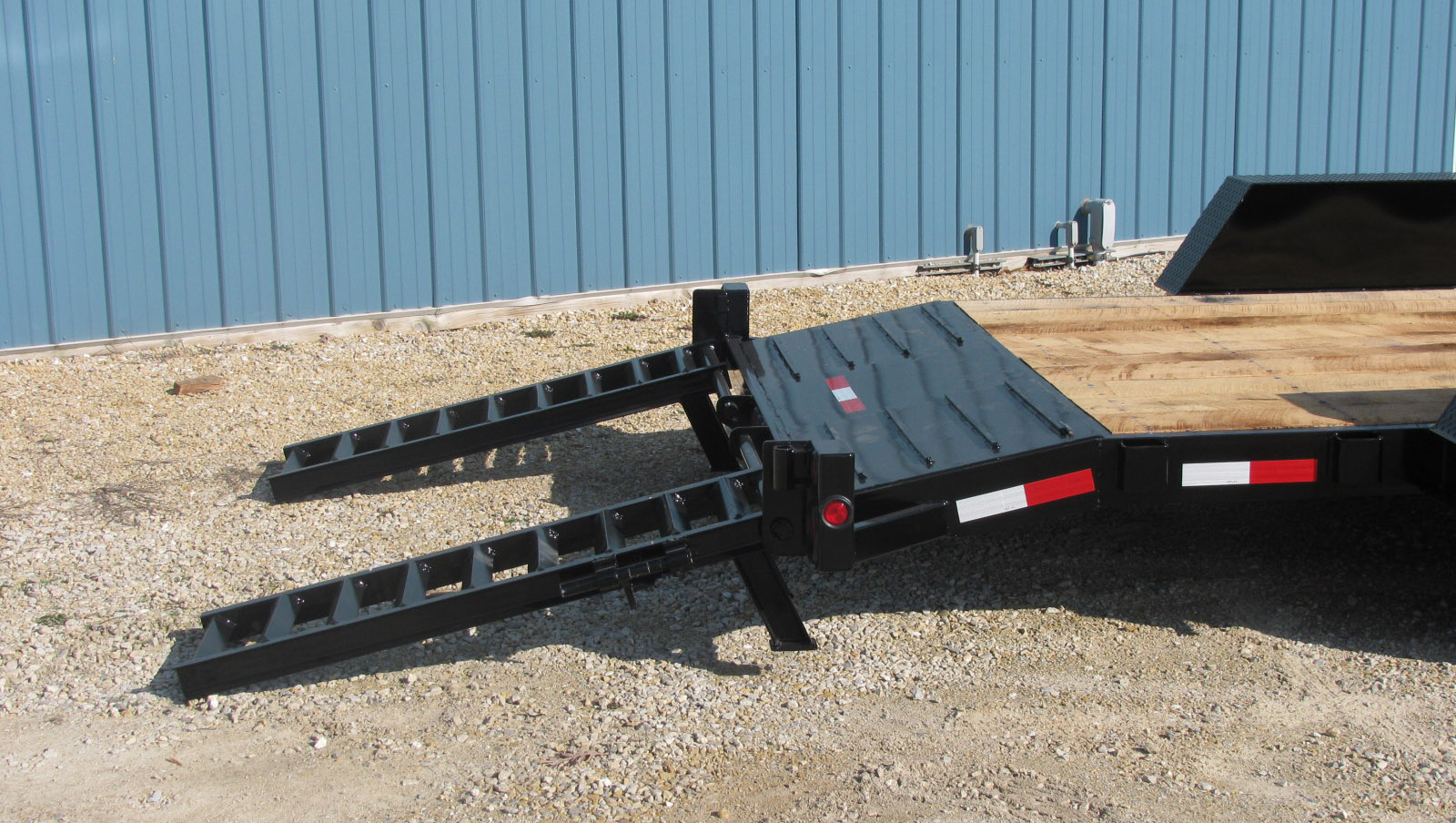

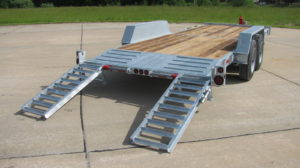

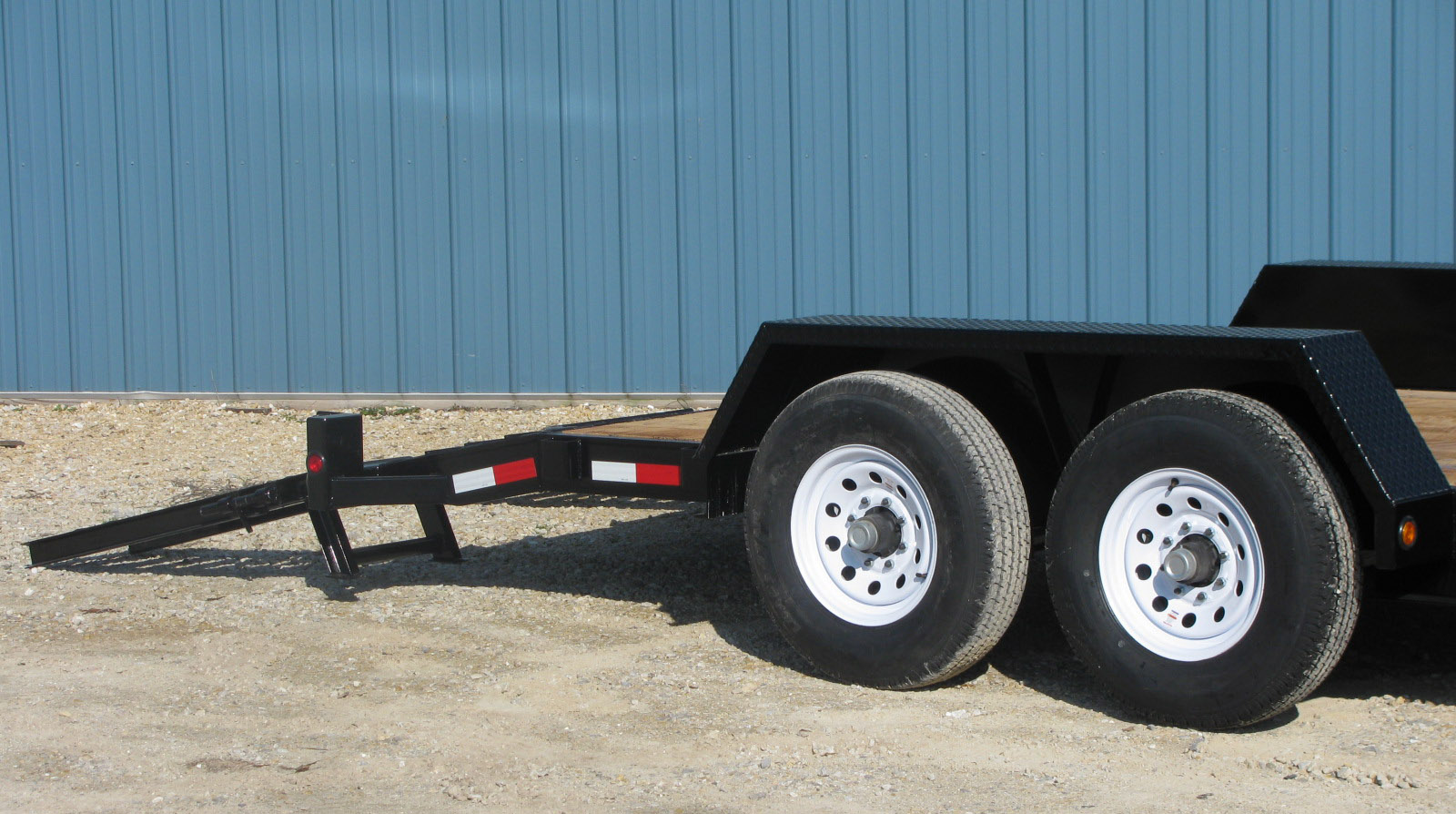

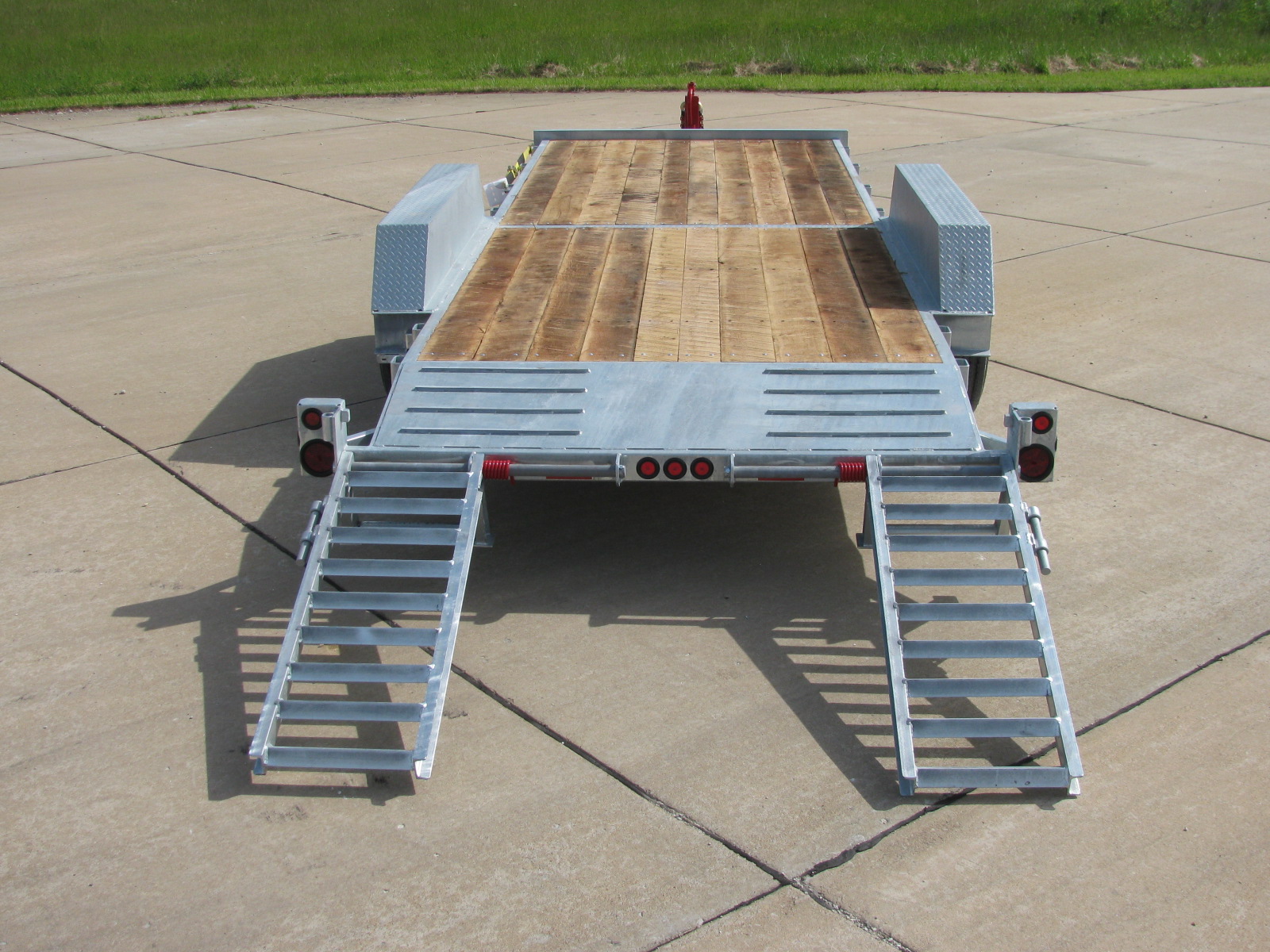

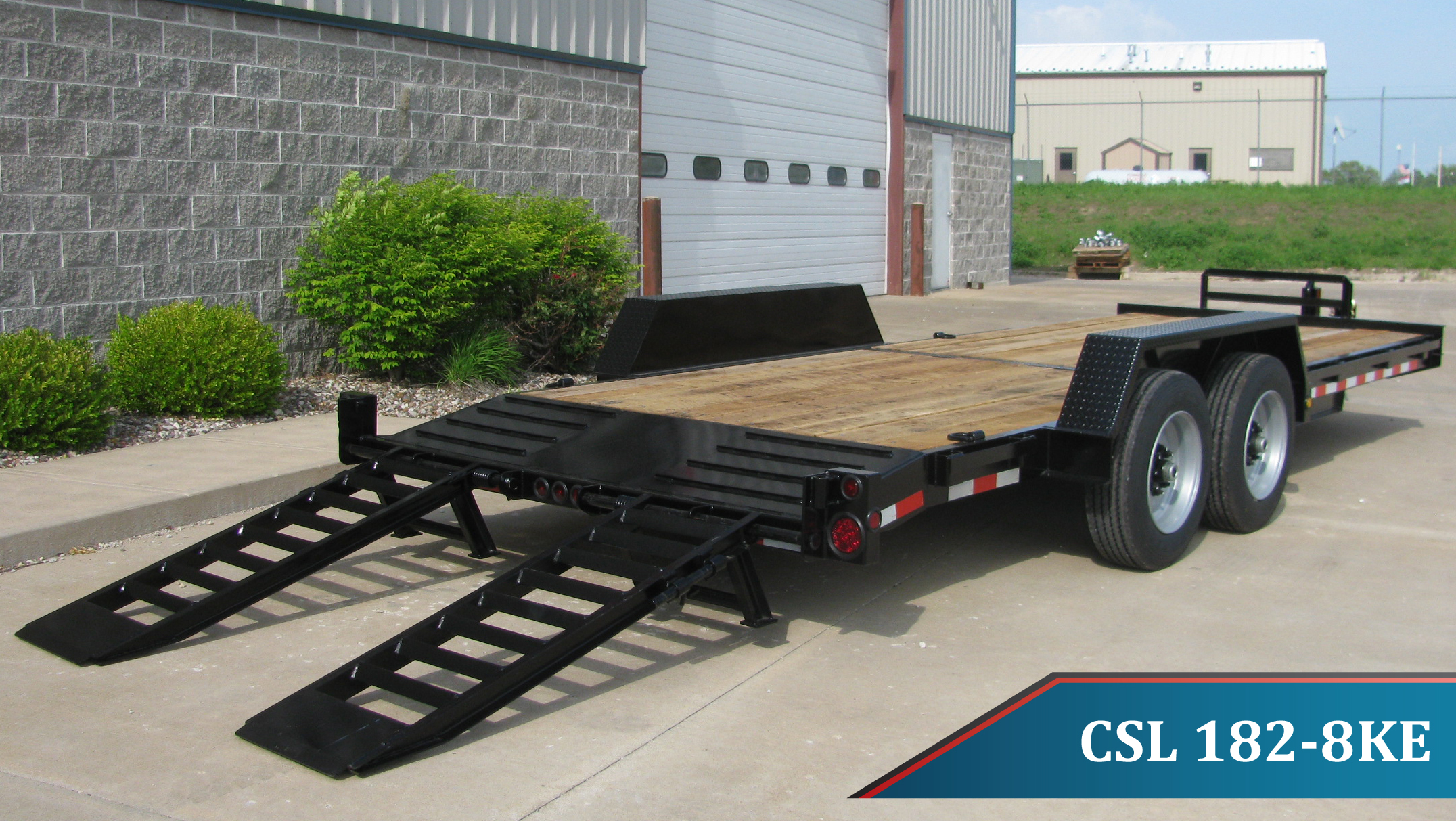

LOADING RAMPS

54”L x 18”W Self-Supporting / Adjustable / Removable Ramps

Vertical Slide Ramp Latch System Holds Ramps in Vertical Position

Low Loading Angle

TONGUE HITCH & JACK

6” Structural Channel Tongue

6” Channel Tongue Interlaced with Main Frame to Axles

2 5/16” Ball Coupler or 2 1/2” Lunette Eye (Your Choice)

5-Position Adjustable Hitch Plate

10,000 lbs. Drop Leg Jack

3/8” Safety Chains with Safety Latch Hooks and Anchor Shackle

MAIN FRAME

6” Structural Channel Main Frame

3” Channel Crossmembers

Five Stake Pockets Per Side (6 Per Side on 18’ Unit)
