Underground Manhole Jib
Contact us about this puller attachment that will give your crews more options and flexibility in their underground pulling setups. Forego excess rigging equipment, and get a solid and secure pulling configuration using this adjustable, rotating, and expandable manhole jib.

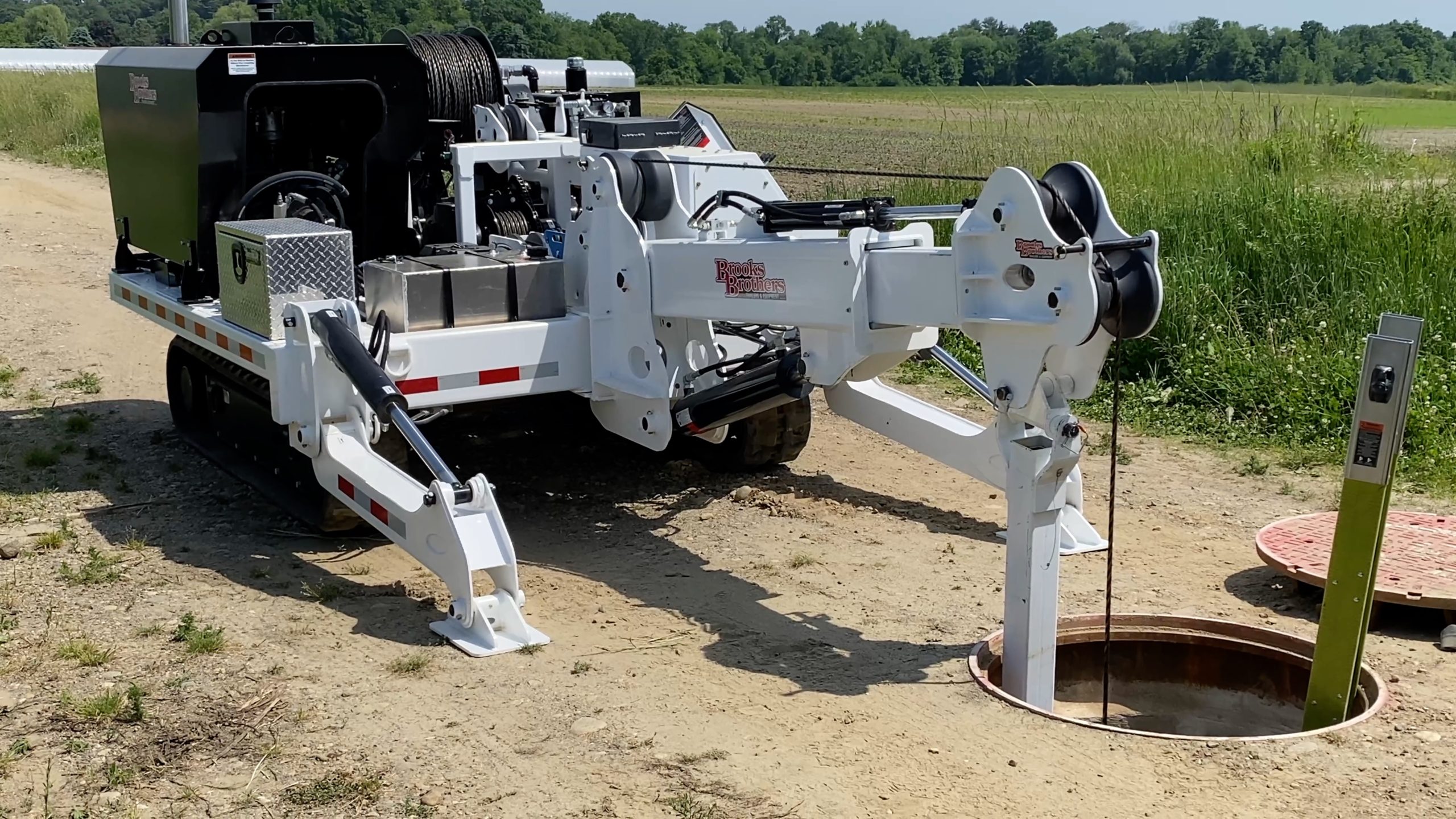

Pins on any configuration of BBT Underground pullers with the self-sustaining boom.
Retracted length (stowed position) approx. 61”
Extended Length Approx. 101” below ground level.

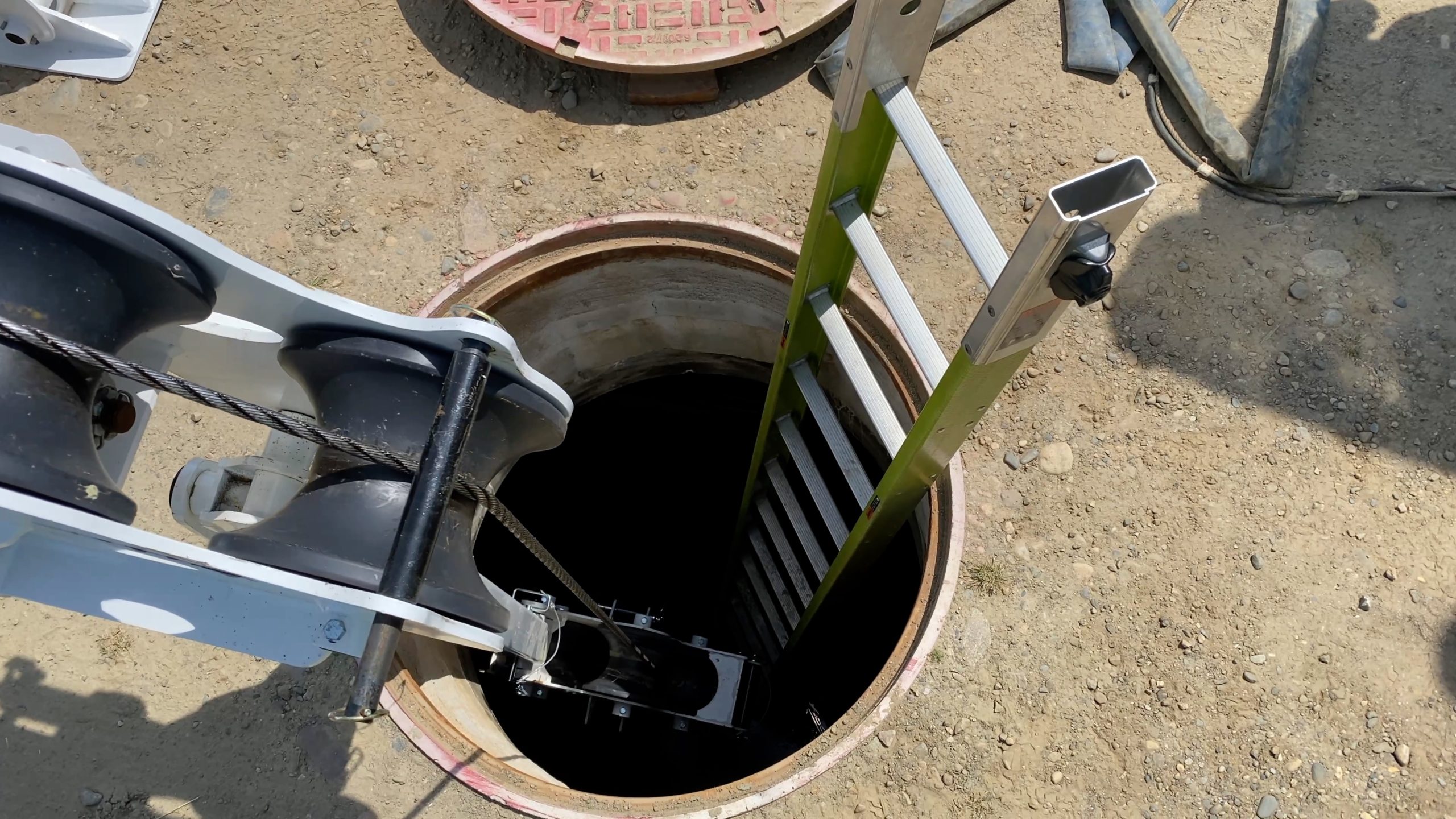

Pivoting lower head will allow entry into a minimum of 24” diameter manhole.

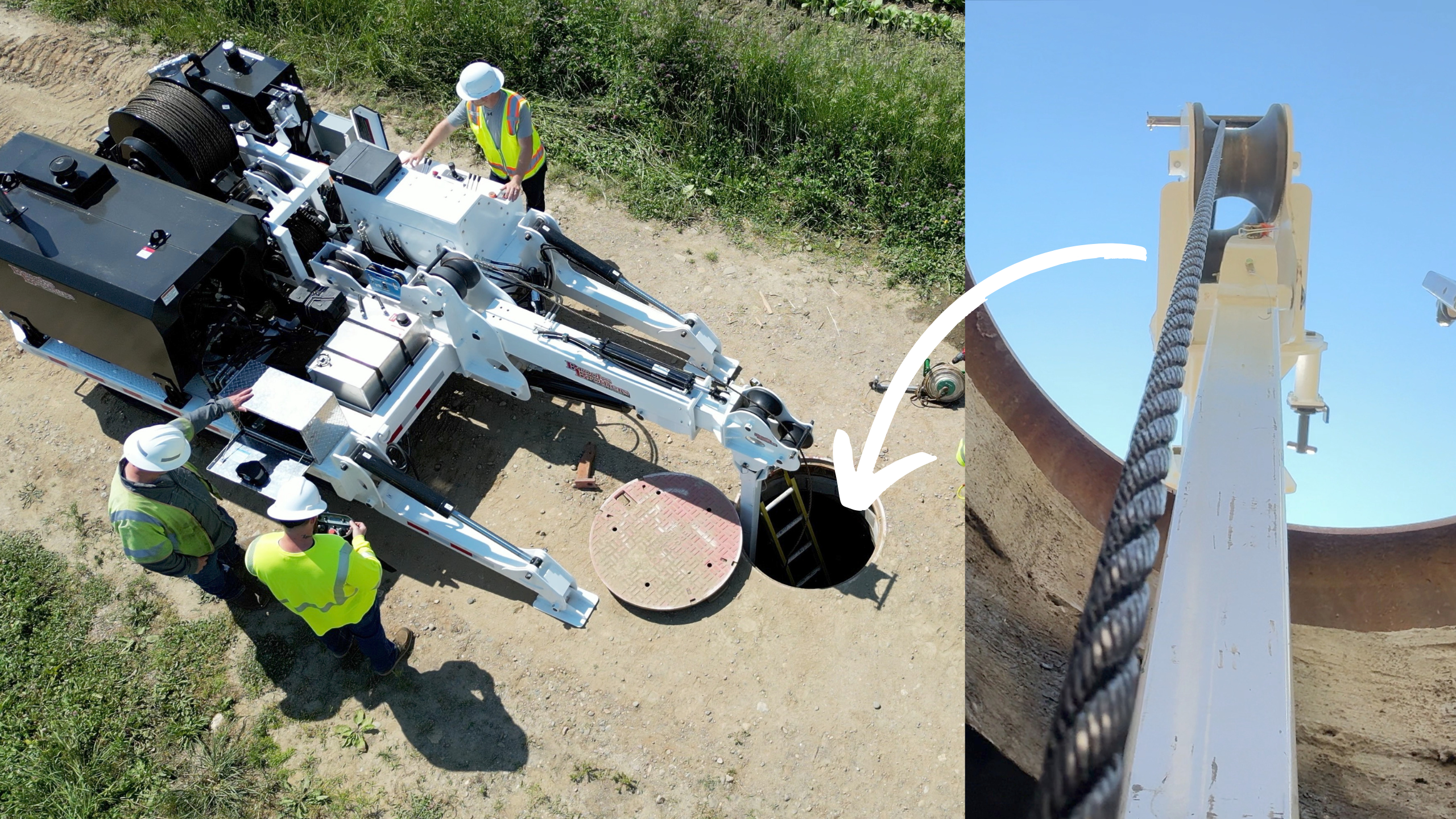

Equipped with (3) 9” Diameter Nylatron rollers enabling operator to pull in either direction.
Ample clearance between rollers allows pathway for your largest bundled conductor make-up.

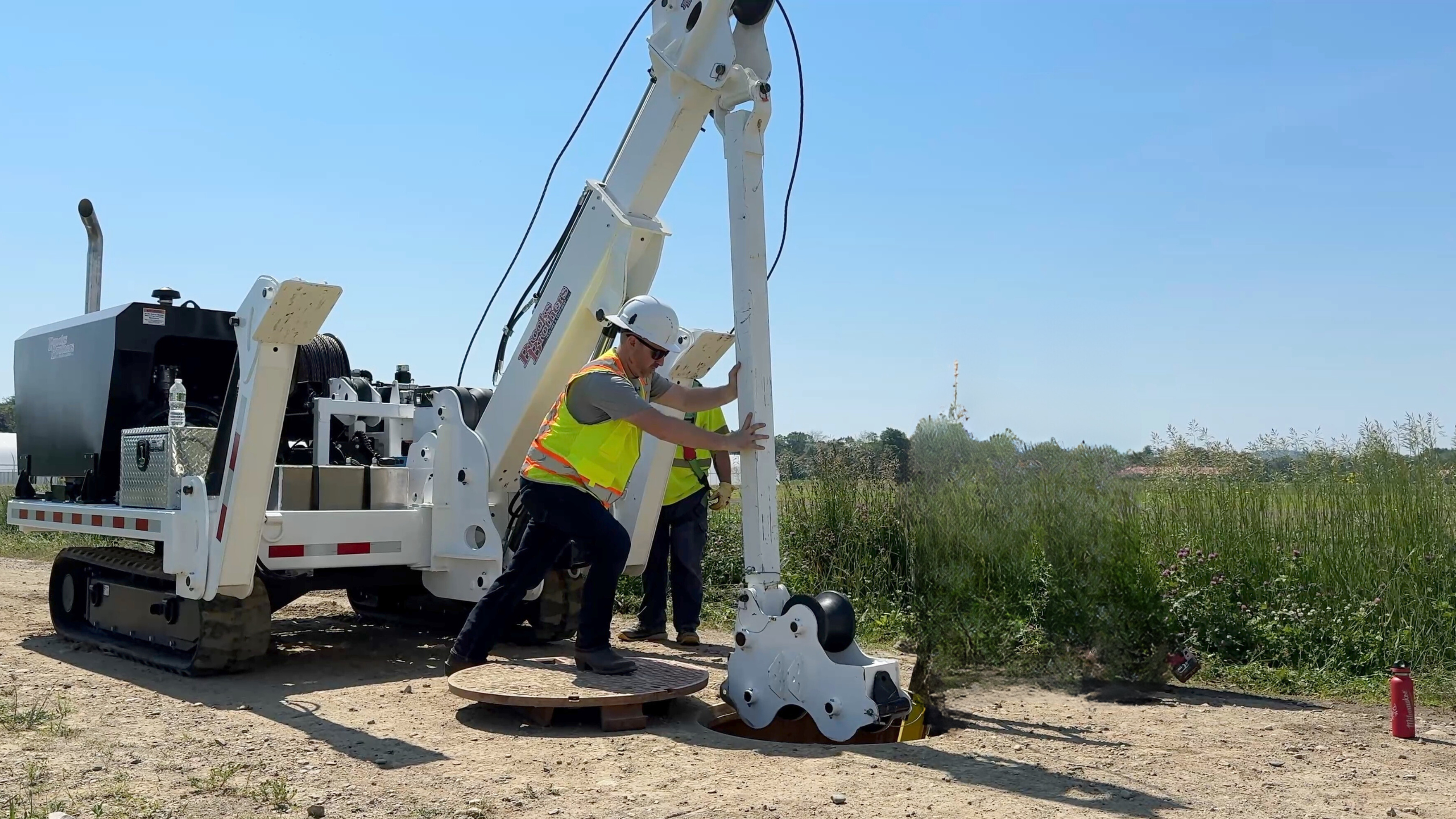

Entire Jib articulates 360 degrees via swivel knuckle and is pinnable at multiple pulling angles.

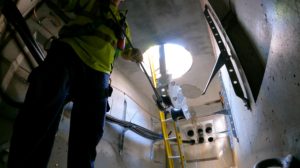

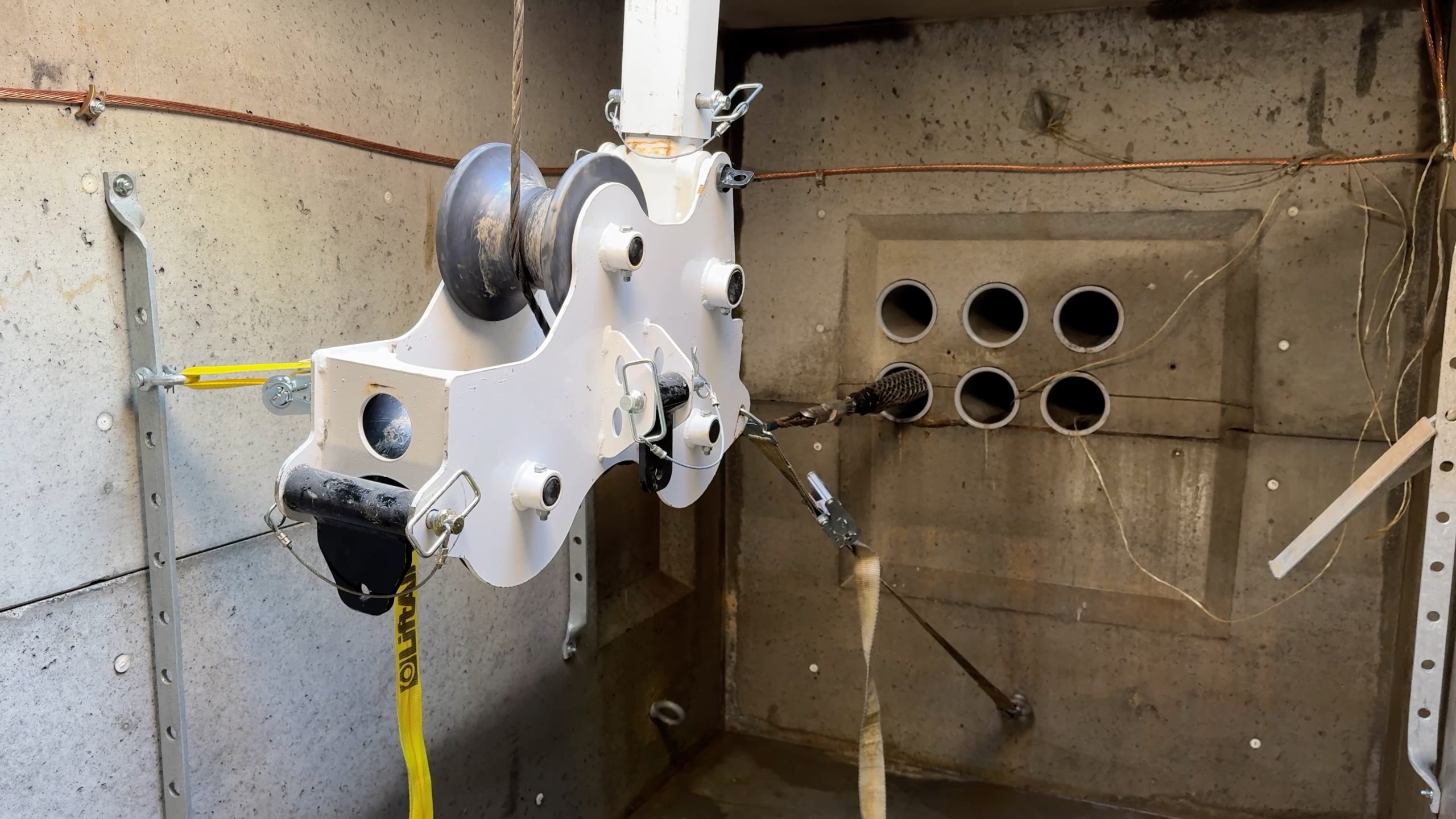

Pinnable Tie-off Securement brackets are provided on each side and ends of the jib head to safely secure the attachment to the manhole walls.
Custom Strap assembly provided for securing manhole jib to lower boom during transport.
