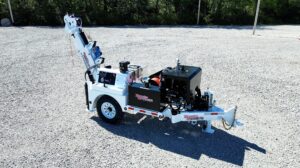

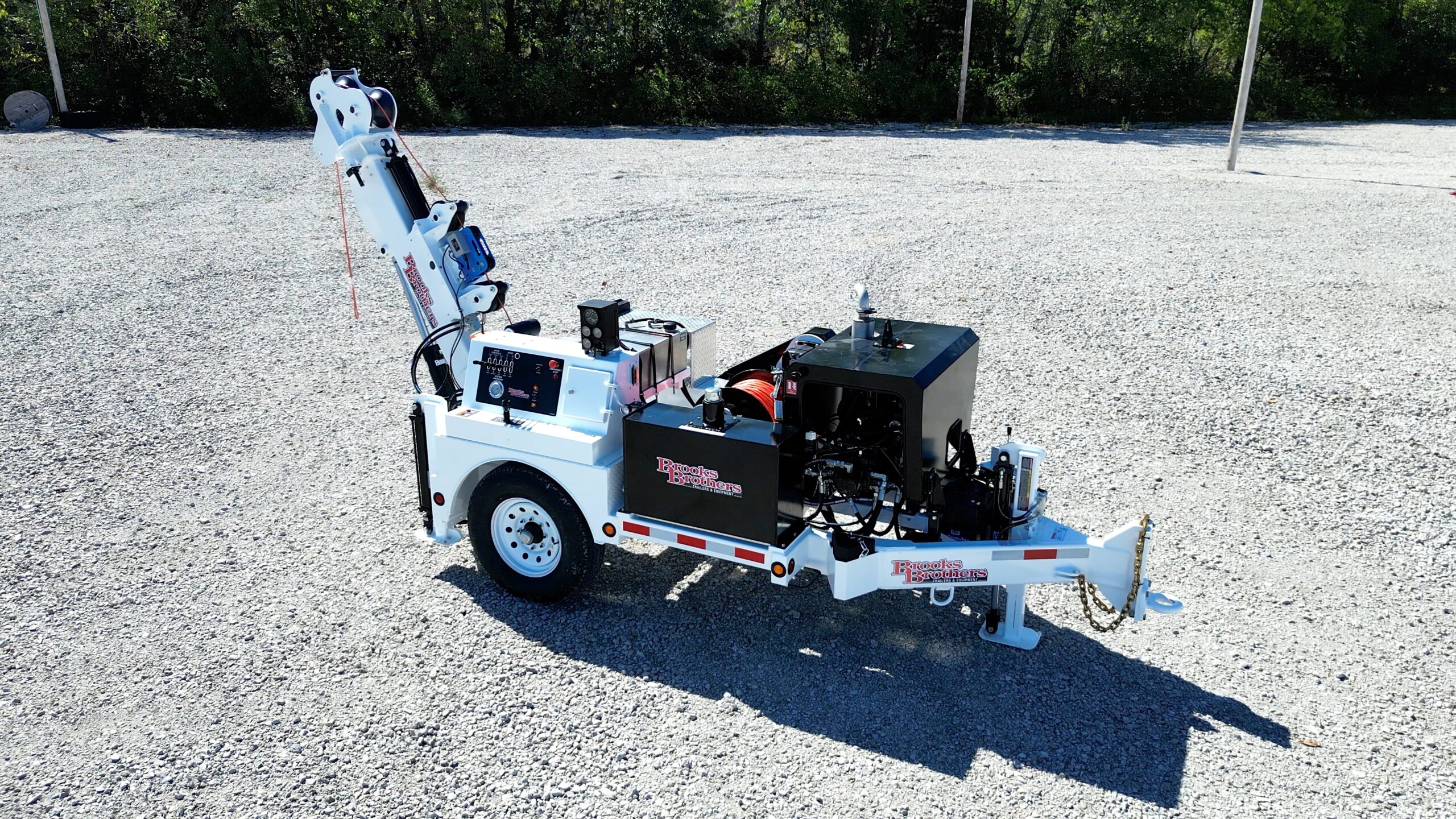

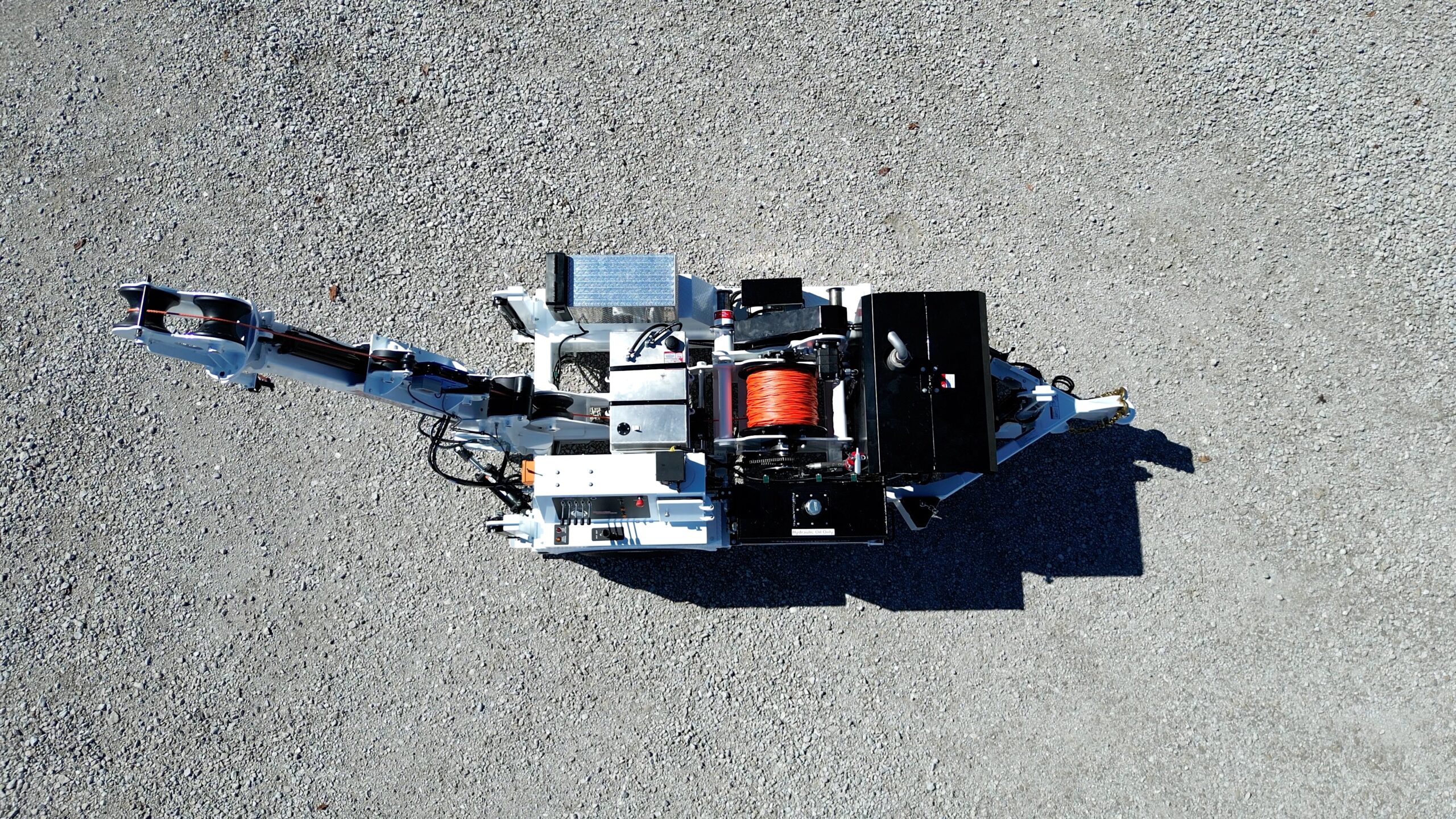

UP-5000 Underground Puller

UP5000 Underground Puller

UNIT PERFORMANCE:

Rated Line Pull: 5000 lbs.

Line Speed : Approx. 2-3 MPH

Dimensions:

Overall Length – Approx. 154″L

Overall Width – Approx. 63″W

FEATURES:

1,500′ of 5/16″ Synthetic Rope

Level Wind with Reversing Lead Screw Design

Stand-Beside Ground Controls

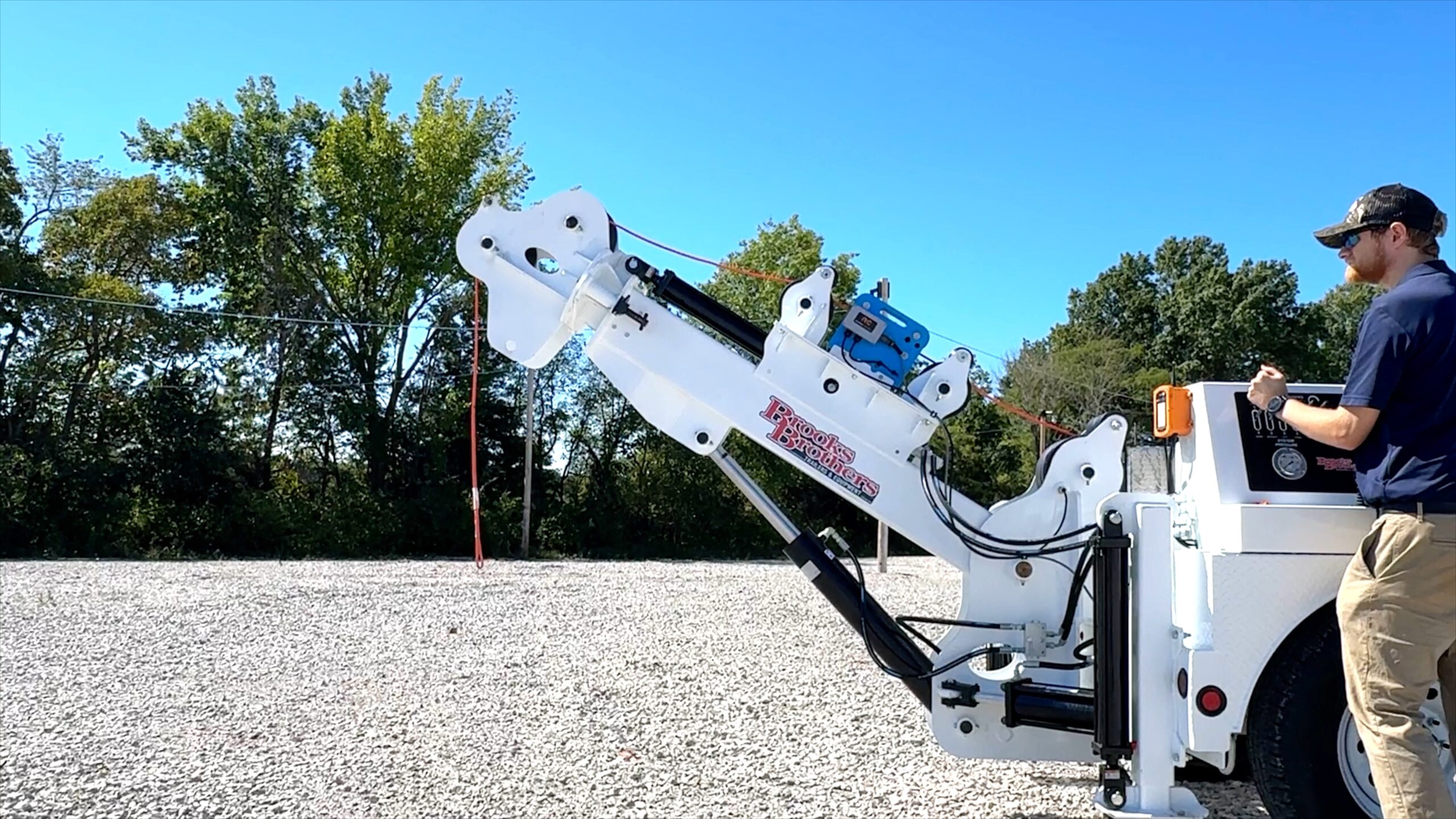

New and Improved Hydraulically Actuated Self-Supported 3-Axis Boom (Up, Down, Left, Right, Retract, and Extend

Hydrostatic Controlled Pay-in and Pay-out (No gear box or transmission)

24 HP Yanmar Tier 4 Final

Switch Activated Planetary Disengage for Rope Payout

Easy to Use Dynamometer that measures Distance and Line Tension

Dynamometer Equipped with USB Output to Record Live Pulling Data

Compact Design

(2) Grounding Lugs

(1) Front Hydraulic Jack

(2) Hydraulic Rear Stabilizer Jacks

Overspin Cable Payout Brake

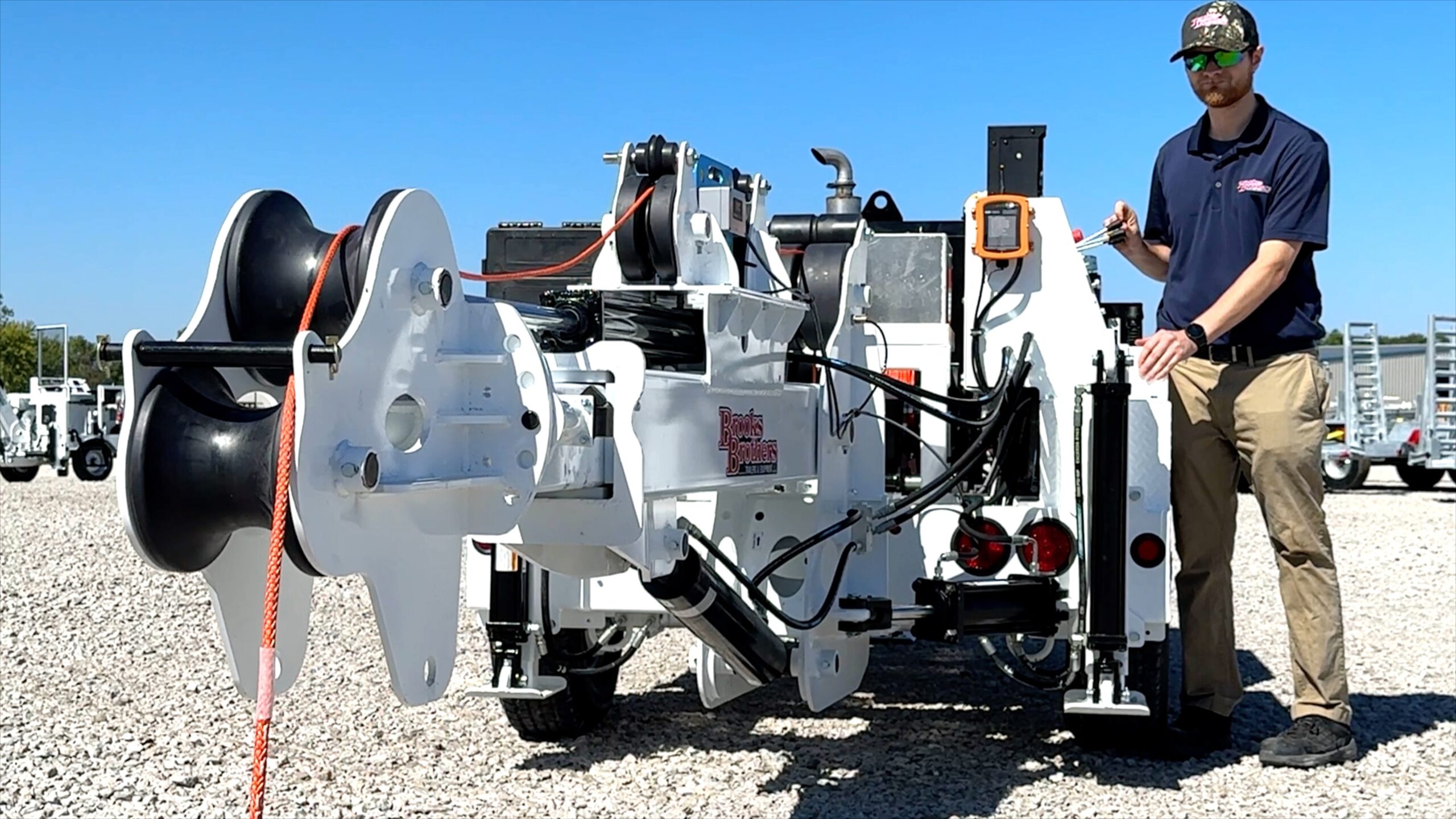

Dual 10″ Rollers at End of Boom

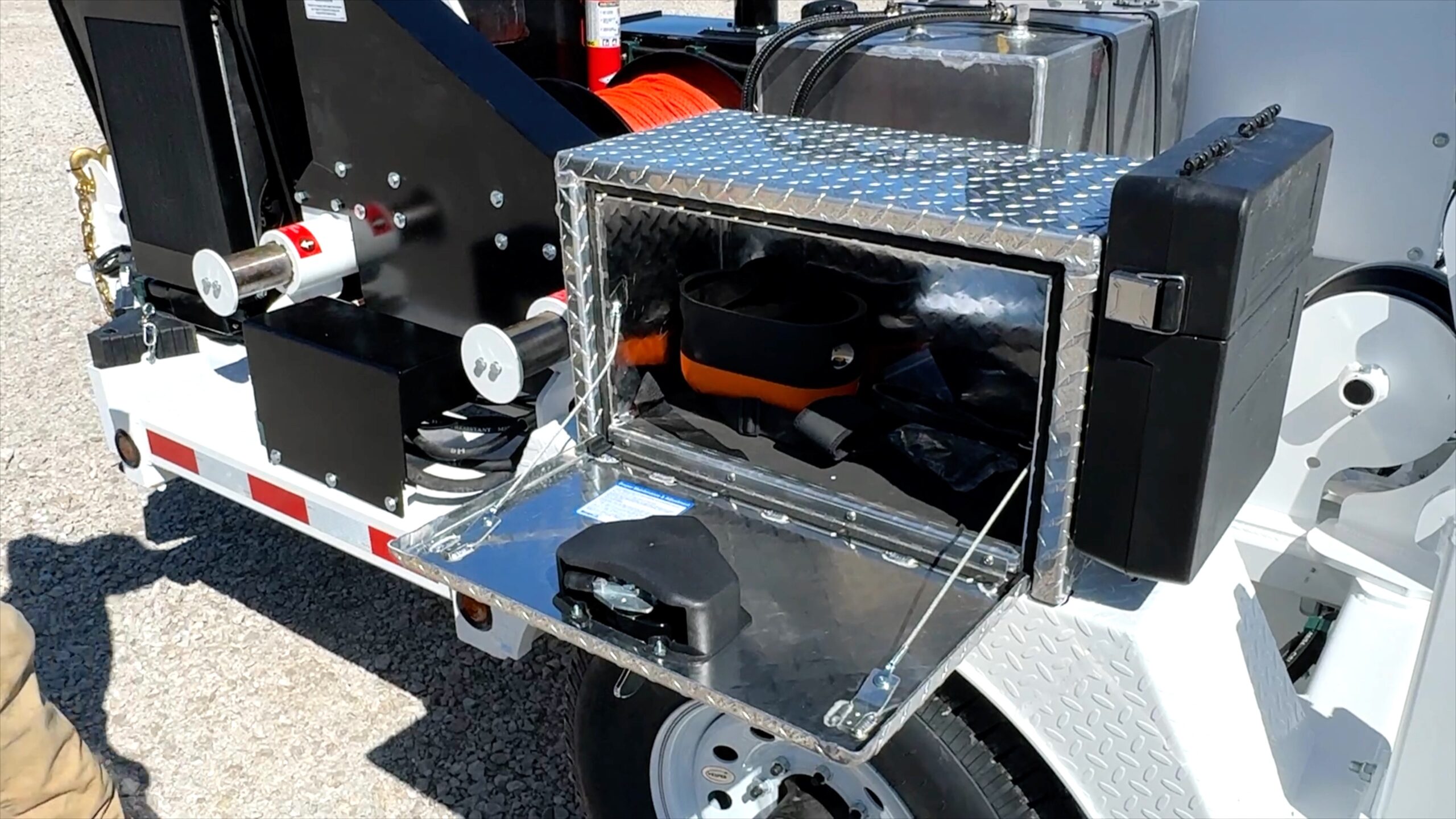

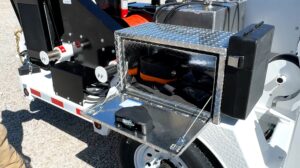

Aluminum Tread Plate Storage Box

SPECIFICATIONS:

Level Wind: Mechanical Reversing Screw

Boom Extension Length: 20″

Dynamometer: Rugged Controls RL-05

Display: Rugged Controls RPC-80X

Axle Type: Torflex Axle

Axle Capacity: 7,000 lbs.

OPTIONS:

Wireless Remote with Live Line Pull Readout Option

Galvanized Finish

Color: White, Red, Black, Safety Yellow

Duct Rollers
