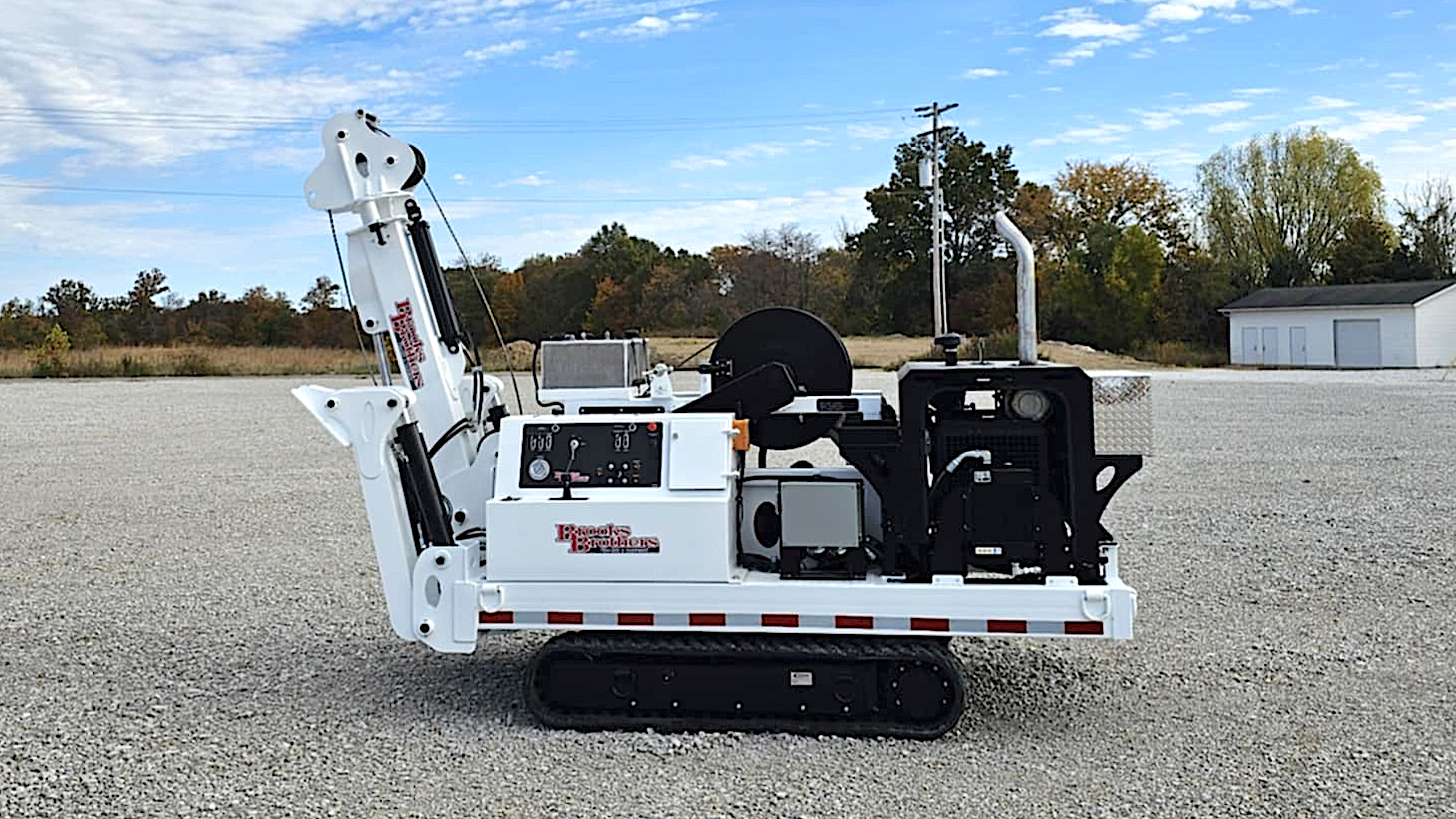

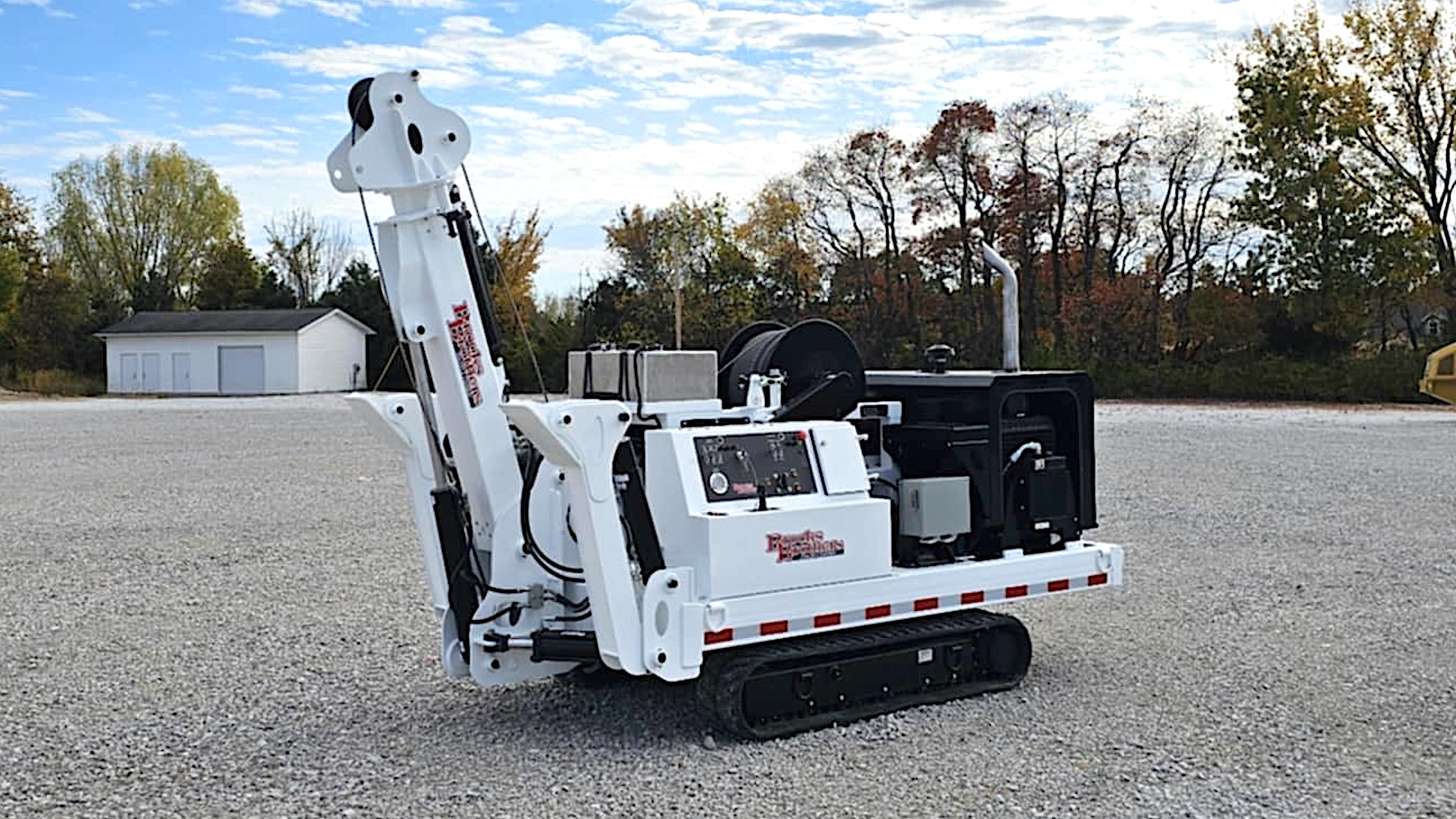

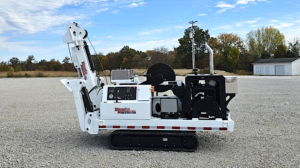

UP-7500 Underground Puller Tracks
DIMENSIONS:
Approx. 151″ Overall Length Approx. 63″ Overall Width
Approx. 113″ Overall Height (To top of boom)
UNIT PERFORMANCE:
RATED LINE PULL: 7,500 lb. Dedicated Underground Puller
*2,600 FT. 3/8” HD 3 Strand Anti-rotation cable AUTO – LEVELWIND (LEAD SCREW DESIGN)
SELF SUPPORTED BOOM WITH HYDRAULIC 20” EXTENSION – TO CENTER OVER DUCT WORK HYDRAULICALLY ACTUATED: UP DOWN, LEFT RIGHT, EXTENDING OUT AND IN
FAIRLEAD AT END OF BOOM – with/Dual Nylatron Rollers
*Includes live swivel attached to cable
*Boom configured to accept the manhole Jib Assembly
NO STABILIZER JACK ON BOOM REQUIRED
Fully Hydraulic – Independently controlled rear outriggers
POWER TRAIN / HYDRAULICS (Puller):
35.5 Yanmar TIER 4 FINAL DIESEL ENGINE
Electronic Display
FULLY HYDROSTATIC DRIVE PUMP
HYDRAULIC DRIVEN 10” TWIN CAPSTAN BULLWHEELS – CONSTANT PULLING CAPACITY OF 7,500 LBS. AVAILABLE
ELECTRONIC DYNAMOMETER:
TO METER ACTUAL PULLING TENSIONS, PULLING SPEED, & DISTANCE WITH USB PORT TO TRANSFER PULLING DATA
DIGITAL READ OUT FOR ALL FUNCTIONS
OPERATOR / SAFETY FEATURES:
ALL UNIT OPERATOR CONTROLS ARE LOCATED AT THE OPERATOR’S STATION, AT REAR CURBSIDE OF
MACHINE. Includes 25′ Cable Warning indicator, and load limit indicator
(2) GROUNDING LUGS
*Boom Tip Swivel: 30 degrees in both directions
CTS-78R Chermack Rubber Tracks Carrier:
-Forged idlers, spring loaded forged tensioning idler and through hardened drive sprockets.
-Nachi 3B Compact Hydraulic with 45.2:1 gear ratio, open loop planetary drive motors with two speeds and internal parking brake.
*Wireless Remote Control:
-Joystick Track Controls w/Sensitivity and High/Low Modes
-Pay in/Pay Out Control w/Speed adjustment
-Emergency Stop Button
-Digital Display for tensiometer reading (load and cable footage)
MAIN FRAME:
7” X 3” TUBULAR STEEL MAIN FRAME
7” X 3” TUBULAR STEEL CROSSMEMBERS AT FRONT, REAR OF BED
Unit is Completely Sandblasted
Seams are Sealed with Paintable Caulk
Rust Prohibitive Two-Part Epoxy Polyamide Primer Two-Part Acrylic Polyurethane Topcoats
All Attachments Painted before Assembly and Installed with Serviceable Fasteners
