UP 10000 Man Hole Puller

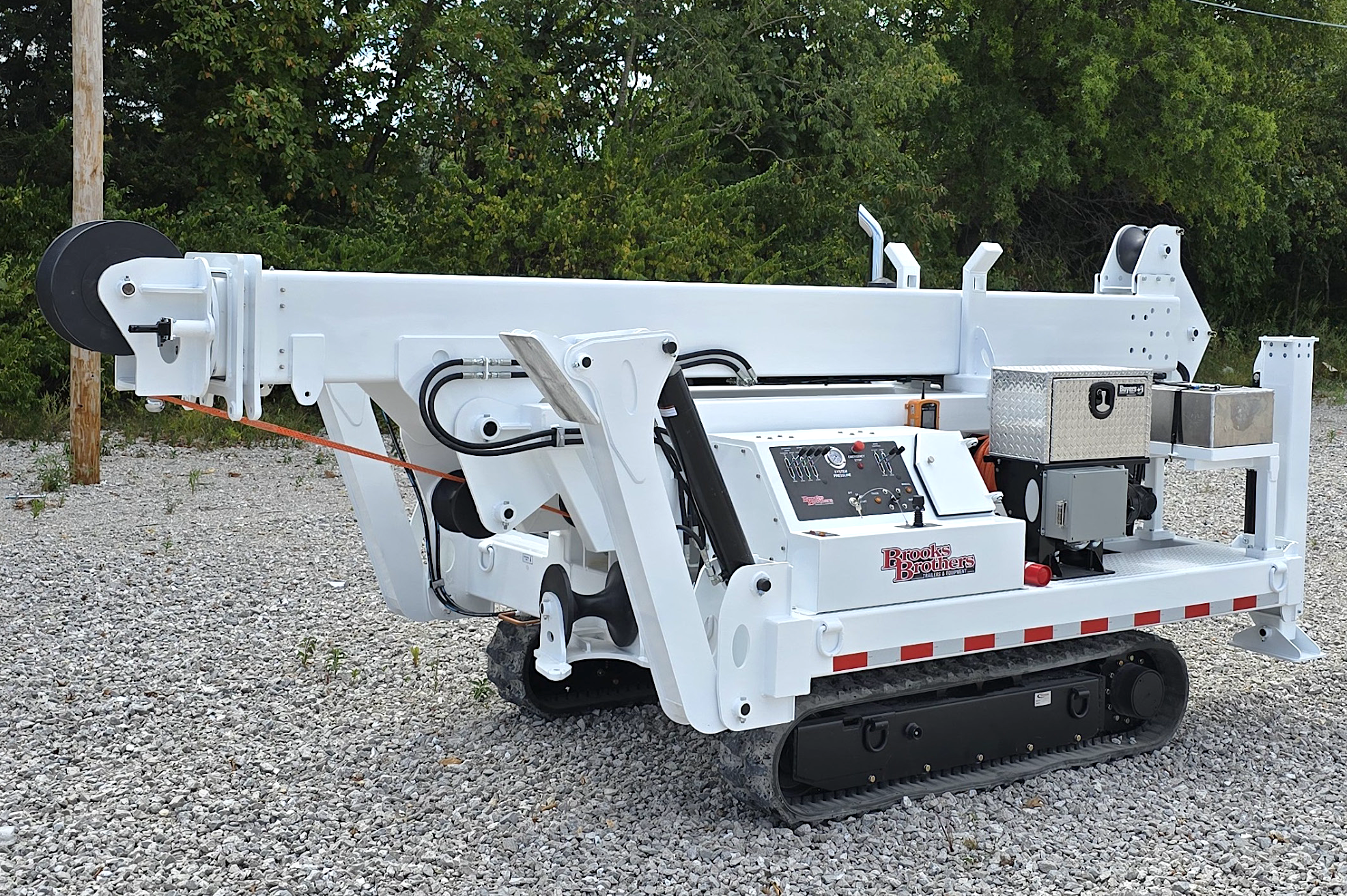

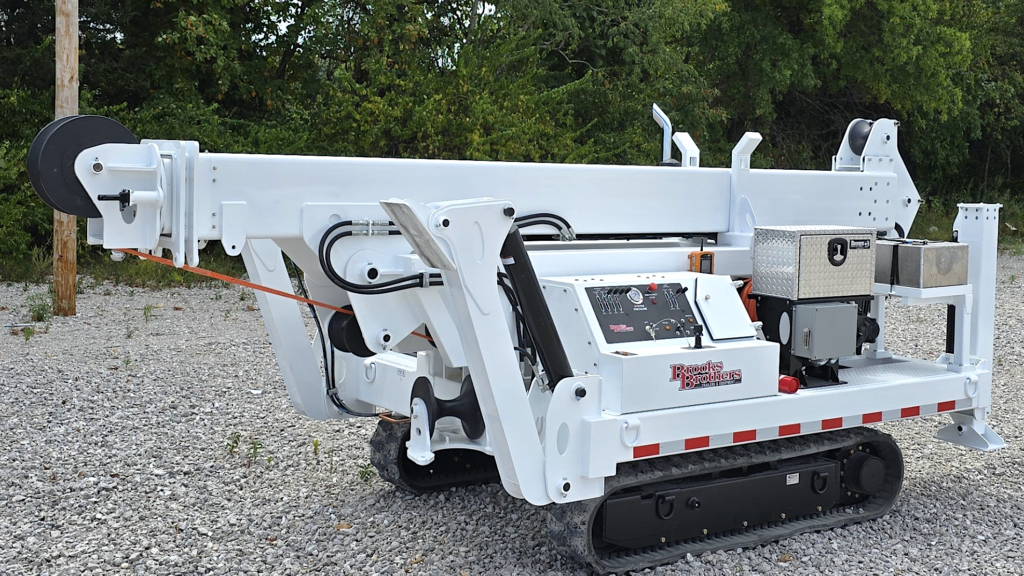

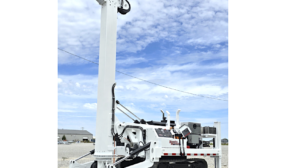

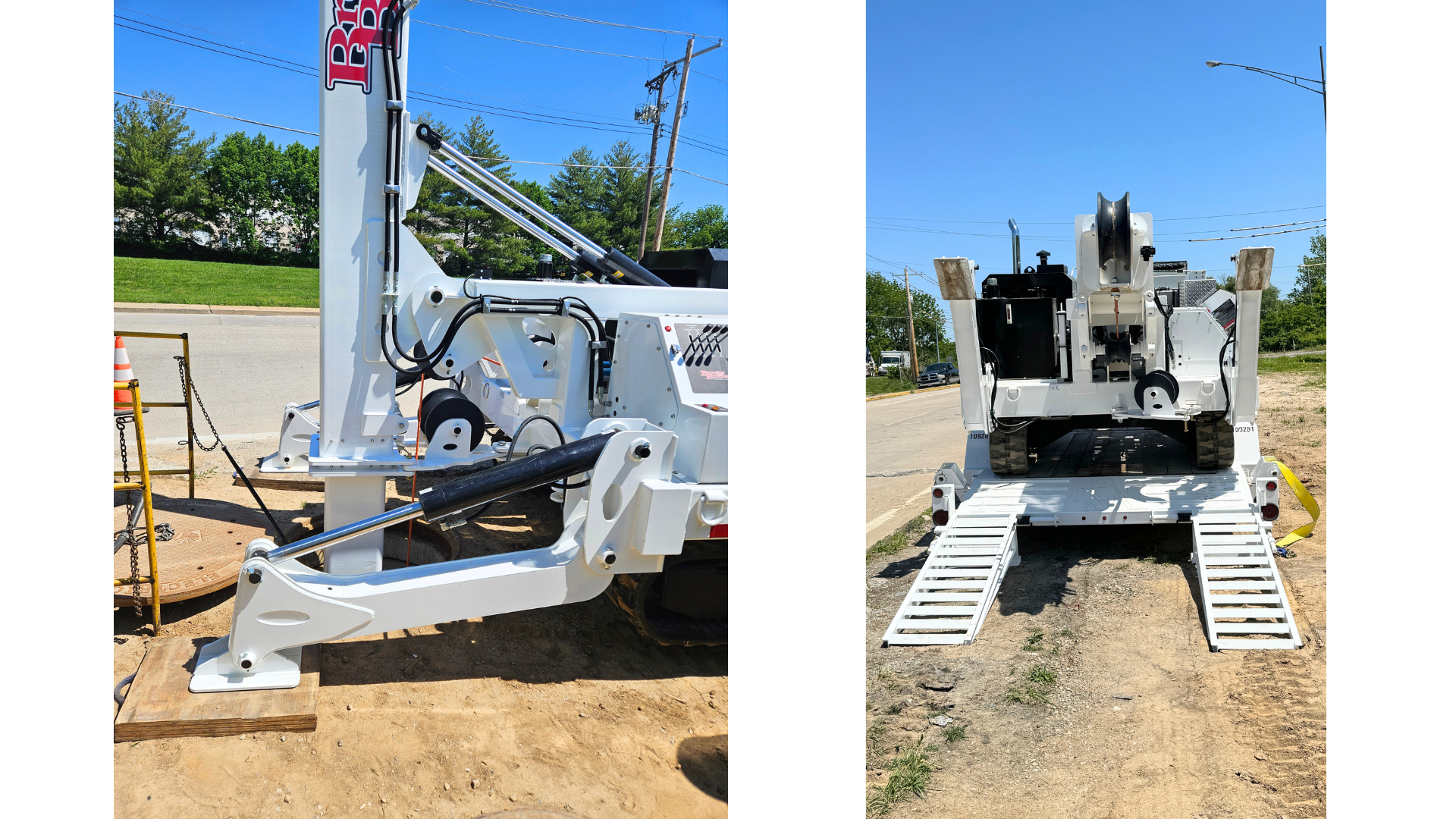

UP 10000 Underground Man Hole Puller

UNIT PERFORMANCE:

Rated Line Pull: 10,000 lbs.

Dimensions:

Overall Length – 136″L

Overall Width – 79.5″ track Width

FEATURES:

1,000′ of 1/2″ Saturn 12 Synthetic Rope

Level Wind with Reversing Lead Screw Design

Nachi 4DHT Compact Hydraulic Planetary Drive Motors w/Two Speeds and Internal Parking Brake

Bridgestone Rubber Tracks

Hydraulically Actuated 2-Axis Boom (Up, Down, Retract, and Extend)

Hydrostatic Controlled Pay-in and Pay-out (No gear box or transmission)

47.6 HP Yanmar Tier 4 Final

Easy to Use Dynamometer that measures Distance and Line Tension

Dynamometer Equipped with USB Output to Record Live Pulling Data

Compact Design

Stand-Beside Ground Controls

(2) Grounding Lugs

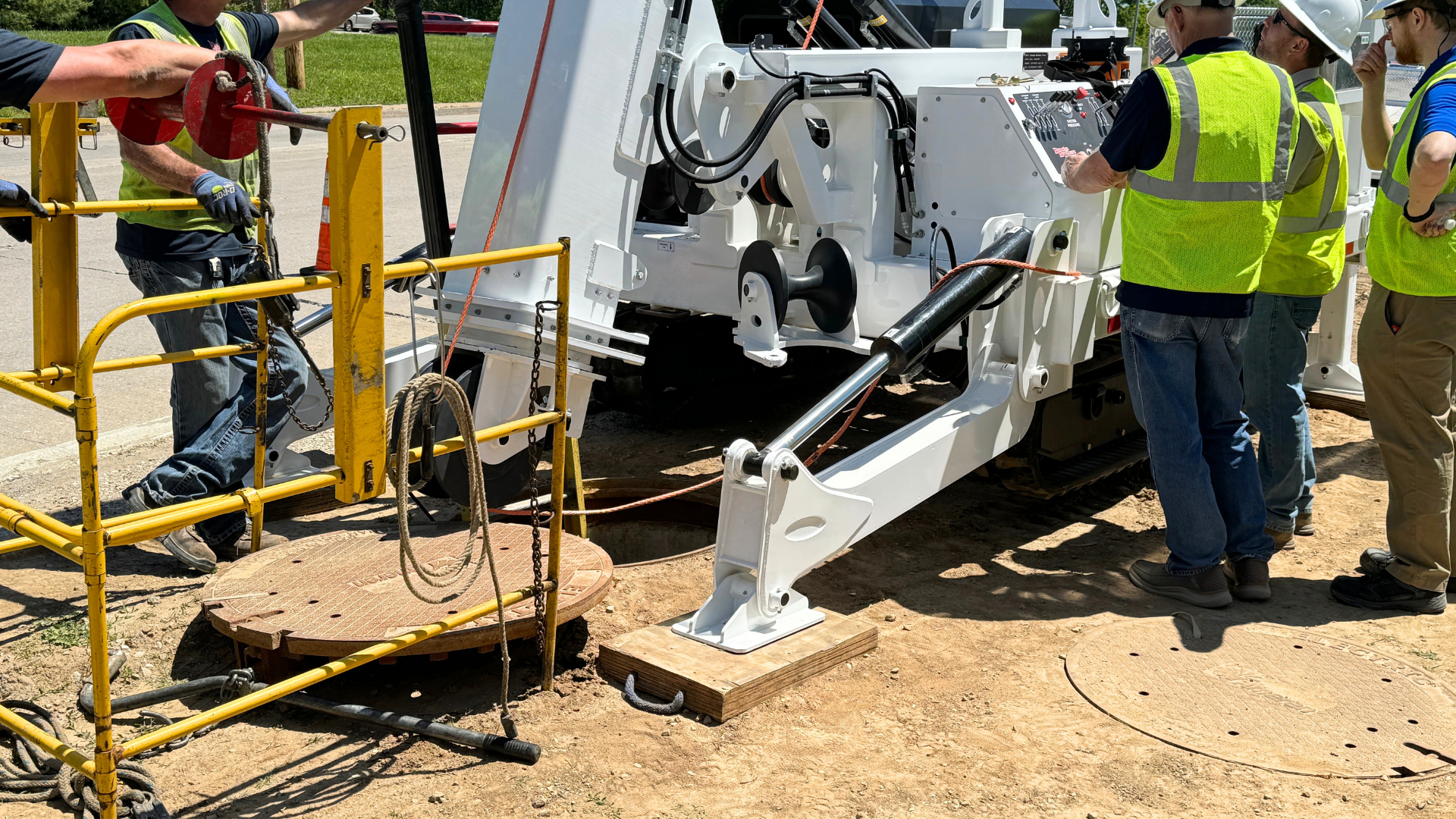

(2) Hydraulic Outriggers

(2) Hydraulic Stabilizers

Tool Box

Wireless Remote with Live Line Pull Readout

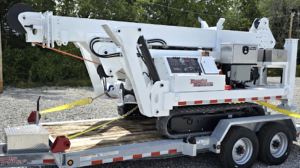

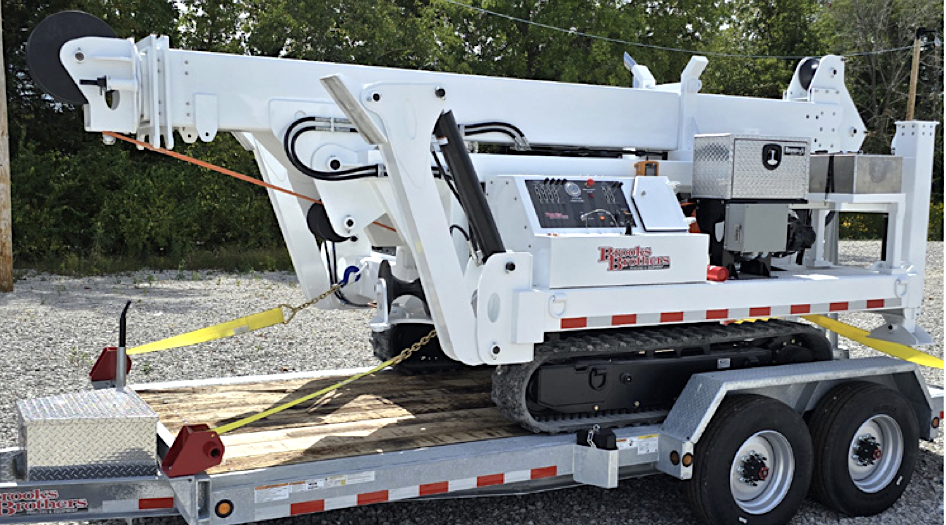

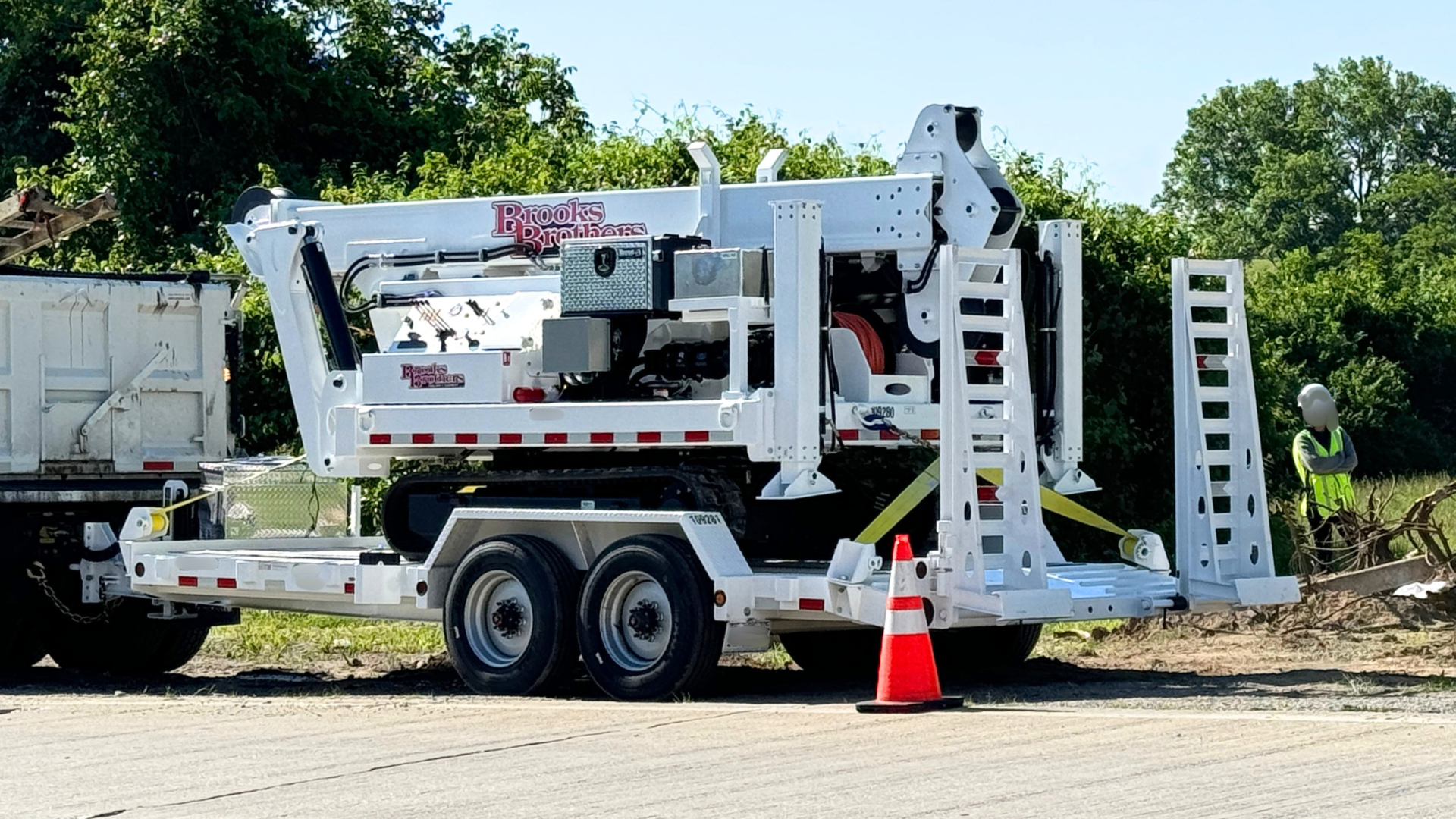

16′ Low Profile Transport Trailer Included

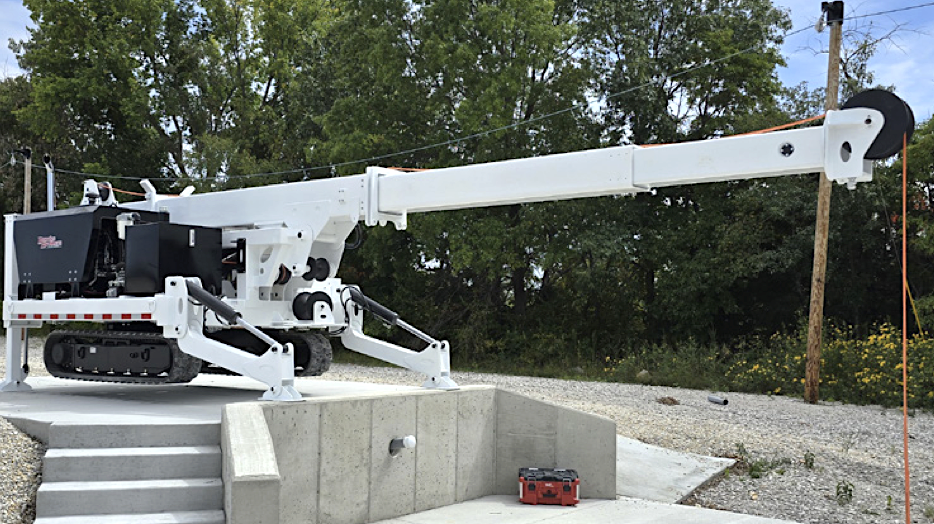

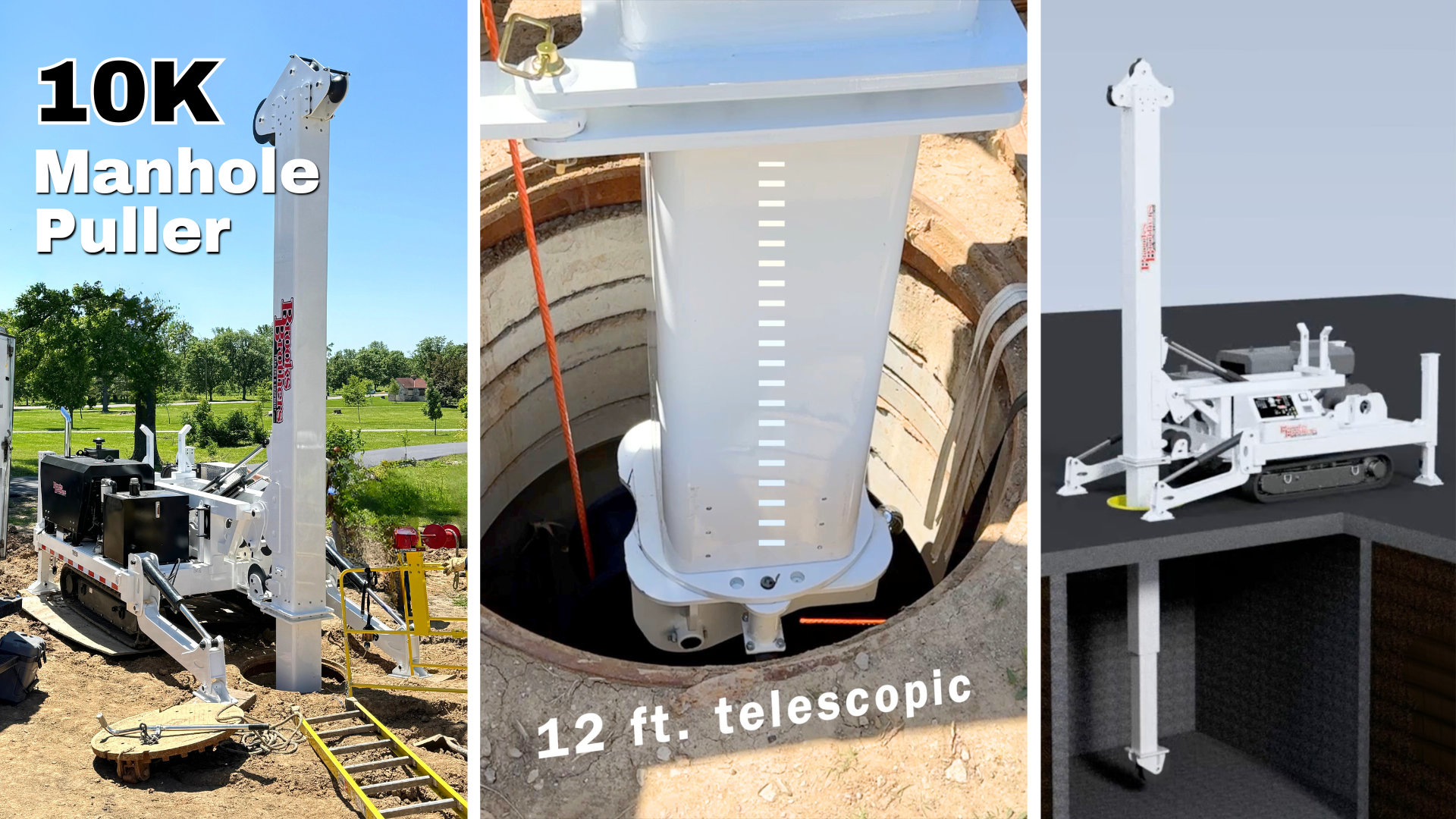

12′ Man Hole Boom Extension w/30 deg Swiveling Head

Fully Supported Boom, No Rigging Required

16″ Dia Nylatron Roller on Boom Head

Can Route Cable 5 different Ways for Diverse Underground Applications

SPECIFICATIONS:

Level Wind: Mechanical Reversing Screw

Boom Movement: Up, Down, Retract, and Extend

Boom Extension Length: 144″

Dynamometer: Rugged Controls RL-05

Display: Rugged Controls RPC-80X

Roller Construction: Nylatron

OPTIONS:

Color: White, Red, Black, Safety Yellow
